Stellerite

Ca4(Si28Al8)O72 · 28H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ste
Discovered
1909
Also known as
  • Stelleriet

Where it forms, where it's found

Geological setting

Cavities and fracture surfaces in hydrothermally altered volcanic and metamorphic rocks.

Type locality
Medny Island
  1. Commander Islands (Komandorskie Islands)
  2. Kamchatka Krai
  3. Russia

54.8450°, 167.4811°

188recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless to white · pink · orange · yellow · salmon · green · brown
Cleavage
Perfect

on (010)

Density
2.13 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.4848 – 1.4979
Surface relief
Low
Principal indices
nα 1.4848 · nβ 1.4864 – 1.4964 · nγ 1.4979
Dispersion
none
Extinction
X = a; Y = c; Z = b.
Michel-Lévy diagramhighlighted lineδ = 0.0131
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]131 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation131 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#54
Cell parameters
a = 13.599(4) Å · b = 18.222(4) Å · c = 17.863(3) Å
Ratio a:b:c
1 : 1.340 : 1.314
Z
8
Morphology

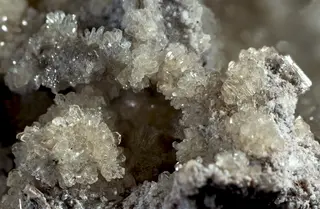

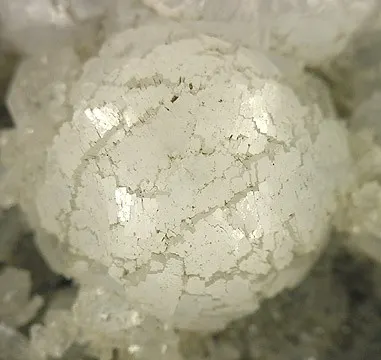

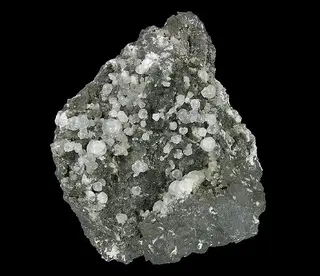

Commonly in spheres of radiating crystals. Individual crystal are thin to thick tabular, brick-shaped or with roof-shaped crystal terminations.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen10015.9991599.900
56.75%
14SiSiliconSilicon2828.085786.380
27.90%
13AlAluminiumAluminium826.982215.856
7.66%
20CaCalciumCalcium440.078160.312
5.69%
1HHydrogenHydrogen561.00856.448
2.00%
Total2818.896100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Mn
  • Mg
  • Sr
  • Ba
  • Na
  • K

Synonyms

  • Stelleriet

In other languages

French
Stellérite
German
Stellerit
Spanish
Stellerita
Italian
stellerite
Japanese
ステラ沸石
Chinese
淡紅沸石 · 淡红沸石

Classification

Strunz
10th ed.

9.GE.15

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GEChains of T10O20 TetrahedraGroup
  • 9.GE.15StelleriteSpecies
Dana
8th ed.

77.01.04.04

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.04Heulandite and related speciesGroup
  • 77.01.04.04StelleriteSpecies
CIM

16.9.30

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.9Aluminosilicates of CaGroup
  • 16.9.30StelleriteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1909Morozewicz, J. (1909) Uber Stellerit, ein neues Zeolithmineral. Bulletin International de L'Academie des Sciences de Cracoviae. Classe des Sciences Mathematiques et Naturelles, pp 344–359.
  2. 1939Pabst, Adolf (1939) The relation of stellerite and epidesmine to stilbite. Mineralogical Magazine and Journal of the Mineralogical Society, 25 (164) 271-276 doi:10.1180/minmag.1939.025.164.06 DOI: 10.1180/minmag.1939.025.164.06
  3. 1967Erd, R.C., Eberlein, G.D., Pabst, A. (1967) Stellerite, a valid orthorhombic end member of a continuous series with monoclinic stilbite. Geological Society of America Annual Meeting, Abstracts with Programs, 58-59.
  4. 1973Galli, E., Passaglia, E. (1973) Stellerite from Villanova Monteleone, Sardinia. Lithos, 6 (1) 83-89 doi:10.1016/0024-4937(73)90081-9DOI: 10.1016/0024-4937(73)90081-9
  5. 1975Galli, Ermanno, Alberti, Alberto (1975) The crystal structure of stellerite. Bulletin de Minéralogie, 98 (1) 11-18 doi:10.3406/bulmi.1975.6952DOI: 10.3406/bulmi.1975.6952
