Sterlinghillite

Mn2+3(AsO4)2 · 3H2O
IMA status
  • Approved
IMA symbol
Slg
Discovered
1980
IMA approved
1980
Also known as
  • IMA1980-007
  • Sterlinghilliet

Where it forms, where it's found

Geological setting

As a secondary mineral on fracture surfaces traversing franklinite-calcite ore in a Precambrian Zn-Mn-Fe orebody.

Type locality
Sterling Mine
  1. Sterling Hill
  2. Ogdensburg
  3. Sussex County
  4. New Jersey
  5. USA

41.0836°, -74.6047°

4recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · pale pinkish white · also very pale pink.

Usually white

Streak
White
Tenacity
brittle
Cleavage

Should show cleavage of ludlamite group minerals, but no cleavage was mentioned and the material is extremely rare.

Fracture
Splintery
Density
2.94 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.656 – 1.671
Surface relief
High
Principal indices
nα 1.656 · nγ 1.671
Birefringence
0.015
Pleochroism
Non-pleochroic
UV response
Not known to be fluorescent in UV
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 12.39(2) Å · b = 11.23(2) Å · c = 11.62(2) Å
Cell angles
α = 90 ° · β = 98.45(5) ° · γ = 90 °
Ratio a:b:c
1 : 0.906 : 0.938
Morphology

Acicular crystals or mound-like botryoids showing a non-radial fibrous texture

Type-locality form

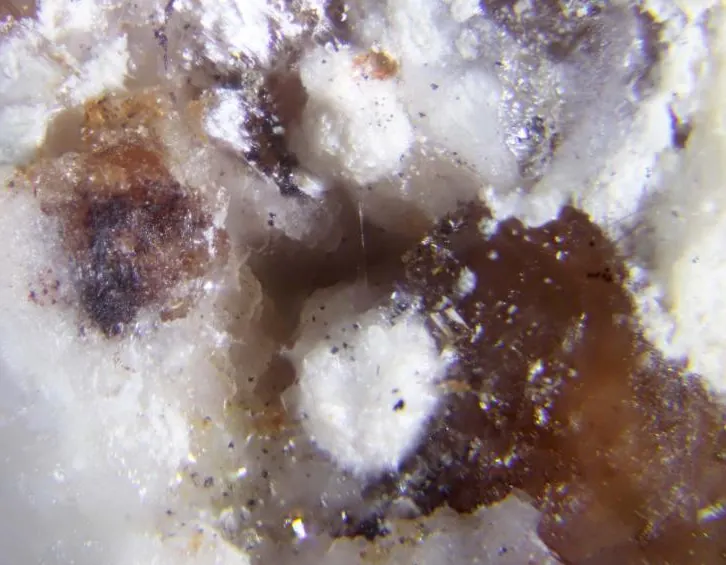

Tiny pinkish white spherules or white acicular crystals.

Comment

Space group and crystal structure unknown. Unit cell (tentative) from Matsubara et al. (2000), based on indexed powder diffraction pattern.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1115.999175.989
35.43%
25MnManganeseManganese354.938164.814
33.18%
33AsArsenicArsenic274.922149.844
30.17%
1HHydrogenHydrogen61.0086.048
1.22%
Total496.695100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1980-007
  • Sterlinghilliet

In other languages

German
IMA 1980-007 · Sterlinghillit
Italian
Sterlinghillite

Classification

Strunz
10th ed.

8.CD.25

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CDWith only medium-sized cations, RO4:H2O = 1:2Group
  • 8.CD.25SterlinghilliteSpecies
Dana
8th ed.

40.03.05.03

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.03A3(XO4)2·xH2OType
  • 40.03.05Ludlamite GroupGroup
  • 40.03.05.03SterlinghilliteSpecies
CIM

20.8.9

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.8Arsenates of MnGroup
  • 20.8.9SterlinghilliteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1981Dunn, Pete J. (1981) Sterlinghillite, a new hydrated manganese arsenate mineral from Ogdensburg, New Jersey. American Mineralogist, 66 (1-2) 182-184
  2. 1995Dunn, Pete J. (1995) Franklin and Sterling Hill, New Jersey: The world's most magnificent mineral deposits Vol. 5. The Franklin-Ogdensburg Mineralogical Society.
  3. 2000Matsubara, S., Miyawaki, R., Mouri, T., Kitamine, M. (2000) Sterlinghillite, a rare manganese arsenate, from the Gozaisho mine, Fukushima Prefecture, Japan. Bulletin of the National Museum of Nature and Science Series C, 26 (1-2). 1-7
  4. 2005(2005) Sterlinghillite. Handbook of Mineralogy. Mineralogical Society of America
