Tuperssuatsiaite

Na2(Fe3+,Mn2+)3Si8O20(OH)2 · 4H2O
IMA status
  • Approved
IMA symbol
Tup
Discovered
1968
IMA approved
1984
Also known as
  • IMA1984-002
  • Tuperssuatsiaiet
  • Tuperssvatsiait
  • +2 more

Where it forms, where it's found

Geological setting

Alkaline intrusion.

Type locality
Tuperssuatsiat Bay
  1. Tunulliarfik Fjord
  2. Ilímaussaq complex
  3. Kujalleq
  4. Greenland

60.9222°, -45.8364°

7recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
Golden-yellow · reddish brown · brown · dark brown · orange-yellow · green

From Aris Quarry, Namibia crystals may be colour zoned. Some green crystals turn brown after collection and this may be due to a coupled dehydration-oxidation mechanism.

Streak
Brownish yellow
Cleavage
Distinct/Good

Good on the (100)

Fracture
Conchoidal
Density
2.465 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 103° · 2V calc = 78°
Refractive index
1.5388 – 1.595
Surface relief
Moderate
Principal indices
nα 1.5388 · nβ 1.5596 · nγ 1.595
Pleochroism
Weak

X = colorless; Y = colorless to light reddish brown; Z = pale yellowish brown to dark reddish brown.

Dispersion
none
Extinction
X ∧ a = 20°-22° (in the obtuse angle β); Y = b; Z ∧ c = 5°-7°.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0562
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]562 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation562 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#11
Cell parameters
a = 13.72 Å · b = 18 Å · c = 4.82 Å
Cell angles
β = 104.28 °
Ratio a:b:c
1 : 1.312 : 0.351
Unit cell volume
1280.91 ų
Z
2
Morphology

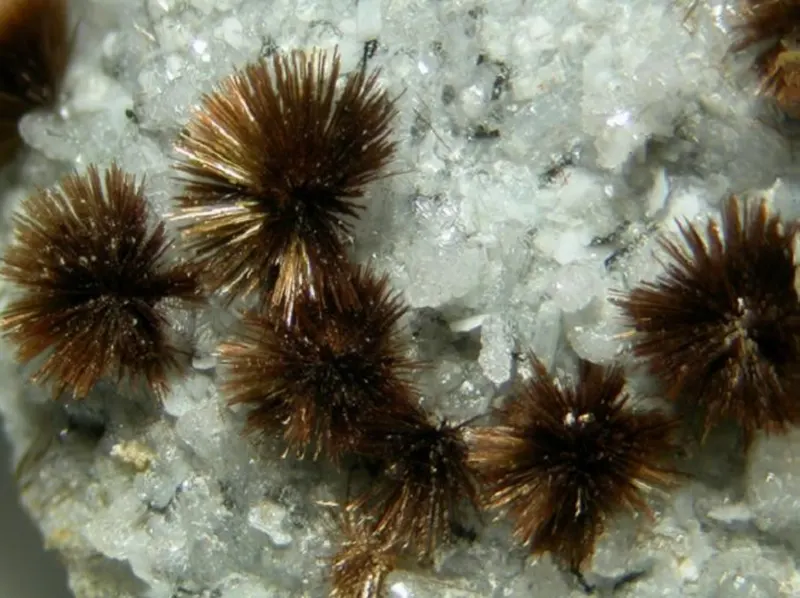

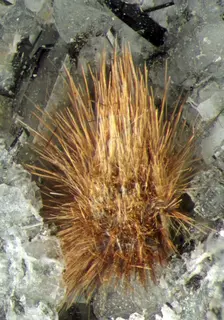

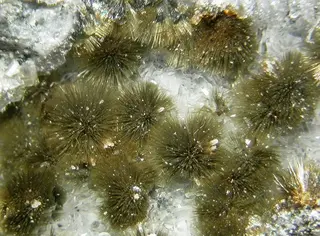

Acicular or ruler-shaped crystals up to 1 cm, forming fan-shaped aggregates or rosettes.

Twinning

Common. With (100) as both the twin and the composition plane.

Type-locality form

As cavity filling in late veins, forming mm- to cm-sized red-brown fan shaped aggregates or rosettes of fine fibres.

Comment

Point Group: 2/m or m: Space Group: C2/c or Cc:

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2615.999415.974
40.42%
14SiSiliconSilicon828.085224.680
21.83%
26FeIronIron355.845167.535
16.28%
25MnManganeseManganese354.938164.814
16.02%
11NaSodiumSodium222.99045.980
4.47%
1HHydrogenHydrogen101.00810.080
0.98%
Total1029.063100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • K
  • Mg
  • Ca
  • Mn
  • Zn
  • Al
  • Ti
  • F
  • Cl

Synonyms

  • IMA1984-002
  • Tuperssuatsiaiet
  • Tuperssvatsiait
  • Tuperssvatsiaita
  • Tuperssvatsiaite

In other languages

German
IMA 1984-002 · Tuperssuatsiait
Spanish
Tuperssuatsiaíta
Italian
Tuperssuatsiaite

Classification

Strunz
10th ed.

9.EE.20

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.20TuperssuatsiaiteSpecies
Dana
8th ed.

74.03.1a.02

  • 74Phyllosilicates Modulated LayersClass
  • 74.03Modulated Layers with joined stripsType
  • 74.03.1a— unnamed intermediate level —Group
  • 74.03.1a.02TuperssuatsiaiteSpecies
CIM

14.20.5

  • 14Silicates not Containing AluminumClass
  • 14.20Silicates of Fe and alkali metalsGroup
  • 14.20.5TuperssuatsiaiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1984Karup-Møller, S., Petersen, O. V. (1984) Tuperssuatsiaite, a new mineral species from the Ilímaussaq intrusion in South Greenland. Neues Jahrbuch für Mineralogie - Monatshefte, 1984. 501-512
  2. 1985Dunn, Pete J., Ferraiolo, James A., Fleischer, Michael, Gobel, Volker, Grice, Joel D., Langley, Richard H., Shigley, James E., Vanko, David A., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (11-12) 1329-1335
  3. 1992Jambor, John L. (1992) New Mineral Names. American Mineralogist, 77 (11-12) 1305-1309
  4. 1992von Knorring, O., Petersen, O. V., Karup-Moeller, S., Leonardsen, E. S., Condliffe, E. (1992) Tuperssuatsiaite, from Aris phonolite, Windhoek, Namibia. Neues Jahrbuch für Mineralogie, Monatshefte, 1992. Stuttgart. 145-152
  5. 1998Horváth, László, Gault, Robert A., Tarassoff, Peter, Pfenninger-Horváth, Elsa (1998) Mineralogy of the Saint-Amable Sill, Varennes and Saint-Amable, Quebec. The Mineralogical Record, 29 (2) 83-118
