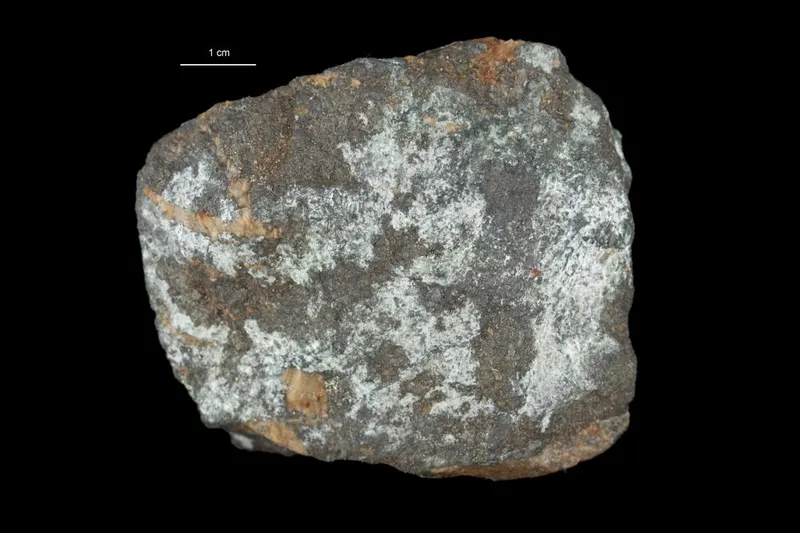

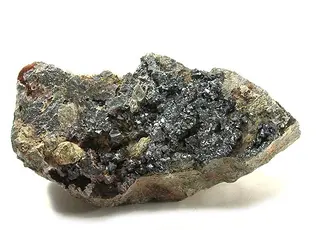

Ullmannite

NiSbS
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ull
Discovered
1843
Also known as
  • Antimon-nickel (of Beudant)
  • Antimonikel (of Beudant)
  • Antimonnickelglanz
  • +7 more

Where it forms, where it's found

Type locality
Storch und Schöneberg Mine
  1. Gosenbach
  2. Siegen
  3. Siegen-Wittgenstein
  4. Arnsberg
  5. North Rhine-Westphalia
  6. Germany
329recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Tin-white · steel grey
Streak
Black, grayish black
Tenacity
brittle
Cleavage
Perfect

Perfect on (001)

Fracture
Irregular/Uneven
Density
6.65 g/cm³

Optical

Optical type
Isotropic
Optical colour
White
Anisotropism
Occasionally weakly anisotropic
Tropism
Anisotropic
Reflectance R%
(52.0) 400, (51.0) 420, (50.0) 440, (49.0) 460, (48.2) 480, (47.4) 500, (46.7) 520, (46.1) 540, (45.7) 560, (45.5) 580, (45.5) 600, (45.6) 620, (46.0) 640, (46.4) 660, (47.0) 680, (47.6) 700
Reflected-light panel
47.5 %isotropic · single curve
Specimen sRGB 238, 167, 98
White reference100 % reflector under same lamp
Anisotropism
Occasionally weakly anisotropic
Reflected colour
White

Crystallography

Crystal system
Isometric
Space group
#198
Cell parameters
a = 5.91(2) Å
Z
4
Morphology

Cubes

Comment

Arsenian ullmannite has space group P1.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony1121.760121.760
57.29%
28NiNickelNickel158.69358.693
27.62%
16SSulfurSulfur132.06032.060
15.09%
Total212.513100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Co
  • As
  • Bi

Synonyms

  • Antimon-nickel (of Beudant)
  • Antimonikel (of Beudant)
  • Antimonnickelglanz
  • Antimonnickelkies
  • Hartmannit
  • Hartmannita
  • Hartmannite
  • Nickel-stibine
  • Nickelspiesglaserz
  • Nickelspießglanzerz

In other languages

French
Ullmannite
German
Antimonnickelglanz · Kallilith · Nickelantimonglanz · Nickelantimonkies · Nickelspießglaserz · Ullmannit
Spanish
Ullmannita
Italian
Ullmannite
Chinese
輝銻鎳礦 · 辉锑镍矿
Russian
Ульманнит

Classification

Strunz
10th ed.

2.EB.25

  • 2Sulfides and SulfosaltsClass
  • 2.EMetal Sulfides, M: S <= 1:2Division
  • 2.EBM:S = 1:2, with Fe, Co, Ni, PGE, etc.Group
  • 2.EB.25UllmanniteSpecies
Dana
8th ed.

02.12.03.03

  • 02SulfidesClass
  • 02.12AmBnXp, with (m+n):p = 1:2Type
  • 02.12.03Cobaltite Group (Cubic or pseudocubic crystals)Group
  • 02.12.03.03UllmanniteSpecies
CIM

3.11.38

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.11Sulphides etc. of NiGroup
  • 3.11.38UllmanniteSpecies

Group, growth & confusion

In the same group
17 members
Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1891Miers (1891) Mineralogical Magazine: 9: 211.
  2. 1921Mieleitner (1921) Zeitschrift für Kristallographie: 56: 105.
  3. 1927Russell, Arthur (1927) Notice of an occurrence of niccolite and ullmannite at the Settlingstones Mine, Fourstones, Northumberland; and of serpierite at Ross Island Mine, Killarney, Co. Kerry, Ireland. Mineralogical Magazine and Journal of the Mineralogical Society, 21 (119) 383-387 doi:10.1180/minmag.1927.021.119.03 DOI: 10.1180/minmag.1927.021.119.03
  4. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  5. 1957Takeuchi, Y. (1957) The absolute structure of ullmannite, NiSbS. Mineralogical Journal (Sapporo): 2: 90-102.
