Hauchecornite

Ni9BiSbS8
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hau
Discovered
1892
Also known as
  • Hauchecorniet

Where it forms, where it's found

Geological setting

Hydrothermal deposits

Type locality
Friedrich Mine
  1. Steckenstein
  2. Mittelhof
  3. Wissen
  4. Altenkirchen
  5. Rhineland-Palatinate
  6. Germany

50.7876°, 7.8019°

29recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Light bronze yellow

Tarnishes darker

Streak
Gray-black
Cleavage
None Observed
Fracture
Conchoidal
Density
6.35 g/cm³

Optical

Pleochroism
Weak

Very weak in air, more distinct in oil

Anisotropism
Distinct
Tropism
Anisotropic
Reflectance R%
(35.8,37.9) 400, (38.6,40.7) 440, (41.4,43.8) 480, (44.0,46.9) 520, (46.3,49.3) 560, (48.2,51.0) 600, (49.7,52.3) 640, (51.0,53.4) 680, (51.5,53.9) 700
Reflected-light panel
45.2 %anisotropic · dual curve
Specimen sRGB 247, 166, 83
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Distinct

Crystallography

Crystal system
Tetragonal
Space group
P4/mmm
Cell parameters
a = 7.300(3) Å · c = 5.402(2) Å
Z
1

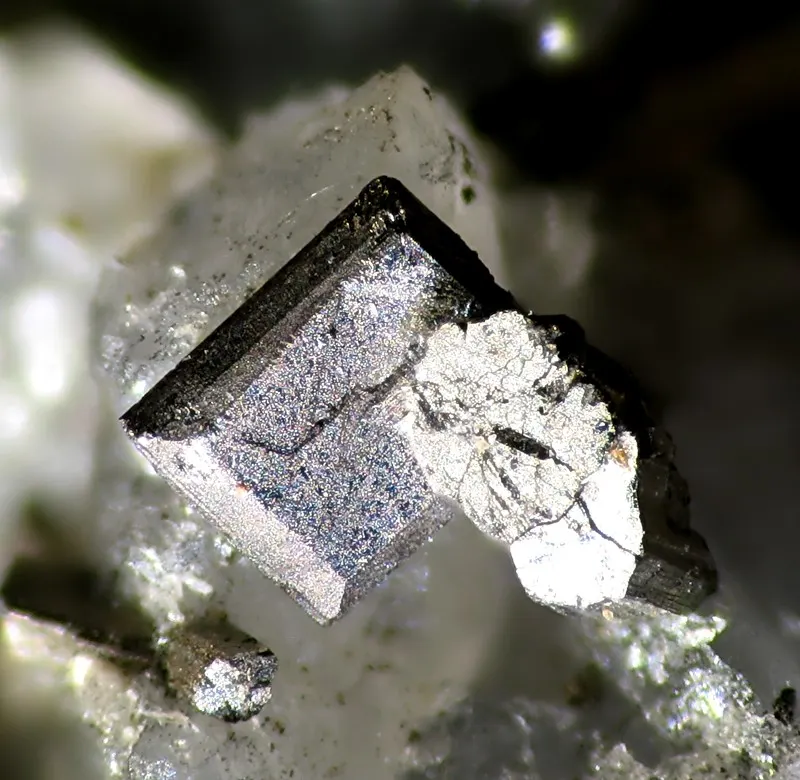

Morphology

Tabular, short prismatic, dipyramidal. c(001), a(100), m(110), e(101), s(112), o(111), and vicinals.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
28NiNickelNickel958.693528.237
47.36%
16SSulfurSulfur832.060256.480
22.99%
83BiBismuthBismuth1208.980208.980
18.73%
51SbAntimonyAntimony1121.760121.760
10.92%
Total1115.457100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Co
  • Fe
  • As

Synonyms

  • Hauchecorniet

In other languages

German
Hauchecornit · IMA 1975-006a
Italian
Hauchecornite

Classification

Strunz
10th ed.

2.BB.10

  • 2Sulfides and SulfosaltsClass
  • 2.BMetal Sulfides, M: S > 1: 1 (mainly 2: 1)Division
  • 2.BBWith NiGroup
  • 2.BB.10HauchecorniteSpecies
Dana
8th ed.

03.02.05.01

  • 03SulfosaltsClass
  • 03.02ø = 4Type
  • 03.02.05Hauchecornite Group, Complex Ni sulfides (Tetragonal: P4/nnn or I4/mmm)Group
  • 03.02.05.01HauchecorniteSpecies
CIM

5.8.15

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.8Sulpharsenites etc. of Mn, Fe, Co and NiGroup
  • 5.8.15HauchecorniteSpecies

Group, growth & confusion

In the same group
6 members
Often grow together
9 minerals

Literature, links & citation

Citations
  1. 1888Scheibe, R. (1888) Protokoll der sitzung vom 15 August 1888. Zeitschrift der Deutschen Geologischen Gesellschaft: 40: 610-618.
  2. 1893Scheibe, R. (1893) Ueber Hauchecornit, ein Nickelwismuthsulfid von der Grube Friedrich. Jahrbuch der Königlich Preussischen Geologischen Landesanstalt und Bergakademie zu Berlin für das Jahr 1891: 12: 91-125.
  3. 1950Peacock, M. A. (1950) Hauchecornite. American Mineralogist, 35 (5-6) 440-446
  4. 1972Gait, R. L., Harris, D. C. (1972) Hauchecornite - antimonian, arsenian and tellurian varieties. The Canadian Mineralogist, 11 (4) 819-825
  5. 1974Kocman, V., Nuffield, E.W. (1974) The crystal structure of antimonian hauchecornite from Westphalia. The Canadian Mineralogist: 12: 269-274.
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Hauchecornite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/hauchecornite-1829},
  note      = {Accessed 2026-05-11}
}
