Vanadiocarpholite

Mn2+V3+AlSi2O6(OH)4
IMA status
  • Approved
IMA symbol
Vcar
IMA approved
2003
Also known as
  • IMA2003-055
  • Vanadiocarpholiet

Where it forms, where it's found

Geological setting

In silicified wood in Mn-ore-bearing radiolarian cherts.

Type locality
Molinello Mine
  1. Ne
  2. Genoa
  3. Liguria
  4. Italy

44.3453°, 9.4589°

3recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
Pale-straw yellow · honey-yellow to brown
Streak
Nearly white
Tenacity
brittle
Cleavage
Perfect

(010)

Density
3.10 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 85°
Refractive index
1.684 – 1.7
Surface relief
High
Principal indices
nα 1.684 · nβ 1.691 · nγ 1.700
Pleochroism
Visible

α = yellow-brown and γ = yellow-pinkish

UV response
Not fluorescent
Notes

Negative elongation. β is calculated.

Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#47
Cell parameters
a = 13.830(2) Å · b = 20.681(3) Å · c = 5.188(1) Å
Ratio a:b:c
1 : 1.495 : 0.375
Unit cell volume
1483.9 ų
Z
8
Morphology

Prismatic to acicular crystals.

Twinning

Not observed

Parting
Not observed
Type-locality form

Veinlets and radiating aggregates of strongly elongated, prismatic to acicular crystals up to about 0.28 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
45.32%
14SiSiliconSilicon228.08556.170
15.91%
25MnManganeseManganese154.93854.938
15.56%
23VVanadiumVanadium150.94250.942
14.43%
13AlAluminiumAluminium126.98226.982
7.64%
1HHydrogenHydrogen41.0084.032
1.14%
Total353.054100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2003-055
  • Vanadiocarpholiet

In other languages

German
IMA 2003-055 · Vanadiokarpholith
Spanish
vanadiocarfolita
Italian
Vanadiocarfolite · vanadiocarpholite

Classification

Strunz
10th ed.

9.DB.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.05VanadiocarpholiteSpecies

Group, growth & confusion

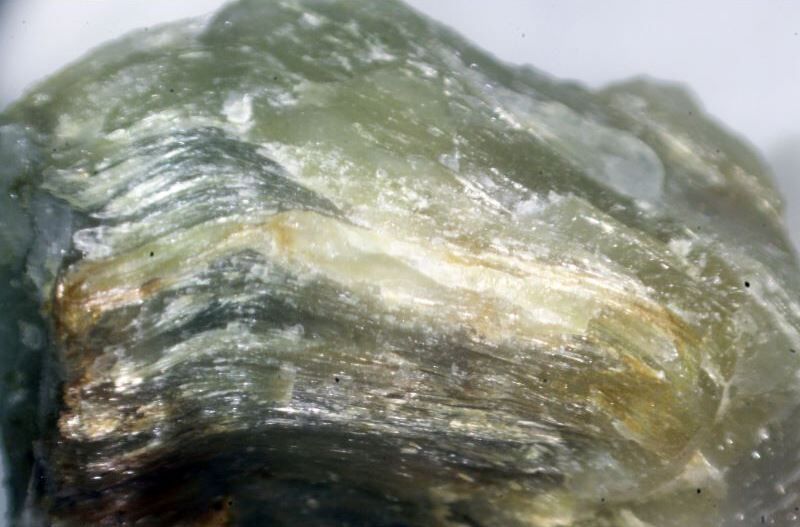

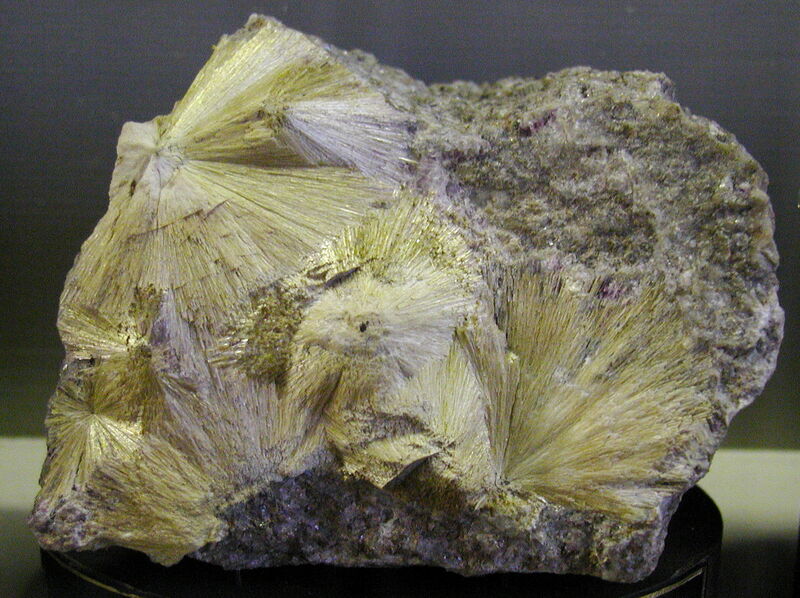

In the same group
4 members

Literature, links & citation

Citations
  1. Poster presented at the 5th International Conference on Mineralogy & Museums, Paris (France), Sept 5-8, 2004.
  2. 2005Basso, Riccardo, Cabella, Roberto, Lucchetti, Gabriella, Martinelli, Alberto, Palenzona, Andrea (2005) Vanadiocarpholite, Mn2+V3+Al(Si2O6)(OH)4, a new mineral from the Molinello mine, northern Apennines, Italy. European Journal of Mineralogy, 17 (3) 501-507 doi:10.1127/0935-1221/2005/0017-0501 DOI: 10.1127/0935-1221/2005/0017-0501
  3. 2021(2021) Vanadiocarpholite. Handbook of Mineralogy. Mineralogical Society of America
