Ferrocarpholite

Fe2+Al2Si2O6(OH)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Fcar
Discovered
1929
Also known as
  • Ferrocarpholiet
  • Ferrocarpholit
  • Ferrocarpholita

Where it forms, where it's found

Geological setting

Blastopsammitic schistose carpholite-quartzite.

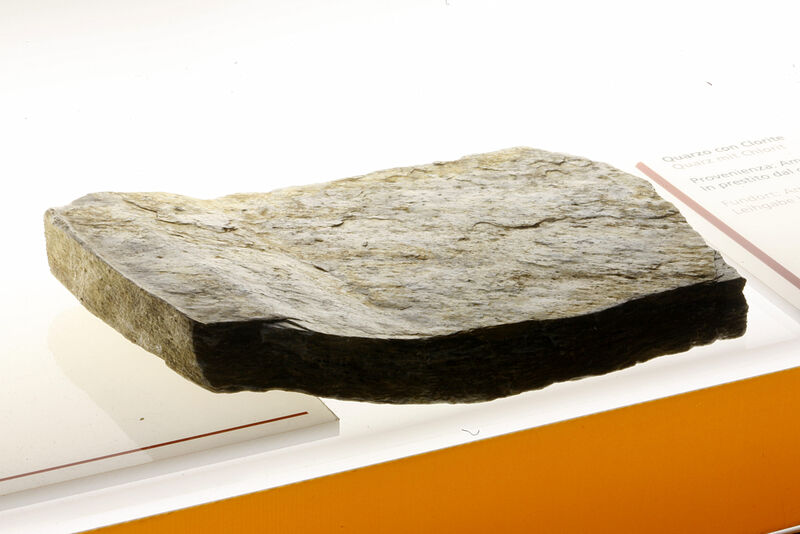

Sericite quartzite

Type locality
Tomata (Tomate)
  1. Morowali Regency
  2. Central Sulawesi Province
  3. Indonesia

-1.9981°, 120.9761°

12recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Dark green · bright green · grayish green · pale green

Colorless in thin section.

Cleavage
Perfect

Perfect on (010), indistinct on (110).

Density
3.04 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 49 – 61° · 2V calc = 56°
Refractive index
1.617 – 1.647
Surface relief
Moderate
Principal indices
nα 1.617 – 1.628 · nβ 1.633 – 1.644 · nγ 1.638 – 1.647
Birefringence
0.019
Pleochroism
Visible

X = yellowish to greenish; Y = colorless to yellowish; Z = pale bluish to bluish green.

Dispersion
none
Extinction
X = c; Y = b; Z = a.
Notes

Absorption: X > Y > Z.

Michel-Lévy diagramhighlighted lineδ = 0.0190
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]190 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation190 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#47
Cell parameters
a = 13.797(9) Å · b = 20.20(2) Å · c = 5.116(5) Å
Ratio a:b:c
1 : 1.464 : 0.371
Z
8
Morphology

Crystals prismatic, elongated along [001]. Forms include (010), (100) and (110).

Type-locality form

Dark green prismatic crystals in a cobble of vein-quartz.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
48.48%
14SiSiliconSilicon228.08556.170
17.02%
26FeIronIron155.84555.845
16.92%
13AlAluminiumAluminium226.98253.964
16.36%
1HHydrogenHydrogen41.0084.032
1.22%
Total330.001100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Mn

Synonyms

  • Ferrocarpholiet
  • Ferrocarpholit
  • Ferrocarpholita

In other languages

German
Ferrokarpholith
Italian
Ferrocarfolite · Ferrocarpholite

Classification

Strunz
10th ed.

9.DB.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.05FerrocarpholiteSpecies
Dana
8th ed.

65.01.05.02

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.05Carpholite groupGroup
  • 65.01.05.02FerrocarpholiteSpecies
CIM

16.19.11

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.19Aluminosilicates of Fe and MgGroup
  • 16.19.11FerrocarpholiteSpecies

Group, growth & confusion

In the same group
4 members
Often grow together
6 minerals

Literature, links & citation

Citations
  1. 1947de Roever, Willem-Paul (1947) Igneous and Matamorphic Rocks in Eastern Central Celebes, Geological Explorations in the Island of Celebes under the Leadership of H. A. Brouwer, 65-173.
  2. 1951de Roever, W. P. (1951) Ferrocarpholite, the hitherto unknown ferrous iron analogue of carpholite proper. American Mineralogist, 36 (9-10) 736-745
  3. 1971de Roever, W. P., Kieft, C. (1971) Additional data, on ferrocarpholite from Sulawesi (Celebes), Indonesia. American Mineralogist, 56 (11-12) 1976-1982
  4. 1973Goffé, B., Goffe-Urbango, G., and Saliot, P. (1973) Sur la présence d'une variété magnésienne de ferrocarpholite en Vanoise (Alpes francaises). Sasignification probable dans le métamorphisme alpin. Comptes rendu de l’Académie des sciences de Paris, 277, Série D, 1965-1968.
  5. 1977Steen, D., Bertrand, J. (1977) Sur la préscence de ferrocarpholite associée aux schistes à glaucophane de Haute-Ubaye (Basses-Alpes, France). Schweizerische Mineralogische und Petrographische Mitteilungen, 57, 157-168 (in French with English abs.).
