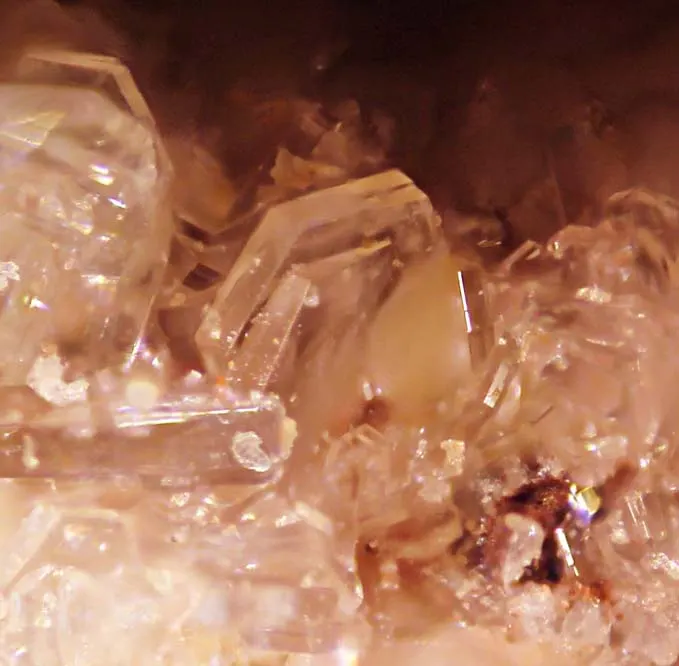

Wickenburgite

Pb3CaAl2Si10O27 · 4H2O
IMA status
  • Approved
IMA symbol
Wbu
Discovered
1968
IMA approved
1968
Also known as
  • IMA1968-006
  • Wickenburgiet

Where it forms, where it's found

Geological setting

Oxide zone mineral derived from lead ores.

Type locality
Potter-Cramer Mine
  1. Vulture Mining District
  2. Maricopa County
  3. Arizona
  4. USA

33.6806°, -112.9556°

10recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless · white · pink
Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

Distinct on the (0001)

Density
3.85 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.648 – 1.6918
Surface relief
High
Principal indices
nω 1.6918 · nε 1.648
UV response
Dull orange under SW UV
Michel-Lévy diagramhighlighted lineδ = 0.0438
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]438 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation438 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#81
Cell parameters
a = 8.555(2) Å · c = 20.190(5) Å
Z
2
Morphology

Type material: Most crystals exhibit only (0001) and (1011) with traces of (1010). Rare forms include (3032), (1124), {6.1._7.12}, (1012), (3144), (4150).

Twinning

None observed

Type-locality form

Well crystallized to granular and massive. Crystals from 0.2 - 1.5 mm in diameter.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead3207.200621.600
41.42%
8OOxygenOxygen3115.999495.969
33.05%
14SiSiliconSilicon1028.085280.850
18.72%
13AlAluminiumAluminium226.98253.964
3.60%
20CaCalciumCalcium140.07840.078
2.67%
1HHydrogenHydrogen81.0088.064
0.54%
Total1500.525100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1968-006
  • Wickenburgiet

In other languages

German
IMA 1968-006 · Wickenburgit
Italian
Wickenburgite

Classification

Strunz
10th ed.

9.EG.55

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EGDouble nets with 6-membered and larger ringsGroup
  • 9.EG.55WickenburgiteSpecies
Dana
8th ed.

74.02.01.01

  • 74Phyllosilicates Modulated LayersClass
  • 74.02Modulated LayersType
  • 74.02.01— unnamed intermediate level —Group
  • 74.02.01.01WickenburgiteSpecies
CIM

16.14.14

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.14Aluminosilicates of Ti, Zr, Sn and PbGroup
  • 16.14.14WickenburgiteSpecies

Group, growth & confusion

Often grow together
2 minerals

Literature, links & citation

Citations
  1. 1968Williams, Sidney A. (1968) Wickenburgite, a new mineral from Arizona. American Mineralogist, 53 (9-10) 1433-1438
  2. 1994Lam, A. E., Groat, L. A., Cooper, M. A., Hawthorne, F. C. (1994) The crystal structure of wickenburgite, Pb3CaAl[AlSi10O27](H2O)3, a sheet structure. The Canadian Mineralogist, 32 (3) 525-532
  3. 1995Jambor, John L., Pertsev, Nikolai N., Roberts, Andrew C. (1995) New Mineral Names. American Mineralogist, 80 (7-8). 845-850
  4. 2002Shannon, Robert D., Shannon, Ruth C., Medenbach, Olaf, Fischer, Reinhard X. (2002) Refractive Index and Dispersion of Fluorides and Oxides. Journal of Physical and Chemical Reference Data, 31 (4) 931-970 doi:10.1063/1.1497384DOI: 10.1063/1.1497384
  5. 2003Hesse, K.-F., Liebau, F., Eulert, H.-H. (2003) Wickenburgite, a double-layer silicate Pb3Al[6][Ca[6]Al[4]Si[4] 10O27(H2O)3]·H2O: Crystal chemistry and thermal behaviour. Zeitschrift für Kristallographie, 218 (8). 542-552 doi:10.1524/zkri.218.8.542.20684DOI: 10.1524/zkri.218.8.542.20684
