Maricopaite

Ca2Pb7(Si36Al12)O99 · n(H2O,OH)
IMA status
  • Approved
IMA symbol
Mrp
Discovered
1988

Where it forms, where it's found

Geological setting

Au-Pb-Ag mineralization in a vein deposit with pod-like ore bodies. Host rock is gneiss and schist. The type material came from the hanging wall of the vein which consists of calcite-fluorite gangue with many square voids thought to be from former galena.

Type locality
Moon Anchor Mine
  1. Hummingbird Springs
  2. Osborn Mining District
  3. Maricopa County
  4. Arizona
  5. USA

33.6422°, -113.0133°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789101 – 1.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · colorless
Streak
White
Tenacity
very brittle
Cleavage
Imperfect/Fair

(010) imperfect.

Density
2.94 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70° · 2V calc = 70°
Refractive index
1.563 – 1.592
Surface relief
Moderate
Principal indices
nα 1.563 · nβ 1.582 · nγ 1.592
Dispersion
r > v strong
Extinction
X = a; Y = c; Z = b.
UV response
None observed.
Notes

γ calculated.

Michel-Lévy diagramhighlighted lineδ = 0.0290
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]290 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation290 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 19.434(2) Å · b = 19.702(2) Å · c = 7.538(1) Å
Ratio a:b:c
1 : 1.014 : 0.388
Z
1
Morphology

Thin bundles of crystals elongated along [001]; in radial sprays, to 1 mm.

Type-locality form

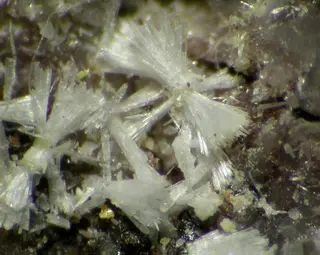

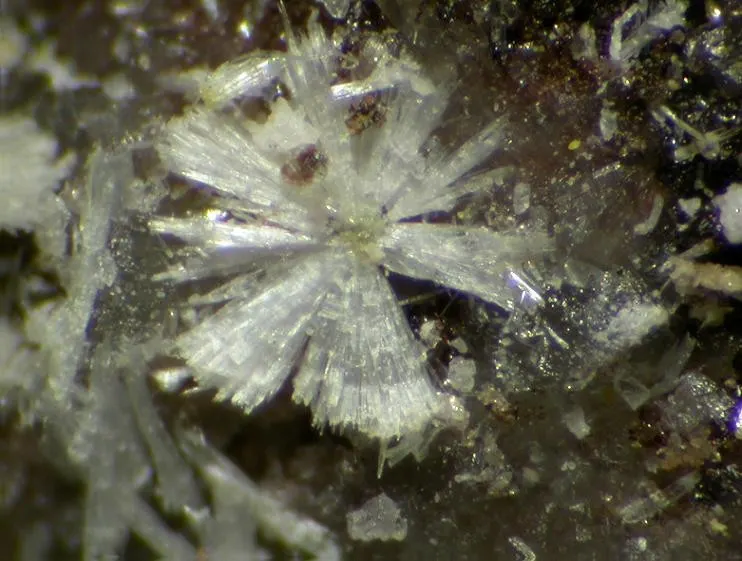

Sprays of translucent white, acicular crystals. Thin bundles of extremely elongate acicular crystals, frequently as mats with admixed mimetite. Radial sprays up to 1.0 mm in diameter.

Comment

Point Group: 2/m 2/m 2/m; mm2; or 222:; Space Group: Cmmm; Cm2m; Cmm2; or C222

Crystal structure

In other languages

German
IMA 1985-036 · Maricopait
Italian
IMA1985-036 · maricopaite

Classification

Strunz
10th ed.

9.GD.35

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GDChains of 6-membered rings – tabular zeolitesGroup
  • 9.GD.35MaricopaiteSpecies
Dana
8th ed.

77.01.06.03

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.06Mordenite and related speciesGroup
  • 77.01.06.03MaricopaiteSpecies
CIM

16.14.15

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.14Aluminosilicates of Ti, Zr, Sn and PbGroup
  • 16.14.15MaricopaiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1988Peacor, D. R., Dunn, P. J., Simmons, W. B., Wicks, F. J., Raudsepp, M. (1988) Maricopaite, a new hydrated Ca-Pb, zeolite-like silicate from Arizona. The Canadian Mineralogist, 26. 309-313
  2. 1989Jambor, John L., Vanko, David A. (1989) New mineral names. American Mineralogist, 74 (7-8) 946-951
  3. 1994Rouse, Roland C., Peacor, Donald R. (1994) Maricopaite, an unusual lead calcium zeolite with an interrupted mordenite-like framework and intrachannel Pb4, tetrahedral clusters. American Mineralogist, 79 (1-2) 175-184
  4. 1997Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, et al. (1997) Recommended nomenclature for zeolite minerals; report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (6). 1571-1606
  5. 2001(2001) Maricopaite. Handbook of Mineralogy. Mineralogical Society of America
