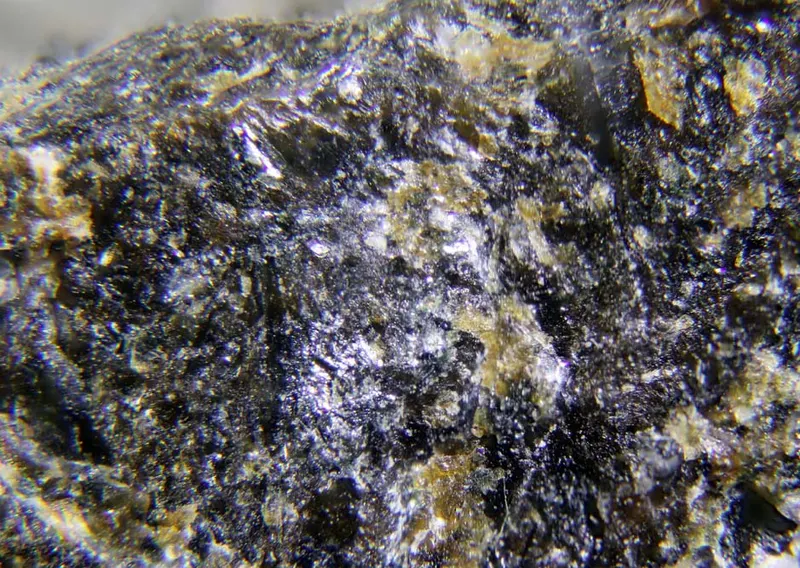

Wilkinsonite

Na4[Fe2+8Fe3+4]O4[Si12O36]
IMA status
  • Approved
IMA symbol
Wkn
Discovered
1988
IMA approved
1988
Also known as
  • IMA1988-053
  • Wilkinsoniet

Where it forms, where it's found

Geological setting

eruptive peralkaline trachyte

Type locality
Warrumbungles (Warrumbungle Range
  1. Warrumbungle Mountain Range)
  2. New South Wales
  3. Australia
4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent · Opaque
Colour
Black
Streak
Brown
Tenacity
brittle
Fracture
Conchoidal
Density
3.89 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 10°
Refractive index
1.79 – 1.9
Surface relief
Very high
Principal indices
nα 1.79 · nβ 1.79 · nγ 1.90
Pleochroism
Strong

X = olive-green; Y = gray-brown; Z = very dark brown.

Dispersion
single
Michel-Lévy diagramhighlighted lineδ = 0.1100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1100 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1100 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 10.3355(5) Å · b = 10.784(4) Å · c = 8.9142(4) Å
Cell angles
α = 105.048(3) ° · β = 96.461(3) ° · γ = 125.302(2) °
Ratio a:b:c
1 : 1.043 : 0.862
Unit cell volume
738.37 ų
Z
2
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron1255.845670.140
38.53%
8OOxygenOxygen4015.999639.960
36.80%
14SiSiliconSilicon1228.085337.020
19.38%
11NaSodiumSodium422.99091.960
5.29%
Total1739.080100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Zr
  • Al
  • Cr
  • Nb
  • Mn
  • Ni
  • Mg
  • Ca
  • K

Synonyms

  • IMA1988-053
  • Wilkinsoniet

In other languages

German
IMA 1988-053 · Wilkinsonit
Italian
Wilkinsonite
Chinese
威尔克斯石

Classification

Strunz
10th ed.

9.DH.40

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DHInosilicates with 4-periodic single chains, Si4O12Group
  • 9.DH.40WilkinsoniteSpecies
Dana
8th ed.

69.02.1a.08

  • 69Inosilicates Chains with Side Branches or LoopsClass
  • 69.02Chains with Side Branches or Loops with P>2Type
  • 69.02.1a— unnamed intermediate level —Group
  • 69.02.1a.08WilkinsoniteSpecies
CIM

14.20.4

  • 14Silicates not Containing AluminumClass
  • 14.20Silicates of Fe and alkali metalsGroup
  • 14.20.4WilkinsoniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1990Duggan, Morris B. (1990) Wilkinsonite, Na2Fe2+4Fe3+2Si6O20, a new member of the aenigmatite group from the Warrumbungle Volcano, New South Wales, Australia. American Mineralogist, 75 (5-6) 694-701
  2. 1991Gaeta, Mario, Mottana, Annibale (1991) Phase relations of aenigmatite minerals in a syenitic ejectum, wonchi volcano, Ethiopia. Mineralogical Magazine, 55 (381) 529-534 doi:10.1180/minmag.1991.055.381.05 DOI: 10.1180/minmag.1991.055.381.05
  3. 1994Burt, D.M. (1994) Vector representation of some mineral compositions in the aenigmatite group, with special reference to høgtuvaite. Canadian Mineralogist: 32: 449-457.
  4. 1996Jensen, B. B. (1996) Solid solution among members of the aenigmatite group. Mineralogical Magazine, 60 (403) 982-986 doi:10.1180/minmag.1996.060.403.14 DOI: 10.1180/minmag.1996.060.403.14
  5. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
