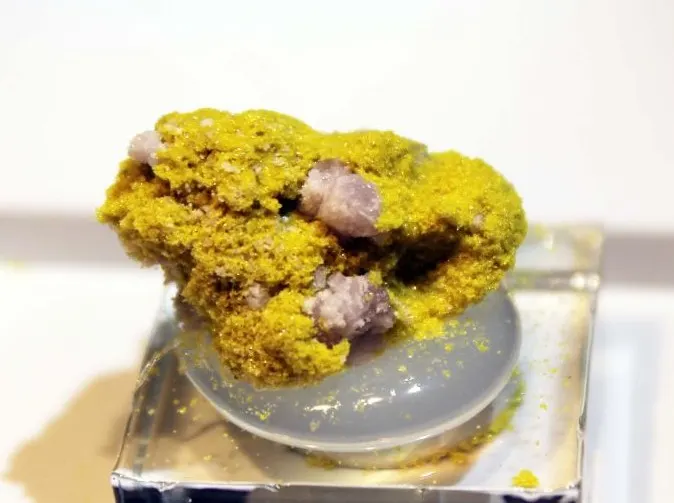

Zincocopiapite

ZnFe3+4(SO4)6(OH)2 · 20H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Zcpi
Discovered
1964
Also known as
  • Zincocopiapiet
  • Zinkocopiapit

Where it forms, where it's found

Type locality
Xitieshan Mine
  1. Xitieshan
  2. Da Qaidam (Dachaidan Co.)
  3. Haixi Mongol and Tibetan Autonomous Prefecture
  4. Qinghai
  5. China

37.3294°, 95.5675°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Yellowish green · canary yellow
Cleavage
Perfect

(010)

Density
2.181 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 44 – 78°
Refractive index
1.532 – 1.592
Surface relief
Moderate
Principal indices
nα 1.532 – 1.534 · nβ 1.540 – 1.554 · nγ 1.586 – 1.592
Pleochroism
Strong

X = yellow; Y = colorless; Z = deep canary-yellow

Michel-Lévy diagramhighlighted lineδ = 0.0560
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]560 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation560 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.355(5) Å · b = 18.40(12) Å · c = 7.28 Å
Cell angles
α = 94.8(10) ° · β = 102.2(6) ° · γ = 98.93(40) °
Ratio a:b:c
1 : 2.502 : 0.990
Z
1

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4615.999735.954
58.44%
26FeIronIron455.845223.380
17.74%
16SSulfurSulfur632.060192.360
15.27%
30ZnZincZinc165.38065.380
5.19%
1HHydrogenHydrogen421.00842.336
3.36%
Total1259.410100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Zincocopiapiet
  • Zinkocopiapit

In other languages

German
Zincocopiapit
Italian
Zincocopiapite

Classification

Strunz
10th ed.

7.DB.35

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DBWith only medium-sized cations; insular octahedra and finite unitsGroup
  • 7.DB.35ZincocopiapiteSpecies
Dana
8th ed.

31.10.05.06

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.10MiscellaneousType
  • 31.10.05Copiapite GroupGroup
  • 31.10.05.06ZincocopiapiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1964Tu Kwang-chih, Li Hsi-lin, Hsieh Hsen-deh, and Yin Shu-sen (1964) Zincobotryogen and zincocopiapite, two new varieties of sulfate minerals. Acta Geologica Sinica 44(1), 99-101 (in Chinese, English abstract). - American Mineralogist: 49, 1777 (abstract).
  2. 1964Tu Kwang-chih, Li Hsi-lin, Hsieh Hsen-deh, and Yin Shu-sen (1964) Zincobotryogen and zincocopiapite, two new varieties of sulfate minerals. Acta Geologica Sinica 44(1), 99-101
  3. 1967Kuliyev, A. (1967) Zincocopiapite from the thermal zone of the front range of the western Kopet-Dag: Akad. Nauk Turkm. SSR, Izv., Ser. Fiz.-Tekh., Khim. Geol. Nauk. 2, p122-125.
  4. 1985Canadian Mineralogist (1985): 23: 53.
  5. 1987Perroud, P. et al. (1987) Presence de zincocopiapite en Valais, Schweiz. Mineral. Petrog. Mitt. 67, 115-117.
