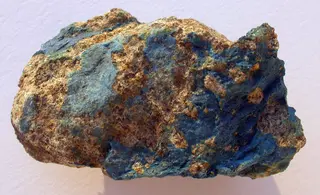

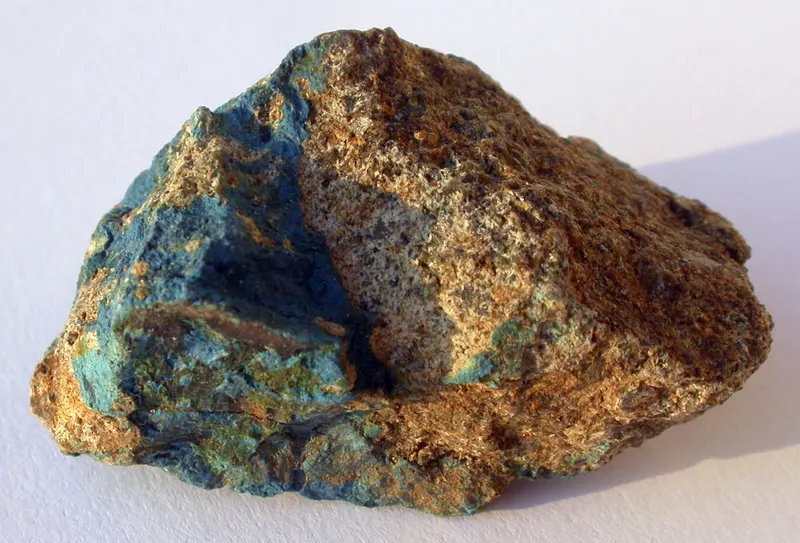

Aerinite

(Ca,Na)6(Fe3+,Fe2+,Mg,Al)4(Al,Mg)6Si12O36(OH)12(CO3) · 12H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Aer
Discovered
1876
Also known as
  • Aerinitt

Where it forms, where it's found

Geological setting

A hydrothermal mineral of the zeolite facies, formed at relatively low temperature, in fractures cutting mafic igneous rocks.

Type locality

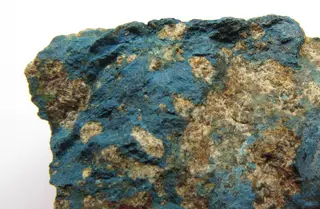

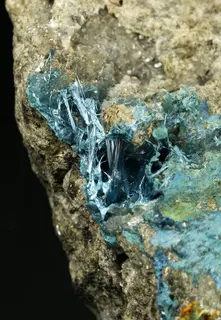

Caserras del Castillo
  1. Estopiñán del Castillo
  2. Huesca
  3. Aragon
  4. Spain

42.0378°, 0.5594°

24recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Blue to blue-green
Streak
Bluish white

Optical

Optical type
Biaxial (-) · 2V measured = 63° · 2V calc = 62°
Refractive index
1.51 – 1.58
Surface relief
Moderate
Principal indices
nα 1.51 · nβ 1.56 · nγ 1.58
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0700
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]700 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation700 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#83
Cell parameters
a = 16.916 Å · c = 5.229 Å
Morphology

As masses of cryptocrystalline fibers; earthy, compact.

Comment

Originally assumed to be monoclinic, a = 14.69 Å, b = 16.87 Å, c = 5.17 Å, β = 94.75°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen6315.9991007.937
36.90%
26FeIronIron855.845446.760
16.36%
14SiSiliconSilicon1228.085337.020
12.34%
13AlAluminiumAluminium1026.982269.820
9.88%
12MgMagnesiumMagnesium1024.305243.050
8.90%
20CaCalciumCalcium640.078240.468
8.80%
11NaSodiumSodium622.990137.940
5.05%
1HHydrogenHydrogen361.00836.288
1.33%
6CCarbonCarbon112.01112.011
0.44%
Total2731.294100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Mn
  • Na
  • K
  • P

Synonyms

  • Aerinitt

In other languages

French
aérinite
German
Aerinit
Spanish
aerinita
Italian
aerinite · erinite

Classification

Strunz
10th ed.

9.DB.45

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DBInosilicates with 2-periodic single chains, Si2O6; Pyroxene-related mineralsGroup
  • 9.DB.45AeriniteSpecies
Dana
8th ed.

68.01.03.01

  • 68Inosilicates Structures with Chains of More Than One WidthClass
  • 68.01Structures with Chains of More Than One WidthType
  • 68.01.03— unnamed intermediate level —Group
  • 68.01.03.01AeriniteSpecies
CIM

16.23.7

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.23Aluminosilicates of Fe, Ca, and MgGroup
  • 16.23.7AeriniteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1876von Lasaulx, A. (1876) XI. Aërinit, ein neues Mineral [XI. Aërinite, a new Mineral], in Mineralogisch-krystallographische Notizen. Erste Folge. Neues Jahrbuch für Mineralogie, Geognosie, Geologie und Petrefaktenkunde, 1876. 352-358
  2. 1985Rafales, J.B., San José, M.L., Juan, A.P., Cuairán, J.B., Amigó, J.M., Moliner, R. (1985) Nuevos datos mineralógicos sobre un inclasificado aluminosilicato," Aerinita", y consideraciones sobre su atribución al grupo de las Ceolitas. Acta geológica hispánica: 20(3): 257-266.
  3. 1988Azambre, Bernard; Monchoux, Pierre (1988) Précisions minéralogiques sur l'aérinite : nouvelle occurrence à Saint-Pandelon (Landes, France). Bulletin de Minéralogie, 111 (1). 39-47 doi:10.3406/bulmi.1988.8069DOI: 10.3406/bulmi.1988.8069
  4. 1988Jambor, John L., Ercit, Ernst A. J. Burke T. Scott, Grice, Joel D. (1988) New Mineral Names. American Mineralogist, 73 (11-12) 1492-1499
  5. 1998Rius, J., Plana, F., Queralt, I., Louër, D. (1998) Preliminary structure type determination of the fibrous aluminosilicate “aerinite” from powder X-ray diffraction data. Anales de Química International Edition: 94: 101–106.
