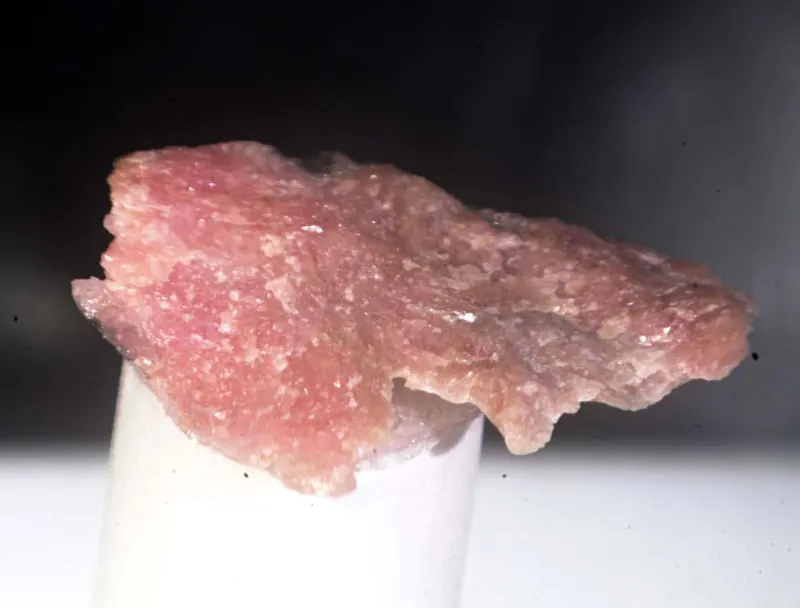

Akatoreite

Mn2+9Al2Si8O24(OH)8
IMA status
  • Approved
IMA symbol
Akt
Discovered
1969
IMA approved
1969
Also known as
  • Akatoreiet
  • Akatoreitt
  • IMA1969-015

Where it forms, where it's found

Geological setting

In a manganiferous metachert and carbonate lens in schists

in manganiferous potassium-rich felsic metavolcanics (Norberg, Sweden).

Type locality
Akatore Creek
  1. Clutha District
  2. Otago Region
  3. New Zealand

-46.1342°, 170.1827°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Yellow-orange to orange-brown
Streak
yellowish white
Cleavage
Perfect

Good on (010) , poor on (012)

Density
3.48 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 65° · 2V calc = 64°
Refractive index
1.698 – 1.72
Surface relief
High
Principal indices
nα 1.698 · nβ 1.704 · nγ 1.72
Pleochroism
Visible

X = colorless; Y = pale yellow; Z = light canary-yellow

Dispersion
relatively strong
Michel-Lévy diagramhighlighted lineδ = 0.0220
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]220 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation220 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 8.337(2) Å · b = 10.367(2) Å · c = 7.629(1) Å
Cell angles
α = 104.46(1) ° · β = 93.81(2) ° · γ = 104.18(1) °
Ratio a:b:c
1 : 1.243 : 0.915
Z
1
Morphology

Rarely as sheaves, to 1 cm, of radiating prisms, elongated and striated parallel[100] ; fibrous, fine granular, massive.

Twinning

Twinning: On (021) twin axis perpindicular (021), lamellar in thin section.

Type-locality form

Rarely as sheaves, to 1 cm, of radiating prisms; fibrous granular, massive.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3215.999511.968
39.59%
25MnManganeseManganese954.938494.442
38.24%
14SiSiliconSilicon828.085224.680
17.38%
13AlAluminiumAluminium226.98253.964
4.17%
1HHydrogenHydrogen81.0088.064
0.62%
Total1293.118100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Fe
  • Mg
  • Ca

Synonyms

  • Akatoreiet
  • Akatoreitt
  • IMA1969-015

In other languages

French
Akatoréite
German
Akatoreit · IMA 1969-015
Italian
akatoreite
Arabic
آكاتورايت · آكاتوريت

Classification

Strunz
10th ed.

9.BH.15

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BHSorosilicates with Si3O10, Si4O11, etc. anions; cations in tetrahedral [4] and greater coordinationGroup
  • 9.BH.15AkatoreiteSpecies
Dana
8th ed.

57.02.03.01

  • 57Sorosilicates Si3o10 Groups and Larger Noncyclic GroupsClass
  • 57.02Insular Si3O10 and Larger Noncyclic Groups with [Si4O13] groupsType
  • 57.02.03Akatoreite GroupGroup
  • 57.02.03.01AkatoreiteSpecies
CIM

16.16.8

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.16Aluminosilicates of MnGroup
  • 16.16.8AkatoreiteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1971Read, Peter B., Reay, Anthony (1971) Akatoreite, a new manganese silicate from eastern Otago, New Zealand. American Mineralogist, 56 (3-4) 416-426
  2. 1987Ounchanum, P. & Morad, S. (1987): Paragenesis of akatoreite and ganophyllite in the manganiferous rocks of the Häste Field, Norberg ore district, central Sweden. Neues Jahrbuch für Mineralogie, Abhandlungen 157, 225-244.
  3. 1993Burns, P. C., Hawthorne, F. C. (1993) Edge-sharing Mn2+O4 tetrahedra in the structure of akatoreite, Mn2+9Al2Si8O24(OH)8. The Canadian Mineralogist, 31 (2) 321-329 doi:10.3749/1499-1276-31.2.321 DOI: 10.3749/1499-1276-31.2.321
  4. 1994Jambor, John L., Grew, Edward S. (1994) New Mineral Names. American Mineralogist, 79 (1-2) 185-189
  5. 2001(2001) Akatoreite. Handbook of Mineralogy. Mineralogical Society of America
