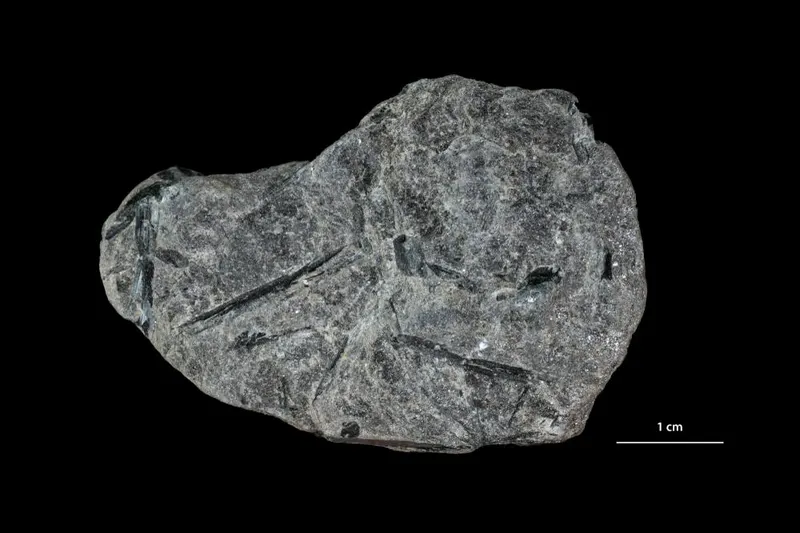

Andesine

(Na,Ca)[Al(Si,Al)Si2O8]
Also known as
  • Andesin
  • Andesite (of Dana)

Where it forms, where it's found

Geological setting

Widespread in igneous rocks of intermediate silica content, as syenites and andesites. Characteristic of granulite to amphibolite facies metamorphism, commonly as antiperthite; as detrital grains in sedimentary rocks.

Type locality
Marmato mining district
  1. Salamina
  2. Caldas Department
  3. Colombia

5.3333°, -75.3333°

516recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 6.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Sub-Vitreous · Pearly
Transparency
Transparent · Translucent
Colour
White · gray · green · yellow · flesh-red.
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (001), less perfect on (010); (110) also observed.

Fracture
Irregular/Uneven · Conchoidal

Optical

Optical type
Biaxial (+/-) · 2V measured = 76 – 83° · 2V calc = 78 – 84°
Refractive index
1.543 – 1.562
Surface relief
Moderate
Principal indices
nα 1.543 – 1.554 · nβ 1.5469 – 1.5587 · nγ 1.552 – 1.562
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0085
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]85 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation85 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 8.151(3) Å · b = 12.829(5) Å · c = 14.206(7) Å
Cell angles
α = 93.62(3) ° · β = 116.21(2) ° · γ = 89.70(2) °
Ratio a:b:c
1 : 1.574 : 1.743
Z
8
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen815.999127.992
38.87%
14SiSiliconSilicon328.08584.255
25.59%
13AlAluminiumAluminium226.98253.964
16.39%
20CaCalciumCalcium140.07840.078
12.17%
11NaSodiumSodium122.99022.990
6.98%
Total329.279100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Andesin
  • Andesite (of Dana)

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1955Muir, I. D. (1955) Transitional optics of some andesines and labradorites. Mineralogical Magazine and Journal of the Mineralogical Society, 30 (228) 545-568 doi:10.1180/minmag.1955.030.228.01 DOI: 10.1180/minmag.1955.030.228.01
  2. 1984Richet, Pascal, Bottinga, Yan (1984) Anorthite, andesine, wollastonite, diopside, cordierite and pyrope: thermodynamics of melting, glass transitions, and properties of the amorphous phases. Earth and Planetary Science Letters, 67 (3) 415-432 doi:10.1016/0012-821x(84)90179-1DOI: 10.1016/0012-821x(84)90179-1
  3. 1987Steurer, W.; Jagodzinski, H. (1987) The incommensurately modulated structure of an andesine An38. Acta Crystallographica Section A Foundations of Crystallography, 43 (a1). p.C154. doi:10.1107/s0108767387081340DOI: 10.1107/s0108767387081340
  4. 1988Steurer, W.; Jagodzinski, H. (1988) The incommensurately modulated structure of an andesine (An38). Acta Crystallographica Section B Structural Science, 44 (4). p.344-351. doi:10.1107/s0108768188001806DOI: 10.1107/s0108768188001806
  5. 2001(2001) Andesine. Handbook of Mineralogy. Mineralogical Society of America
