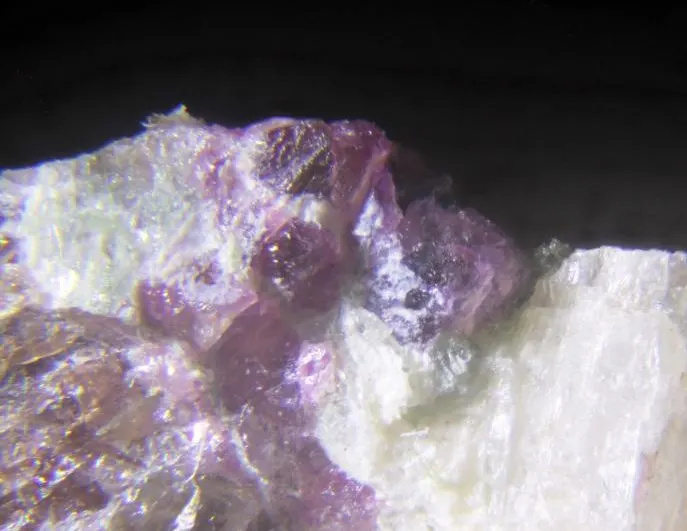

Aqualite

(H3O)8(Na,K,Sr)5Ca6Zr3Si26O66(OH)9Cl
IMA status
  • Approved
IMA symbol
Aq
IMA approved
2002
Also known as
  • Aqualiet
  • Aqualit
  • Aqualitt
  • +1 more

Where it forms, where it's found

Geological setting

alkaline pegmatite

Type locality
Inagli chrome diopside deposit
  1. Inagli Massif
  2. Aldan
  3. Sakha
  4. Russia

58.5367°, 124.9140°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Pink
Streak
White
Tenacity
brittle
Fracture
Conchoidal
Density
2.58 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.569 – 1.571
Surface relief
Moderate
Principal indices
nω 1.569 · nε 1.571
Pleochroism
Visible

W= colorless to pink E= pink

UV response
Nonfluorescent in short-wave UV, but fluoresces pale yellow in long-wave UV.
Michel-Lévy diagramhighlighted lineδ = 0.0020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]20 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation20 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#78
Cell parameters
a = 14.1435(4) Å · c = 31.410(1) Å
Z
3
Morphology

idiomorphic crystals to 3 cm in diameter

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen8315.9991327.917
39.18%
14SiSiliconSilicon2628.085730.210
21.54%
38SrStrontiumStrontium587.620438.100
12.93%
40ZrZirconiumZirconium391.224273.672
8.07%
20CaCalciumCalcium640.078240.468
7.09%
19KPotassiumPotassium539.098195.490
5.77%
11NaSodiumSodium522.990114.950
3.39%
17ClChlorineChlorine135.45035.450
1.05%
1HHydrogenHydrogen331.00833.264
0.98%
Total3389.521100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Aqualiet
  • Aqualit
  • Aqualitt
  • IMA2002-066

In other languages

German
Aqualith · IMA 2002-066
Italian
aqualite
Russian
аквалит

Classification

Strunz
10th ed.

9.CO.10

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CO[Si9O27]18- 9-membered ringsGroup
  • 9.CO.10AqualiteSpecies
Dana
8th ed.

64.01.01.03

  • 64Cyclosilicates Rings with Other Anions and Insular Silicate GroupsClass
  • 64.01Rings with Other Anions and Insular Silicate Groups with mixed ring typesType
  • 64.01.01Eudialyte GroupGroup
  • 64.01.01.03AqualiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2007Khomyakov, A.P., Nechelyustov, G.N., Rastsvetaeva, R.K. (2007): Aqualite, (H3O)8(Na,K,Sr)5Ca6Zr3Si26O66(OH)9Cl, a new eudialyte-group mineral from Inagli alkaline massif (Sakha-Yakutia, Russia),and the problem of oxonium in hydrated eudialytes. Proceedings of the Russian Mineralogical Society (Zapiski RMO), 136(2), 39-55. {American Mineralogist 94,1075(2009)(abstract)]
  2. 2011(2011) Aqualite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2018Rastsvetaeva, R. K., Viktorova, K. A., & Aksenov, S. M. (2018). New data on the Isomorphism in Eudialyte-Group Minerals. II. Refinement of the aqualite crystal structure at 110 K. Crystallography Reports, 63, 891-896.
