Ferrokentbrooksite

Na15Ca6Fe2+3Zr3Nb(Si25O73)(O,OH,H2O)3(F,Cl)2
IMA status
  • Approved
IMA symbol
Fktb
IMA approved
1999
Also known as
  • Ferrokentbrooksiet
  • IMA1999-046
  • Xanthopite

Where it forms, where it's found

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

14recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
reddish brown · red
Streak
white
Tenacity
brittle
Cleavage
None Observed

without cleavage

Fracture
Irregular/Uneven · Conchoidal
Density
3.06 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.6186 – 1.6221
Surface relief
Moderate
Principal indices
nω 1.6221 · nε 1.6186
Pleochroism
Non-pleochroic

no pleochroism at maximum birefringence

UV response
Non-fluorescentin short and long-wave ultraviolet light.
Michel-Lévy diagramhighlighted lineδ = 0.0035
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]35 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation35 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#86
Cell parameters
a = 14.2099 Å · c = 30.06 Å
Unit cell volume
5257.7 ų
Z
3
Morphology

Pseudo-octahedral crystals, masses. Forms observed: Dominant (0001), {10¯11} and {01¯12}. Minor: {02¯21} and {11¯20}.

Parting
without parting
Type-locality form

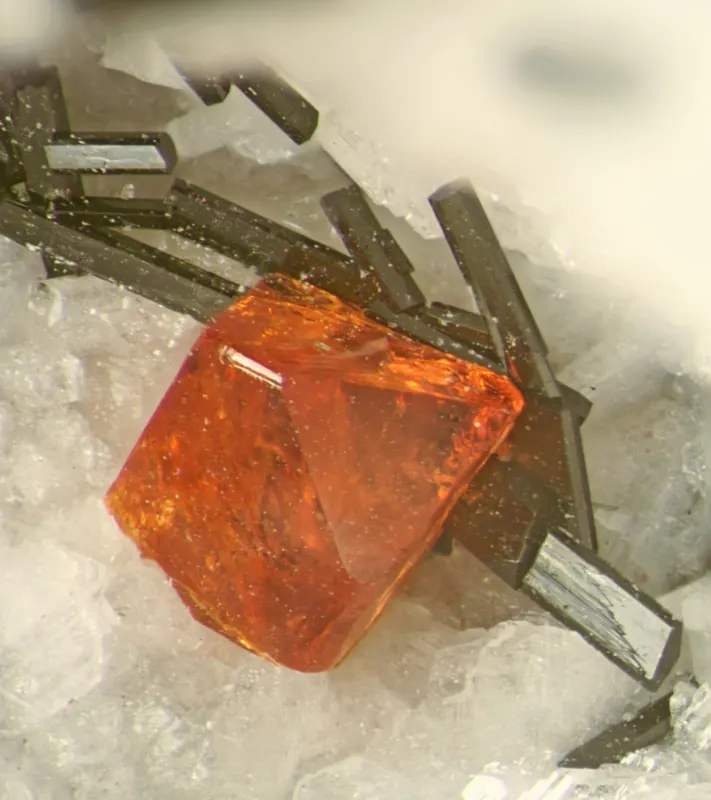

As reddish brown to red, pseudo-octahedral crystals up to 1 cm in diameter.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen8215.9991311.918
40.35%
14SiSiliconSilicon2528.085702.125
21.59%
11NaSodiumSodium1522.990344.850
10.61%
40ZrZirconiumZirconium391.224273.672
8.42%
20CaCalciumCalcium640.078240.468
7.39%
26FeIronIron355.845167.535
5.15%
41NbNiobiumNiobium192.90692.906
2.86%
17ClChlorineChlorine235.45070.900
2.18%
9FFluorineFluorine218.99837.996
1.17%
1HHydrogenHydrogen91.0089.072
0.28%
Total3251.442100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • F
  • REE
  • K
  • Sr
  • Y
  • (Ti, Hf, Ta)

Synonyms

  • Ferrokentbrooksiet
  • IMA1999-046
  • Xanthopite

In other languages

German
Ferrokentbrooksit · IMA 1999-046
Italian
Ferrokentbrooksite

Classification

Strunz
10th ed.

9.CO.10

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CO[Si9O27]18- 9-membered ringsGroup
  • 9.CO.10FerrokentbrooksiteSpecies
Dana
8th ed.

64.01.02.02

  • 64Cyclosilicates Rings with Other Anions and Insular Silicate GroupsClass
  • 64.01Rings with Other Anions and Insular Silicate Groups with mixed ring typesType
  • 64.01.02— unnamed intermediate level —Group
  • 64.01.02.02FerrokentbrooksiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 2003Johnsen, O., Grice, J. D., Gault, R. A. (2003) Ferrokentbrooksite, a new member of the eudialyte group from Mont Saint-Hilaire, Quebec, Canada. The Canadian Mineralogist, 41 (1) 55-60 doi:10.2113/gscanmin.41.1.55 DOI: 10.2113/gscanmin.41.1.55
  2. 2021(2021) Ferrokentbrooksite. Handbook of Mineralogy. Mineralogical Society of America
