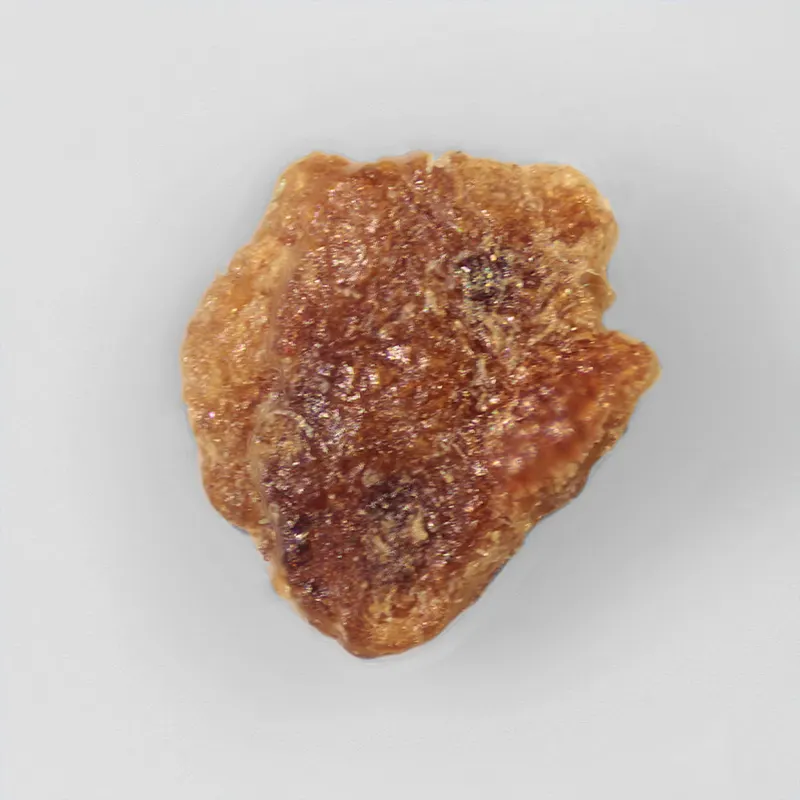

Byelorussite-(Ce)

NaBa2Ce2Mn2+Ti2Si8O26(F,OH) · H2O
IMA status
  • Approved
IMA symbol
Bye-Ce
Also known as
  • Byelorussiet-(Ce)

Where it forms, where it's found

Geological setting

Salband of a quartz vein in lower Proterozoic metasomatized granosyenites.

Type locality
Diabazovoye REE-Be deposit
  1. Zhytkavichy District
  2. Gomel Region
  3. Belarus

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Pale yellow to pale brown
Streak
Colorless
Tenacity
very brittle
Cleavage
Perfect

(001) perfect, (100) imperfect, (010) very imperfect.

Density
3.92 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 58 – 62° · 2V calc = 58°
Refractive index
1.743 – 1.82
Surface relief
High
Principal indices
nα 1.743 · nβ 1.76 · nγ 1.82
Pleochroism
Not Visible

Pleochroism absent to very weak in yellows.

Dispersion
r > v moderate
Extinction
X = a; Y = b; Z = c.
UV response
None
Notes

Absorption: Z > Y ≈ X.

Michel-Lévy diagramhighlighted lineδ = 0.0770
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]770 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation770 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#18
Cell parameters
a = 22.301(4) Å · b = 10.514(2) Å · c = 9.669(2) Å
Ratio a:b:c
1 : 0.471 : 0.434
Z
4
Type-locality form

Tabular and thin-tabular crystals to 25x20x4 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2815.999447.972
31.48%
58CeCeriumCerium2140.116280.232
19.69%
56BaBariumBarium2137.327274.654
19.30%
14SiSiliconSilicon828.085224.680
15.79%
22TiTitaniumTitanium247.86795.734
6.73%
25MnManganeseManganese154.93854.938
3.86%
11NaSodiumSodium122.99022.990
1.61%
9FFluorineFluorine118.99818.998
1.33%
1HHydrogenHydrogen31.0083.024
0.21%
Total1423.222100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Byelorussiet-(Ce)

In other languages

German
Byelorussit-(Ce) · IMA 1988-042
Italian
Byelorussite- · byelorussite-(Ce)

Classification

Strunz
10th ed.

9.CE.25

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CE[Si4O12]8- 4-membered single rings (vierer-Einfachringe), without insular complex anionsGroup
  • 9.CE.25Byelorussite-(Ce)Species
Dana
8th ed.

60.01.1b.04

  • 60Cyclosilicates Four-membered RingsClass
  • 60.01Four-Membered Rings, as TitanosilicatesType
  • 60.01.1b— unnamed intermediate level —Group
  • 60.01.1b.04Byelorussite-(Ce)Species
CIM

14.18.32

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.32Byelorussite-(Ce)Species

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1989Shpanov, E.P., Nechelyustov, G.N., Baturin, S.V., and Solntseva, L.S. (1989) Byelorussite-(Ce) - NaMnBa2Ti2Si8O26(F,OH)·H2O - a new mineral of the joaquinite group. Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva: 118(5): 100-107. (in Russian)
  2. 1991Jambor, John L., Puziewicz, Jacek (1991) New Mineral Names. American Mineralogist, 76 (3-4) 665-671
  3. 2001(2001) Byelorussite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
  4. 2004Zubkova, N. V., Pushcharovskii, D. Yu., Giester, G., Tillmanns, E., Pekov, I. V., Krotova, O. D. (2004) Crystal structure of byelorussite-(Ce) NaMnBa2Ce2(TiO)2[Si4O12]2(F,OH) · H2O. Crystallography Reports, 49 (6) 964-968 doi:10.1134/1.1828140DOI: 10.1134/1.1828140
