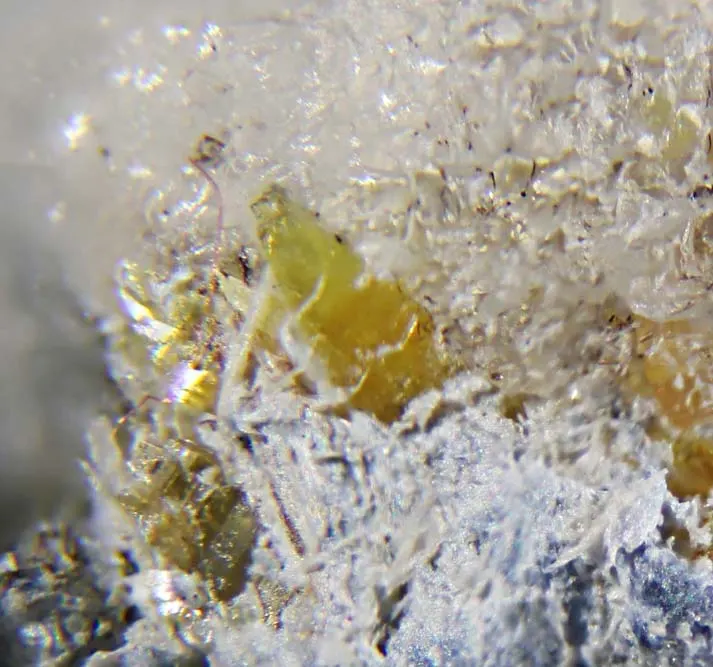

Strontio-orthojoaquinite

NaSr4Fe3+Ti2Si8O24(OH)4
IMA status
  • Approved
IMA symbol
Sojq
Also known as
  • IMA1979-081a
  • Strontio-orthojoaquiniet

Where it forms, where it's found

Type locality
Ōmi
  1. Itoigawa City
  2. Niigata Prefecture
  3. Japan

37.0218°, 137.7885°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow
Cleavage
Perfect

(001)

Density
3.62 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 42 – 48° · 2V calc = 42°
Refractive index
1.707 – 1.778
Surface relief
High
Principal indices
nα 1.707 · nβ 1.718 · nγ 1.778
Pleochroism
Weak

X = Y = colorless; Z = light yellow.

Dispersion
relatively strong
Michel-Lévy diagramhighlighted lineδ = 0.0710
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]710 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation710 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 10.517(6) Å · b = 9.777(5) Å · c = 33.392(12) Å
Ratio a:b:c
1 : 0.930 : 3.175
Z
4
Morphology

Angular anhedral crystals

Comment

Point Group: 2/m 2/m 2/m or mm2:; Space Group: P cam or P ca21 :

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2815.999447.972
37.28%
38SrStrontiumStrontium487.620350.480
29.16%
14SiSiliconSilicon828.085224.680
18.70%
22TiTitaniumTitanium247.86795.734
7.97%
26FeIronIron155.84555.845
4.65%
11NaSodiumSodium122.99022.990
1.91%
1HHydrogenHydrogen41.0084.032
0.33%
Total1201.733100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-081a
  • Strontio-orthojoaquiniet

In other languages

German
IMA 1979-081a · Strontio-Orthojoaquinit
Italian
Strontio-orthojoaquinite · Stronzio-ortojoaquinite
Japanese
ストロンチウム斜方ホアキン石

Classification

Strunz
10th ed.

9.CE.25

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CE[Si4O12]8- 4-membered single rings (vierer-Einfachringe), without insular complex anionsGroup
  • 9.CE.25Strontio-orthojoaquiniteSpecies
Dana
8th ed.

60.01.1b.02

  • 60Cyclosilicates Four-membered RingsClass
  • 60.01Four-Membered Rings, as TitanosilicatesType
  • 60.01.1b— unnamed intermediate level —Group
  • 60.01.1b.02Strontio-orthojoaquiniteSpecies
CIM

14.9.16

  • 14Silicates not Containing AluminumClass
  • 14.9Silicates of TiGroup
  • 14.9.16Strontio-orthojoaquiniteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1974Chihara, Kazuya, Komatsu, Masayuki, Mizota, Tadato (1974) A joaquinite-like mineral from Ohmi, Niigata Prefecture, central Japan. Mineralogical Journal, 7 (4) 395-399 doi:10.2465/minerj1953.7.395 DOI: 10.2465/minerj1953.7.395
  2. 1982Wise, W. S. (1982) Strontiojoaquinite and bario-orthojoaquinite: two new members of the joaquinite group. American Mineralogist, 67 (7-8) 809-816
  3. 2017(2017) Strontio-orthojoaquinite. Handbook of Mineralogy. Mineralogical Society of America
