Camérolaite

Cu6Al3(OH)18(H2O)2[Sb(OH)6](SO4)
IMA status
  • Approved
IMA symbol
Cmé
Discovered
1990
IMA approved
1990
Also known as
  • IMA1990-036

Where it forms, where it's found

Type locality
Cap Garonne Mine
  1. Le Pradet
  2. Toulon
  3. Var
  4. Provence-Alpes-Côte d'Azur
  5. France

43.0814°, 6.0322°

16recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent
Colour
Blue-green
Streak
light green
Tenacity
brittle
Cleavage
Distinct/Good

(100) and (001)

Fracture
Fibrous
Density
3.1 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 75 – 77° · 2V calc = 76°
Refractive index
1.626 – 1.682
Surface relief
High
Principal indices
nα 1.626 · nβ 1.646 · nγ 1.682
Pleochroism
Visible

α = colorless, β = pale-green, γ = blue-green.

Dispersion
weak
UV response
Nonfluorecent
Michel-Lévy diagramhighlighted lineδ = 0.0560
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]560 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation560 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 6.3310(13) Å · b = 2.9130(6) Å · c = 10.727(2) Å
Cell angles
α = 93.77(2) ° · β = 96.34(3) ° · γ = 79.03(3) °
Ratio a:b:c
1 : 0.460 : 1.694
Unit cell volume
192.82 ų
Z
1
Morphology

Acicular, fibrous, micaceous.

Type-locality form

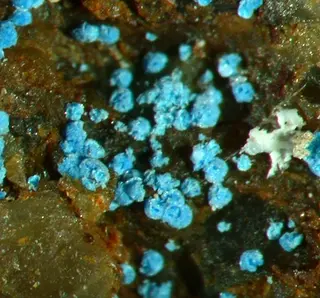

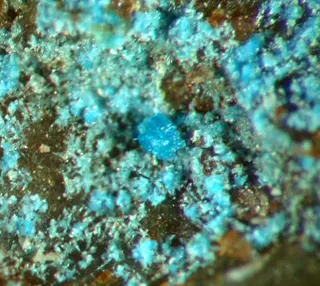

Camerolaite forms tufts and radiating fibrous aggregates (0.5-2mm) of acicular crystals

Comment

Pseudomonoclinic. May be described with a C-centred triclinic cell with a = 12.441(3), b = 2.9130(6), c = 10.727(2) Å, α = 93.77(3), β = 95.57(3), γ = 92.32(3)° (C1, Z = 0.666).Originally assumed cell: a = 10.76, b = 2.90, c = 12.52 Å, beta = 95.61°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3015.999479.970
42.69%
29CuCopperCopper663.546381.276
33.92%
51SbAntimonyAntimony1121.760121.760
10.83%
13AlAluminiumAluminium326.98280.946
7.20%
16SSulfurSulfur132.06032.060
2.85%
1HHydrogenHydrogen281.00828.224
2.51%
Total1124.236100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1990-036

In other languages

German
Camérolait · IMA 1990-036
Italian
camérolaite

Classification

Strunz
10th ed.

7.DE.75

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DEWith only medium-sized cations; unclassifiedGroup
  • 7.DE.75CamérolaiteSpecies
Dana
8th ed.

44.03.11.01

  • 44AntimonatesClass
  • 44.03MiscellaneousType
  • 44.03.11— unnamed intermediate level —Group
  • 44.03.11.01CamérolaiteSpecies
CIM

12.2.24

  • 12Carbonates with other anionsClass
  • 12.2Carbonates with sulphateGroup
  • 12.2.24CamérolaiteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1991Sarp, H., Perroud, P. (1991) Camerolaite, Cu4Al2[HSbO4,SO4](OH)10(CO3).2H2O, a new mineral from Cap Garonne mine, Var, France. Neues Jahrbuch für Mineralogie, Monatshefte: 1991: 481-486.
  2. 1992Jambor, John L., Puziewicz, Jacek (1992) New Mineral Names. American Mineralogist, 77 (9-10) 1116-1121
  3. 1995CUCHET, S. (1995): Seconde occurrence de camérolaïte, Cu4Al2[(HSbO4,SO4)](OH)10(CO3)*2H2O, Val d'Anniviers, Valais, Suisse. Schweiz. Miner. Petrogr. Mitt. 75, 283-284.
  4. 1995Walenta, K. (1995) Camerolait aus dem Schwarzwald. Aufschluss: 46: 210-214. (in German)
  5. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
