Khaidarkanite

Cu4Al3(OH)14F3 · 2H2O
IMA status
  • Approved
IMA symbol
Kdk
Also known as
  • IMA1998-013
  • Khaidarkaniet

Where it forms, where it's found

Geological setting

oxidation zone of antimony-mercury deposit

Type locality
Khaidarkan Sb-Hg deposit
  1. Aydarken
  2. Kadamjay District
  3. Batken Region
  4. Kyrgyzstan

39.9333°, 71.3333°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Light blue or bright sky-blue
Streak
Light blue
Density
2.84 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 80 – 90°
Refractive index
1.585 – 1.648
Surface relief
Moderate
Principal indices
nα 1.585 · nβ 1.615 · nγ 1.648
Pleochroism
Visible

X = colorless, Y = sky blue, Z = bright blue, Z > Y > X

Dispersion
small
Michel-Lévy diagramhighlighted lineδ = 0.0630
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]630 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation630 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 12.346(3) Å · b = 2.907(3) Å · c = 10.369(7) Å
Cell angles
β = 97.90(2) °
Ratio a:b:c
1 : 0.235 : 0.840
Z
1
Type-locality form

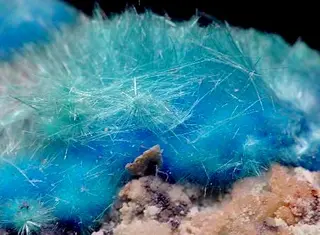

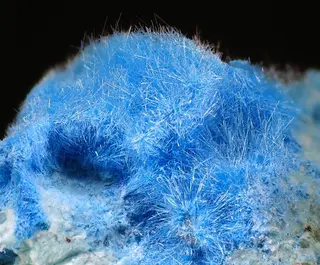

Flat, acicular crystals up to 0.03 × 0.05 × 7 mm, as radial aggregates up to 1 mm across, and as fibrous aggregates.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
38.42%
29CuCopperCopper463.546254.184
38.15%
13AlAluminiumAluminium326.98280.946
12.15%
9FFluorineFluorine318.99856.994
8.56%
1HHydrogenHydrogen181.00818.144
2.72%
Total666.252100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1998-013
  • Khaidarkaniet

In other languages

German
IMA 1998-013 · Khaidarkanit
Italian
Khaidarkanite

Classification

Strunz
10th ed.

3.DA.45

  • 3HalidesClass
  • 3.DOxyhalides, hydroxyhalides and related double halidesDivision
  • 3.DAWith Cu, etc., without PbGroup
  • 3.DA.45KhaidarkaniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1997Rastsvetaeva, R.K., Chukanov, N.V., Karpenko, V.Y. (1997) Crystal structure of new native compound Cu4Al3(OH)14F3(H2O)2. Doklady Chemistry: 353: 45-48.
  2. 1999Chukanov, N.V., Karpenko, V.Y., Rastsvetaeva, R.K., Zadov, A.E., Kuz'mina, O.V. (1999) Khaidarkanite Cu4Al3(OH)14F3·2H2O, new mineral from Khaidarkan deposit, Kyrgyzstan. Zapiski Vserossijskogo Mineralogicheskogo Obshchestva: 128(3): 58-63.
  3. 2000Jambor, John L., Pertsev, Nikolai N., Roberts, Andrew C. (2000) New Mineral Names. American Mineralogist, 85. 1321-1325
  4. 2009Hager, S. L., Leverett, P., Williams, P. A. (2009) Possible Structural and Chemical Relationships in the Cyanotrichite Group. The Canadian Mineralogist, 47 (3) 635-648 doi:10.3749/canmin.47.3.635 DOI: 10.3749/canmin.47.3.635
  5. 2014Mills, S. J., Christy, A. G., Schnyder, C., Favreau, G., Price, J. R. (2014) The crystal structure of camerolaite and structural variation in the cyanotrichite family of merotypes. Mineralogical Magazine, 78 (7) 1527-1552 doi:10.1180/minmag.2014.078.7.02DOI: 10.1180/minmag.2014.078.7.02
