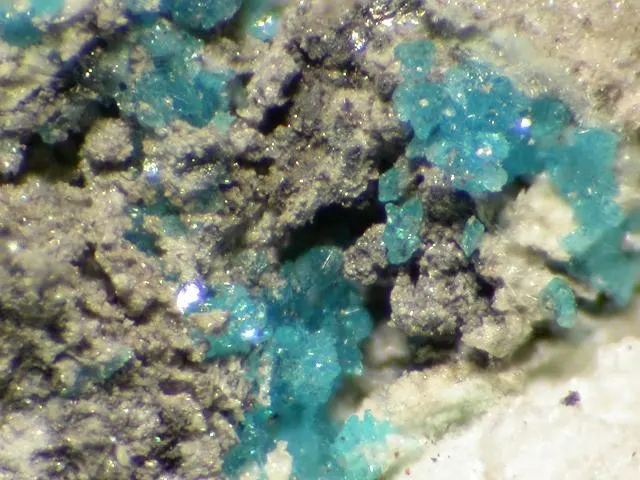

Chenite

CuPb4(SO4)2(OH)6
IMA status
  • Approved
IMA symbol
Che
Discovered
1983
IMA approved
1983
Also known as
  • Cheniet
  • IMA1983-069

Where it forms, where it's found

Geological setting

Secondary mineral in a lead-copper deposit.

Type locality
Susanna Mine (Glennery Scar vein
  1. Susanna vein [Scar vein]
  2. Portobello vein
  3. Humby vein
  4. Lead vein)
  5. Leadhills
  6. South Lanarkshire
  7. Scotland
  8. UK

55.4233°, -3.7675°

53recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Sky blue · pale blue
Streak
Pale blue
Cleavage
Distinct/Good

On (100); traces of another cleavage on (001).

Density
5.98 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 67° · 2V calc = 66°
Refractive index
1.871 – 1.927
Surface relief
Very high
Principal indices
nα 1.871 · nβ 1.909 · nγ 1.927
Pleochroism
Weak
Dispersion
Very strong, r >> v.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0560
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]560 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation560 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.791(1) Å · b = 7.940(1) Å · c = 7.976(1) Å
Cell angles
α = 112.02(1) ° · β = 97.73(1) ° · γ = 100.45(1) °
Ratio a:b:c
1 : 1.371 : 1.377
Z
1
Morphology

Tabular, pointed, rich in faces. Forms include dominant (132) and (221), less dominant (100). Also (253), (154), (110), (010), (001), (101), (111), (112).

Twinning

Twinning observed.

Type-locality form

Crystals to 1 x 0.5 x 0.2 mm in size, and a twinned crystal 1.5 mm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead4207.200828.800
69.85%
8OOxygenOxygen1415.999223.986
18.88%
16SSulfurSulfur232.06064.120
5.40%
29CuCopperCopper163.54663.546
5.36%
1HHydrogenHydrogen61.0086.048
0.51%
Total1186.500100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Cheniet
  • IMA1983-069

In other languages

German
Chenit · IMA 1983-069
Italian
Chenite
Chinese
陈铜铅矾

Classification

Strunz
10th ed.

7.BC.70

  • 7SulfatesClass
  • 7.BSulfates (selenates, etc.) with additional anions, without H2ODivision
  • 7.BCWith medium-sized and large cationsGroup
  • 7.BC.70CheniteSpecies
Dana
8th ed.

30.01.16.01

  • 30Anhydrous Sulfates Containing Hydroxyl or HalogenClass
  • 30.01(AB)m(XO4)pZq, where m:p>2:1Type
  • 30.01.16— unnamed intermediate level —Group
  • 30.01.16.01CheniteSpecies
CIM

25.7.8

  • 25SulphatesClass
  • 25.7Sulphates of PbGroup
  • 25.7.8CheniteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1986Paar, W. H., Mereiter, Kurt, Braithwaite, R. S. W., Keller, Paul, Dunn, P. J. (1986) Chenite, Pb4Cu(SO4)2(OH)6, a new mineral, from Leadhills, Scotland. Mineralogical Magazine, 50 (355) 129-135 doi:10.1180/minmag.1986.050.355.17 DOI: 10.1180/minmag.1986.050.355.17
  2. 1987Hawthorne, F.C., Bladh, K.W., Burke, E.A.J, Grew, E.S., Langley, R.H., Puciewicz, J., Roberts, A.C., Schedler, R.A., Shigley, J.E., Vanko, D.A. (1987) New mineral names. American Mineralogist: 72: 222-230.
  3. 1988Hess, H., Keller., P., Riffel, H. (1988) The crystal structure of chenite, Pb4Cu(OH)6(SO4)2. Neues Jahrbuch für Mineralogie - Monatshefte, 1988. 259-264
  4. 1991Krause, W. (1991) Chenit von der Grube Virneberg bei Rheinbreitbach. Aufschluss: 42: 147-153. (in German)
  5. 2005(2005) Chenite. Handbook of Mineralogy. Mineralogical Society of America
