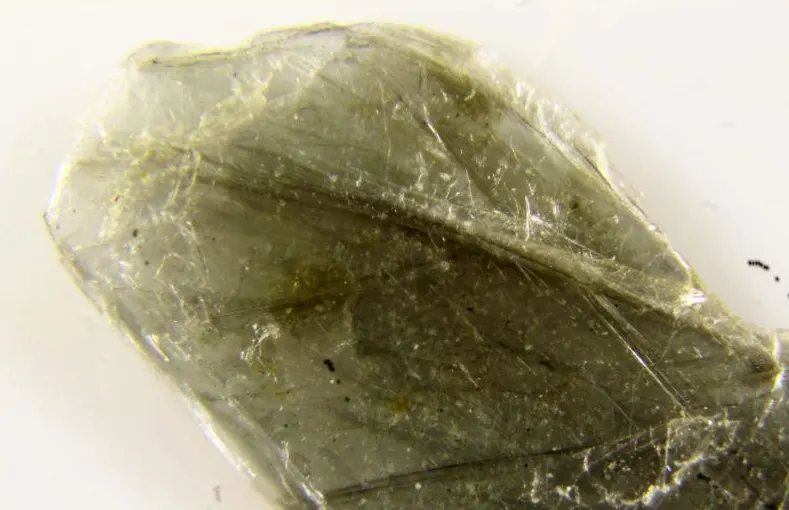

Chernykhite

BaV2(Si2Al2)O10(OH)2
IMA status
  • Approved
IMA symbol
Cyk
Discovered
1972
Also known as
  • Chernykhiet
  • Chernykhita

Where it forms, where it's found

Type locality
Balasauskandyk V Deposit
  1. Shieli District
  2. Kyzylorda Region
  3. Kazakhstan

44.5333°, 67.4167°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Olive green to dark green
Streak
Light green
Cleavage
Perfect

(001)

Density
3.14 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 11 – 12° · 2V calc = 52 – 58°
Refractive index
1.64 – 1.704
Surface relief
High
Principal indices
nα 1.64 – 1.643 · nβ 1.686 – 1.691 · nγ 1.702 – 1.704
Dispersion
relatively weak
Michel-Lévy diagramhighlighted lineδ = 0.0615
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]615 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation615 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 5.29 Å · b = 9.18 Å · c = 20.02 Å
Cell angles
β = 95.68 °
Ratio a:b:c
1 : 1.735 : 3.784
Z
4
Type-locality form

small veinlets and leaflets, to 5 mm.

Comment

Point Group: 2/m or m; Space Group: C2/c or Cc:

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
35.34%
56BaBariumBarium1137.327137.327
25.27%
23VVanadiumVanadium250.942101.884
18.75%
14SiSiliconSilicon228.08556.170
10.34%
13AlAluminiumAluminium226.98253.964
9.93%
1HHydrogenHydrogen21.0082.016
0.37%
Total543.349100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg
  • Fe
  • K

Synonyms

  • Chernykhiet
  • Chernykhita

In other languages

French
Chernykhite
German
Chernykhit · IMA 1972-006
Italian
Chernykhite
Chinese
钡钒云母

Classification

Strunz
10th ed.

9.EC.15

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.15ChernykhiteSpecies
Dana
8th ed.

71.02.2a.03

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.2a— unnamed intermediate level —Group
  • 71.02.2a.03ChernykhiteSpecies
CIM

16.15.3

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.15Aluminosilicates of V and CrGroup
  • 16.15.3ChernykhiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1973Fleischer, Michael (1973) New mineral names. American Mineralogist, 58 (9-10). 966-967
  2. 1973Ankinovich, S.G., Ankinovich, Ye.A., Rozhdestvenskaya, I.V., Frank-Kamenetskiy, V.A. (1973) Chernykhite, a new barium-vanadium mica from northwestern Karatau. International Geology Review, 15 (6) 641-647 doi:10.1080/00206817309475934DOI: 10.1080/00206817309475934
  3. 1998Rieder, M., Cavazzini, G., D’Yakonov, Y.S., Frank-Kamenetskii, V.A., Gottardt, G., Guggenheim, S., Koval, P.V., Muller, G., Neiva, A.M.R., Radoslovich, E.W., Robert, J.L., Sassi, F.P., Takeda, H., Weiss, Z., Wones, D.R. (1998) Nomenclature of the micas. The Canadian Mineralogist, 36 (3) 905-912
  4. 2001(2001) Chernykhite. Handbook of Mineralogy. Mineralogical Society of America
