Kinoshitalite

BaMg3(Si2Al2O10)(OH)2
IMA status
  • Approved
IMA symbol
Kns
Discovered
1973
Also known as
  • Kinoshitaliet
  • Kinoshitalit

Where it forms, where it's found

Geological setting

manganese ore

Type locality
Noda-Tamagawa mine
  1. Noda
  2. Kunohe-gun
  3. Iwate Prefecture
  4. Japan

40.0733°, 141.8083°

20recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow brown to colorless
Tenacity
brittle
Cleavage
Perfect

(001)

Density
3.30 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 23° · 2V calc = 40 – 82°
Refractive index
1.619 – 1.635
Surface relief
Moderate
Principal indices
nα 1.619 · nβ 1.628 – 1.633 · nγ 1.635
Pleochroism
Weak

X = very light yellow to light yellow; Y = Z = light yellow with brownish tinge.

Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 5.345(3) Å · b = 9.250(4) Å · c = 10.256(8) Å
Cell angles
β = 99.99(6) °
Ratio a:b:c
1 : 1.731 : 1.919
Z
2
Type-locality form

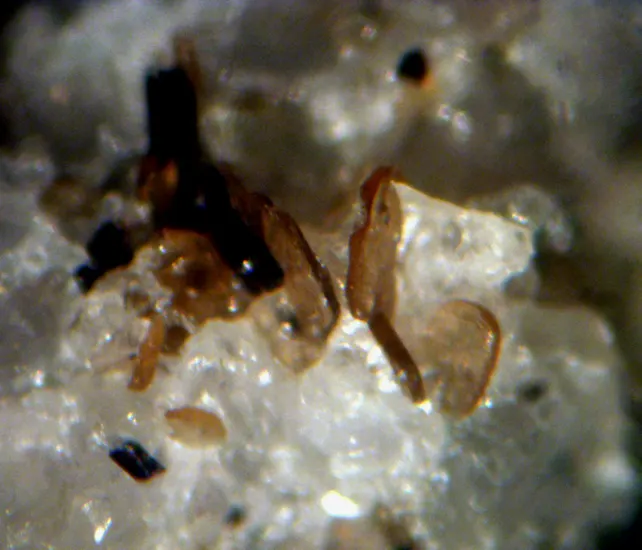

small scales, < 1 mm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
37.32%
56BaBariumBarium1137.327137.327
26.70%
12MgMagnesiumMagnesium324.30572.915
14.18%
14SiSiliconSilicon228.08556.170
10.92%
13AlAluminiumAluminium226.98253.964
10.49%
1HHydrogenHydrogen21.0082.016
0.39%
Total514.380100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Fe
  • Ca
  • Na
  • F
  • H2O

Synonyms

  • Kinoshitaliet
  • Kinoshitalit

In other languages

German
IMA 1973-011 · Kinoshitalith
Italian
Kinoshitalite
Japanese
木下雲母

Classification

Strunz
10th ed.

9.EC.35

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.35KinoshitaliteSpecies
Dana
8th ed.

71.02.2c.05

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.2c— unnamed intermediate level —Group
  • 71.02.2c.05KinoshitaliteSpecies

Group, growth & confusion

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1973Yoshii, M., Togashi, Y., Maeda, K. (1973) On the intensity changes of basal reflections with relation to barium content in manganoan phlogopite and kinoshitalite. Bulletin of the Geological Survey of Japan: 24: 543-550.
  2. 1973Yoshii, M., Maeda, K., Kato, T., Watanabe, T., Yui, S., Kato, A., Nagashima, K. (1973) Kinoshitalite, a new mineral from the Noda-Tamagawa mine, Iwate Prefecture. Chigaku Kenkyu [Geoscience Magazine], 24. 181-190
  3. 1975Fleischer, Michael; Chao, G. Y.; Kato, Ikiro (1975) New Mineral Names. American Mineralogist, 60 (5-6). 485-489
  4. 1979Kato, Toshio, Miúra, Yasunori, Yoshii, Morimasa, Maeda, Kenjiro (1979) The crystal structures of 1M-kinoshitalite, a new barium brittle mica and 1M-manganese trioctahedral micas. Mineralogical Journal, 9 (7) 392-408 doi:10.2465/minerj.9.392DOI: 10.2465/minerj.9.392
  5. 1984Guggenheim, Stephen, Kato, Toshio (1984) Kinoshitalite and Mn phlogopites: Trial refinements in subgroup symmetry and further refinement in ideal symmetry. Mineralogical Journal, 12 (1) 1-5 doi:10.2465/minerj.12.1DOI: 10.2465/minerj.12.1
