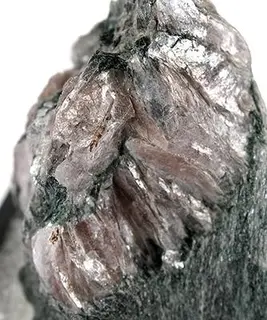

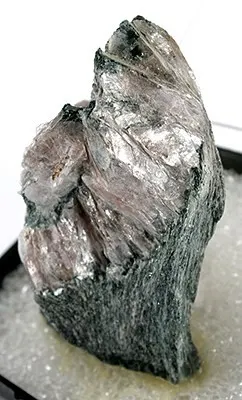

Margarite

CaAl2Si2Al2O10(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mrg
Discovered
1820
Also known as
  • Calcium Mica
  • Clingmanite
  • Corundellit
  • +12 more

Where it forms, where it's found

Type locality
Großer Greiner
  1. Finkenberg
  2. Schwaz District
  3. Tyrol
  4. Austria

47.0200°, 11.7537°

149recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Grayish · pale pink · yellow · green. Colorless in thin section.
Streak
White
Tenacity
brittle
Cleavage
Perfect

(001)

Density
2.99 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40 – 67° · 2V calc = 42 – 46°
Refractive index
1.63 – 1.65
Surface relief
Moderate
Principal indices
nα 1.630 – 1.638 · nβ 1.642 – 1.648 · nγ 1.644 – 1.65
Pleochroism
Non-pleochroic
Dispersion
r < v distinct
Extinction
Z = b; X ^ c 11°-13°; Y ^ a 6°-8°
Michel-Lévy diagramhighlighted lineδ = 0.0130
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]130 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation130 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 5.11 Å · b = 8.79 Å · c = 19.15 Å
Cell angles
β = 95.15 °
Ratio a:b:c
1 : 1.720 : 3.748
Z
4
Twinning

On composition plane (001), with twin axis [310].

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
48.22%
13AlAluminiumAluminium426.982107.928
27.10%
14SiSiliconSilicon228.08556.170
14.11%
20CaCalciumCalcium140.07840.078
10.06%
1HHydrogenHydrogen21.0082.016
0.51%
Total398.180100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Na
  • Mg
  • Cr
  • Li
  • Mn
  • Fe
  • K
  • Ba
  • Sr
  • Be
  • H2O

Synonyms

  • Calcium Mica
  • Clingmanite
  • Corundellit
  • Corundellita
  • Corundellite
  • Emerylit
  • Emerylita
  • Emerylite
  • Emeryllit
  • Emeryllita
  • Emeryllite
  • Kalkglimmer
  • Koundellit
  • Margariet
  • Perlglimmer

In other languages

French
margarite
German
Margarit · Perl-Glimmer · Perlglimmer · Rhomboedrischer Perlglimmer
Spanish
Margarita
Italian
Margarite
Portuguese
Margarita · margarite
Japanese
真珠雲母
Chinese
珍珠云母
Simplified Chinese
珍珠云母
Traditional Chinese
珍珠雲母
Russian
Маргарит

Classification

Strunz
10th ed.

9.EC.30

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.30MargariteSpecies
Dana
8th ed.

71.02.2c.01

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.2c— unnamed intermediate level —Group
  • 71.02.2c.01MargariteSpecies
CIM

16.9.13

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.9Aluminosilicates of CaGroup
  • 16.9.13MargariteSpecies

Group, growth & confusion

Often grow together
9 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1821von Senger, W.E. (1821) Versuch einer Oryctographie der gefürsteten Grafschaft Tirol. Wagner.
  2. 1924Shannon, Earl V. (1924) Chromium colored margarite from Montgomery County, Maryland. American Mineralogist, 9 (9) 194
  3. 1932Ross, Clarence S., Kerr, Paul F. (1932) The manganese minerals of a vein near Bald Knob, North Carolina. American Mineralogist, 17 (1) 1-18
  4. 1961Althaus, Egon; Winkler, Helmut G. F. (1961) Einfluß von Anionen auf metamorphe Mineralreaktionen. Die Naturwissenschaften, 48 (15). 521-522 doi:10.1007/bf00595337DOI: 10.1007/bf00595337
  5. 1963Deer, W.A., Howie, R.A., Zussman, J. (1963) Rock-forming minerals, v. 3, sheet silicates: 95-98.
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Margarite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/margarite-2573},
  note      = {Accessed 2026-05-11}
}
