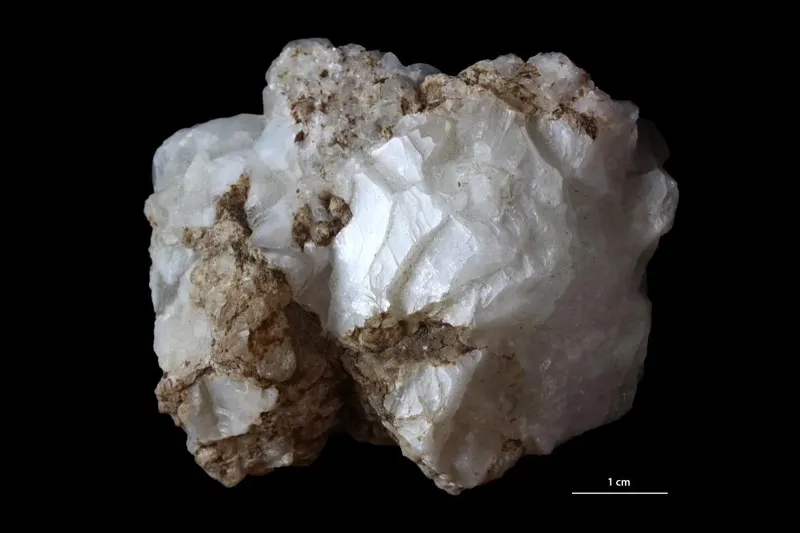

Colemanite

CaB3O4(OH)3 · H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cole
Discovered
1884
Also known as
  • Borspar
  • Neocolemanit
  • Neocolemanita
  • +1 more

Where it forms, where it's found

Geological setting

Evaporite borate deposit.

Borate deposits formed in arid alkalai lacustrine environments.

Type locality
Furnace Creek Mining District (Furnace Creek Borate Mining District)
  1. Inyo County
  2. California
  3. USA

36.3722°, -116.7667°

109recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless · white · yellowish · grey · colourless in transmitted light
Streak
White
Cleavage
Perfect

On (010) perfect; on (001) distinct.

Fracture
Irregular/Uneven · Sub-Conchoidal
Density
2.423 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 55 – 56° · 2V calc = 56°
Refractive index
1.586 – 1.614
Surface relief
Moderate
Principal indices
nα 1.586 · nβ 1.592 · nγ 1.614
Dispersion
relatively weak r > v
Extinction
X = b; Y ∧ c = -6°; Z ∧ c = 84°.
UV response
Bright pale yellow fluorescence, may phosphoresce pale green.
Michel-Lévy diagramhighlighted lineδ = 0.0280
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]280 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation280 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 8.712(2) Å · b = 11.247(3) Å · c = 6.091(1) Å
Cell angles
β = 110.12 °
Ratio a:b:c
1 : 1.291 : 0.699
Z
2
Morphology

Crystals commonly short prismatic [001] with large (110), large to small (001) and complex terminations; pseudo-rhombohedral with large (110) and (_301); pseudo-octahedral with large (_221) and (011). Massive, cleavable to granular and compact.

Type-locality form

Like semi-crystalline calcite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen815.999127.992
62.27%
20CaCalciumCalcium140.07840.078
19.50%
5BBoronBoron310.81032.430
15.78%
1HHydrogenHydrogen51.0085.040
2.45%
Total205.540100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Borspar
  • Neocolemanit
  • Neocolemanita
  • Neocolemanite

In other languages

French
Colémanite · Néocolémanite
German
Colemanit
Spanish
colemanita
Italian
colemanite
Portuguese
colemanita · Colemanite
Japanese
コールマン石
Chinese
硬硼钙石
Russian
Колеманит
Arabic
كوليمانيت

Classification

Strunz
10th ed.

6.CB.10

  • 6BoratesClass
  • 6.CTriboratesDivision
  • 6.CBIno-triboratesGroup
  • 6.CB.10ColemaniteSpecies
Dana
8th ed.

26.03.05.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.03TriboratesType
  • 26.03.05— unnamed intermediate level —Group
  • 26.03.05.01ColemaniteSpecies
CIM

9.3.14

  • 9BoratesClass
  • 9.3Borates of Ca and SrGroup
  • 9.3.14ColemaniteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1883Neuschwander in Hanks, H.G. (1883) Report on the borax deposits of California and Nevada, Borax minerals and those containing boracic acid in small quantities. Third Report of the State Mineralogist, California: 3: 81-89.
  2. 1884Evans, J.T. (1884) Colemanite. California Academy of Science Bulletin: 1: 57-59.
  3. 1884Jackson, A.W., Jr. (1884) On colemanite, a new borate of lime, American Journal of Science, 3rd. series: 28: 447-448.
  4. 1885Evans, J.T. (1885) The chemical properties and relations of colemanite. California Academy of Science Bulletin: 1(2): 37-42.
  5. 1885Hiortdahl, Th. (1885) Colemanit, ein krystallisirtes Kalkborat aus Californien: Vidensk, selsk. Christiania Forh., 1884, 10(8): pp., 1885 [also Zeitschr. Kristallographic, Band 10, pp. 25-31, 1885].
