Cuprotungstite

Cu2+3(WO4)2(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ctgs
Discovered
1869
Also known as
  • Cupritungstit
  • Cuproscheelite
  • Cuprotungstiet
  • +1 more

Where it forms, where it's found

Type locality
La Paz
  1. La Paz Municipality
  2. Baja California Sur
  3. Mexico
53recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Emerald green · brown · olive-green · pistachio-green
Streak
Greenish gray to greenish yellow
Density
5.4 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
2.1 – 2.18
Surface relief
Very high
Principal indices
nω 2.18 · nε 2.1
Michel-Lévy diagramhighlighted lineδ = 0.0800
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]800 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation800 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#167
Cell parameters
a = 8.93 Å · c = 14.48 Å
Z
12
Morphology

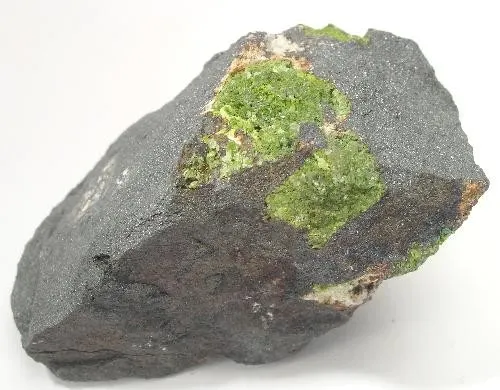

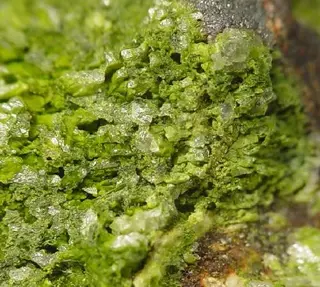

Crystals minute, dipyramidal; forms microcrystalline aggregates of botryoidal globules, incrustations, and veinlets; also compact to friable massive.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
74WTungstenTungsten2183.840367.680
51.04%
29CuCopperCopper363.546190.638
26.47%
8OOxygenOxygen1015.999159.990
22.21%
1HHydrogenHydrogen21.0082.016
0.28%
Total720.324100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Cupritungstit
  • Cuproscheelite
  • Cuprotungstiet
  • Tungstate de cuivre

In other languages

German
Cuprotungstit
Italian
Cuprotungstite

Classification

Strunz
10th ed.

7.GB.15

  • 7SulfatesClass
  • 7.GMolybdates, Wolframates and NiobatesDivision
  • 7.GBWith additional anions and/or H2OGroup
  • 7.GB.15CuprotungstiteSpecies
Dana
8th ed.

48.03.02.01

  • 48Anhydrous Molybdates and TungstatesClass
  • 48.03Basic Anhydrous Molybdates and TungstatesType
  • 48.03.02— unnamed intermediate level —Group
  • 48.03.02.01CuprotungstiteSpecies
CIM

27.4.1

  • 27Sulphites, Chromates, Molybdates and TungstatesClass
  • 27.4TungstatesGroup
  • 27.4.1CuprotungstiteSpecies

Group, growth & confusion

Often grow together
3 minerals

Literature, links & citation

Citations
  1. 1866Whitney (1866) Proceedings of the California Academy of Science: 3: 287 (as Cuproscheelite).
  2. 1869Adam, G.J. (1869) VIII Famille Wolframides 275 Cuprotungstite. in Tableau Minéralogique, Libraire des Corps Impériaux des Ponts et Chaussées es des Mines (Paris) 32-32.
  3. 1869Domeyko (1869) Annales des mines: 16: 537 (as Tungstate de cuivre).
  4. 1892Dana, Edward Salisbury; Dana, James Dwight (1892) A System of Mineralogy (6th ed.). John Wiley & Sons, Inc.
  5. 1917Hess (1917) U.S. Geological Survey Bulletin 652: 32.
