Ferroberaunite

Fe2+Fe3+5(PO4)4(OH)5 · 6H2O
IMA status
  • Approved
IMA symbol
Fbru
IMA approved
2021
Also known as
  • Ferroberauniet
  • Ferroberaunite (of Sparrow)
  • IMA2021-036

Where it forms, where it's found

Geological setting

iron mine

Type locality
Gravel Hill Mine (Cliff Iron Mine
  1. Penhale Iron Mine)
  2. Perran Iron Lode (Great Perran Iron Lode)
  3. Perranzabuloe
  4. Cornwall
  5. England
  6. UK

50.3742°, -5.1450°

30recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Green · dark greenish-brown · green · grading to gray
Streak
pale olive-green
Tenacity
brittle
Cleavage
Very Good

parallel to (100)

Fracture
Irregular/Uneven
Density
2.94 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 68° · 2V calc = 79°
Refractive index
1.736 – 1.786
Surface relief
High
Principal indices
nα 1.736 · nβ 1.765 · nγ 1.786
Pleochroism
Strong

X = bluish-green >> Z = green > Y = yellow

Dispersion
strong, r > v; orientation is Y = b; X ≈ a, Z ≈ c.
Michel-Lévy diagramhighlighted lineδ = 0.0500
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]500 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation500 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 20.8708(3) Å · b = 5.1590(8) Å · c = 19.2263(3) Å
Cell angles
β = 93.3186(17) °
Ratio a:b:c
1 : 0.247 : 0.921
Z
4
Twinning

twinning is on (100)

Type-locality form

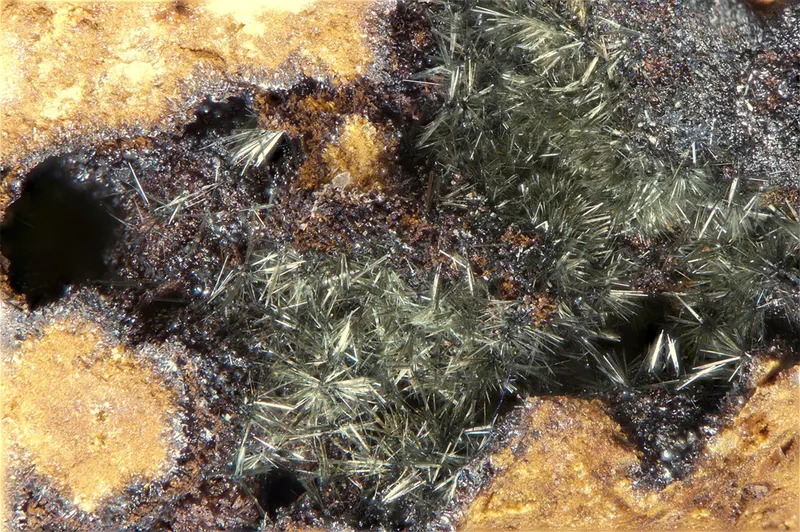

flattened prismatic crystals up to 400 μm long

Comment

Greenish black "beraunite" (probably ferroberaunite) has: a = 20.953(8), b = 5.171(1), c = 19.266(4) Å, β = 93.34°.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2715.999431.973
47.57%
26FeIronIron655.845335.070
36.90%
15PPhosphorusPhosphorus430.974123.896
13.64%
1HHydrogenHydrogen171.00817.136
1.89%
Total908.075100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferroberauniet
  • Ferroberaunite (of Sparrow)
  • IMA2021-036

In other languages

German
Ferroberaunit · IMA 2021-036
Italian
ferroberaunite · IMA2021-036

Classification

Strunz
10th ed.

8.DC

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DCFerroberauniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1840Breithaupt, A. (1840) Beraunit, ein neues Glied der Phyllit-Ordnung. Journal für praktische Chemie: 20: 66-67.
  2. 1841Breithaupt, A. (1841) Vollständige Handbuch der Mineralogie. Vol. 2: 156.
  3. 1853Breithaupt, A. (1853) Berg.- und hüttenmännisches Zeitung, Freiberg, Leipzig (merged into Glückauf): 402.
  4. 1867Bořický (1867) Konigliche Akademie der Wissenschaften, Vienna, Sitzber.: 56.
  5. 1881Streng (1881) Jahrbuch Min.: I: 102.
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Ferroberaunite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/ferroberaunite-55602},
  note      = {Accessed 2026-05-11}
}
