Zincoberaunite

ZnFe3+5(PO4)4(OH)5 · 6H2O
IMA status
  • Approved
IMA symbol
Zbru
IMA approved
2016
Also known as
  • IMA2015-117
  • Zincoberauniet

Where it forms, where it's found

Geological setting

Granite pegmatite

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

4recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
Pale olive green to black
Cleavage
Distinct/Good

Good on (100)

Fracture
Splintery
Density
2.92 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 80°
Refractive index
1.745 – 1.77
Surface relief
High
Principal indices
nα 1.745 · nβ 1.760 · nγ 1.770
Pleochroism
Strong

X = Y (pale beige) < Z (light orange-brown)

Dispersion
Distinct, r < ν
UV response
Not fluorescent
Notes

Y = b, Z ≈ c

Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 20.837(2) Å · b = 5.1624(4) Å · c = 19.250(1) Å
Cell angles
β = 93.252(5) °
Ratio a:b:c
1 : 0.248 : 0.924
Unit cell volume
2067.3 ų
Z
4
Morphology

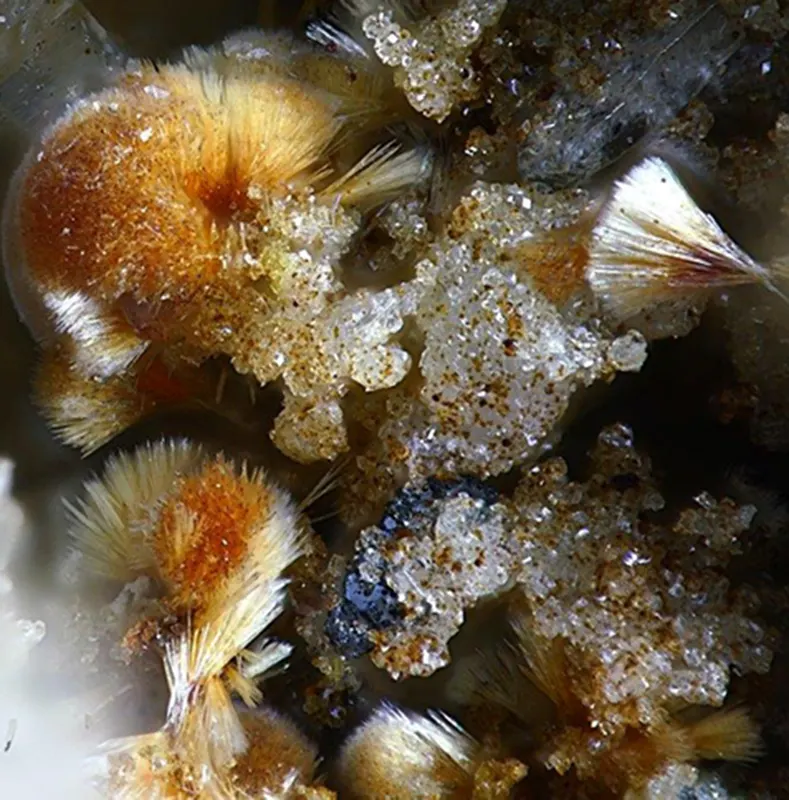

Radial or randomly oriented aggregates of flexible fibers up to 1.5 mm long and up to 3 μm thick. Elongated along [010] and somewhat flattened on (100).

Type-locality form

Radial or randomly oriented aggregates of flexible fibers up to 1.5 mm long and up to 3 μm thick.

Comment

Cell parameters given for the holotype at room temperature

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2715.999431.973
47.08%
26FeIronIron555.845279.225
30.43%
15PPhosphorusPhosphorus430.974123.896
13.50%
30ZnZincZinc165.38065.380
7.12%
1HHydrogenHydrogen171.00817.136
1.87%
Total917.610100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2015-117
  • Zincoberauniet

In other languages

German
IMA 2015-117 · Zincoberaunit
Spanish
Zincoberaunita
Italian
IMA2015-117 · zincoberaunite

Classification

Strunz
10th ed.

8.DC.27

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.27ZincoberauniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S.J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter no 30. Mineralogical Magazine, 80 (2) 407-413 doi:10.1180/minmag.2016.080.081DOI: 10.1180/minmag.2016.080.081
  2. 2017Chukanov, Nikita V., Pekov, Igor V., Grey, Ian E., Price, Jason R., Britvin, Sergey N., Krzhizhanovskaya, Maria G., Kampf, Anthony R., Dünkel, Bernhard, Keck, Erich, Belakovskiy, Dmitry I., MacRae, Colin M. (2017) Zincoberaunite, ZnFe3+5(PO4)4(OH)5⋅6H2O, a new mineral from the Hagendorf South pegmatite, Germany. Mineralogy and Petrology, 111 (3) 351-361 doi:10.1007/s00710-016-0482-y DOI: 10.1007/s00710-016-0482-y
  3. 2020Tvrdý, J., Plášil, J., Škoda, R. (2020) New crystal-chemical data on zincoberaunite from Krásno near Horní Slavkov (Czech Republic) Journal of GEOsciences, 65 (1) 45-57
  4. 2020(2020) Zincoberaunite. Handbook of Mineralogy. Mineralogical Society of America
