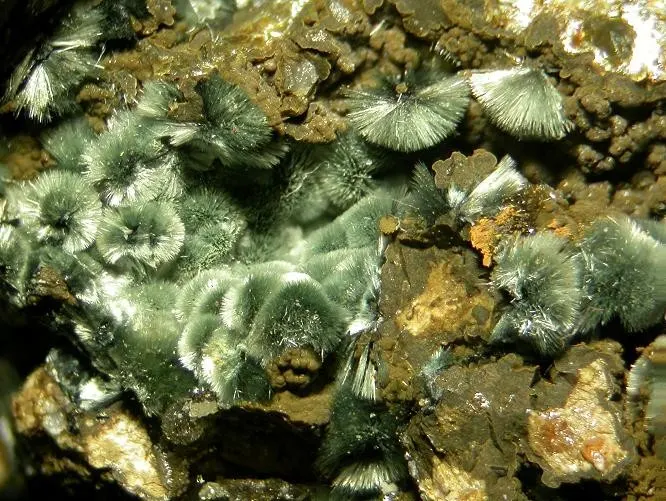

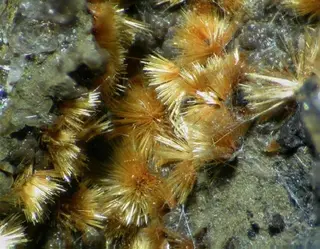

Beraunite

Fe3+6(PO4)4O(OH)4 · 6H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Bru
Discovered
1841
Also known as
  • Berauniet
  • Dufreniberaunite

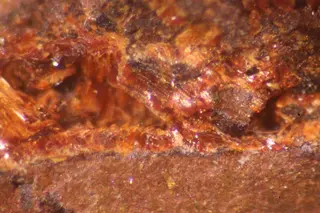

  • Eleonorite

Where it forms, where it's found

Geological setting

Bog iron ores, alteration of triphyllite in granitic pegmatites.

Type locality
Hrbek Mine
  1. Svatá Dobrotivá (St Benigna)
  2. Zaječov
  3. Beroun District
  4. Central Bohemian Region
  5. Czech Republic

49.7595°, 13.8351°

153recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Dark red · reddish · brown-red
Streak
Olive drab (unoxidized)
Tenacity
brittle
Cleavage
Distinct/Good

Good on (100)

Fracture
Irregular/Uneven · Splintery
Density
2.8 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 30 – 60° · 2V calc = 66°
Refractive index
1.707 – 1.82
Surface relief
High
Principal indices
nα 1.707 – 1.775 · nβ 1.735 – 1.786 · nγ 1.738 – 1.820
Birefringence
0.031
Pleochroism
Visible
Dispersion
relatively weak
Extinction
Y^c = 1.5-5°, Z = b (unoxidized)
UV response
Not fluorescent in UV.
Notes

Colors depend on state of oxidation; The low RI represents beraunite (redefined as mixed valence iron phosphate). Oxidation results in higher refractive indices and approach the original eleonorite.

Michel-Lévy diagramhighlighted lineδ = 0.0310
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]310 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation310 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
Cc
Cell parameters
a = 20.653(2) Å · b = 5.1433(6) Å · c = 19.241(2) Å
Cell angles
β = 93.56(9) °
Ratio a:b:c
1 : 0.249 : 0.932
Morphology

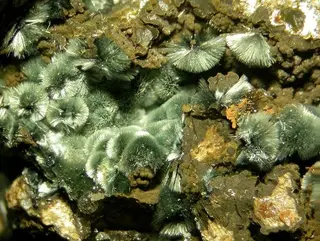

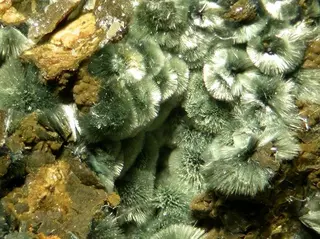

Crystals rare and small, tabular (100), elongated [010], striated on (100) parallel to [010]. Coarse radial-fibrous aggregates; globular; discoidal with a coarse-fibrous structure; as crusts.

Twinning

On (100), may be interpenetrant.

Type-locality form

Dark red to orange crystals

Comment

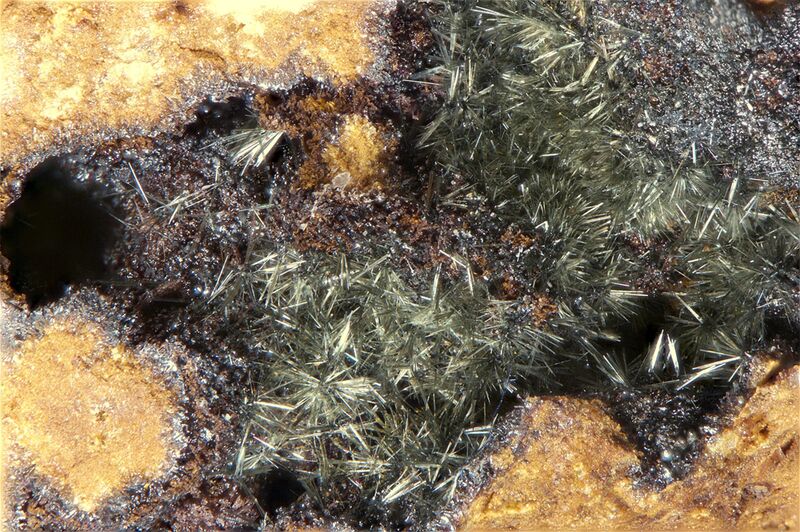

Space group Cc determined by Vrtiška et al. (2022); previously assumed to be C2/c. Cell-parameter values for restudied type material (Vrtiška et al., 2022). Data for orange material: a = 20.646, b = 5.129, c = 19.212 Å, β = 93.67°. Greenish black material (probably ferroberaunite) has: a = 20.953(8), b = 5.171(1), c = 19.266(4) Å, β = 93.34°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2715.999431.973
47.62%
26FeIronIron655.845335.070
36.94%
15PPhosphorusPhosphorus430.974123.896
13.66%
1HHydrogenHydrogen161.00816.128
1.78%
Total907.067100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Berauniet
  • Dufreniberaunite
  • Eleonorite

In other languages

French
Béraunite
German
Beraunit
Spanish
Beraunita
Italian
beraunite · eleonorite
Japanese
ベラウナイト · ベラウン石

Classification

Strunz
10th ed.

8.DC.27

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DCWith only medium-sized cations, (OH, etc.):RO4 = 1:1 and < 2:1Group
  • 8.DC.27BerauniteSpecies
Dana
8th ed.

42.11.16.01

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.11(AB)3(XO4)2Zq·xH2OType
  • 42.11.16— unnamed intermediate level —Group
  • 42.11.16.01BerauniteSpecies
CIM

19.13.10

  • 19PhosphatesClass
  • 19.13Phosphates of Fe aloneGroup
  • 19.13.10BerauniteSpecies

Group, growth & confusion

In the same group
3 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1840Breithaupt, A. (1840) Beraunit, ein neues Glied der Phyllit-Ordnung. Journal für praktische Chemie: 20: 66-67.
  2. 1841Breithaupt, A. (1841) Vollständige Handbuch der Mineralogie. Vol. 2: 156.
  3. 1853Breithaupt, A. (1853) Berg.- und hüttenmännisches Zeitung, Freiberg, Leipzig (merged into Glückauf): 402.
  4. 1867Bořický (1867) Konigliche Akademie der Wissenschaften, Vienna, Sitzber.: 56.
  5. 1881Streng (1881) Jahrbuch Min.: I: 102.
