Ferrosilite

Fe2+2Si2O6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Fs
Discovered
1935
Also known as
  • Eisenhypersthen
  • Eulit
  • Eulite
  • +4 more

Where it forms, where it's found

95recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Dark brown to black.

Bright-green ferrosilite has not been chemically verified, althought it has been verified by XRD as an orthopyroxene.

Streak
Pale gray brown
Tenacity
brittle
Cleavage
Very Good

(210)

Fracture
Irregular/Uneven · Splintery
Density
3.60 g/cm³

Optical

Optical type
Biaxial (+)
Refractive index
1.71 – 1.788
Surface relief
High
Principal indices
nα 1.71 – 1.767 · nβ 1.723 – 1.77 · nγ 1.726 – 1.788
Birefringence
0.016-0.021
Pleochroism
Weak

X pinkish brown, Z greenish brown

Dispersion
r > v moderate
Extinction
Parallel
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#61
Cell parameters
a = 18.43 Å · b = 9.08 Å · c = 5.23 Å
Ratio a:b:c
1 : 0.493 : 0.284
Z
8
Morphology

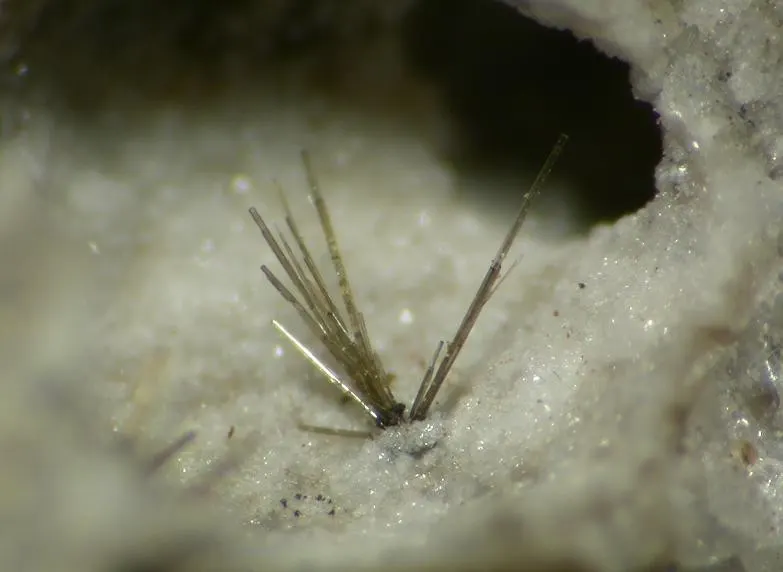

Usually in elongated grains; rare crystals are bladed to prismatic.

Parting
(100), (010)
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron255.845111.690
42.33%
8OOxygenOxygen615.99995.994
36.38%
14SiSiliconSilicon228.08556.170
21.29%
Total263.854100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ca
  • Na
  • K
  • Al
  • Co
  • Ni
  • Mn
  • Ti
  • Cr

Synonyms

  • Eisenhypersthen
  • Eulit
  • Eulite
  • Eulysit
  • Ferrohypersthene
  • O-ferrosilit
  • O-ferrosilite

In other languages

French
Ferrosilite · Orthoferrosilite
German
Eisensilikate · Ferrosilit
Italian
Ferrosilite

Classification

Strunz
10th ed.

9.DA.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DAInosilicates with 2-periodic single chains, Si2O6; pyroxene familyGroup
  • 9.DA.05FerrosiliteSpecies
Dana
8th ed.

65.01.02.02

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.02OrthopyroxenesGroup
  • 65.01.02.02FerrosiliteSpecies
CIM

14.19.2

  • 14Silicates not Containing AluminumClass
  • 14.19Silicates of FeGroup
  • 14.19.2FerrosiliteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral
Commonly confused with
6 minerals

Literature, links & citation

Citations
  1. 1903Washington, H.S. (1903) Prof. Paper U.S. Geol. Survey, n° 14, 90.
  2. 1932Washington, H.S. (1932) Min. Petr. Mitt. (Tschermak), vol. 43, 63 [M.A. 5-222].
  3. 1935Bowen, N.L. (1935), Ferrosilite as a natural mineral: American Journal of Science, 5th. Series: 30: 481
  4. 1935Henry, N. F. M. (1935) Some data on the iron-rich hypersthenes. Mineralogical Magazine and Journal of the Mineralogical Society, 24 (151) 221-226 doi:10.1180/minmag.1935.024.151.04 DOI: 10.1180/minmag.1935.024.151.04
  5. 1951Poldervaart, A., Hess, H. H. (1951) Pyroxenes in the Crystallization of Basaltic Magma. The Journal of Geology, 59 (5) 472-489 doi:10.1086/625891DOI: 10.1086/625891
