Clinoferrosilite

Fe2+2Si2O6
IMA status
  • Approved
  • Grandfathered
IMA symbol
Cfs
Discovered
1935
Also known as
  • Clinoferrosiliet
  • Clinoferrosilit

Where it forms, where it's found

Geological setting

Lithophysae of obsidian.

Type locality
Obsidian Cliff
  1. Park County
  2. Wyoming
  3. USA

44.8218°, -110.7279°

15recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Brown · colourless · green
Streak
White
Cleavage
Distinct/Good
Density
4.068 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 25° · 2V calc = 40°
Refractive index
1.764 – 1.792
Surface relief
High
Principal indices
nα 1.764 · nβ 1.767 · nγ 1.792
Dispersion
very strong
Extinction
Z ∧ c = 31°.
Michel-Lévy diagramhighlighted lineδ = 0.0280
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]280 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation280 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 9.7085 Å · b = 9.0872 Å · c = 5.2284 Å
Cell angles
β = 108.432 °
Ratio a:b:c
1 : 0.936 : 0.539
Z
4
Type-locality form

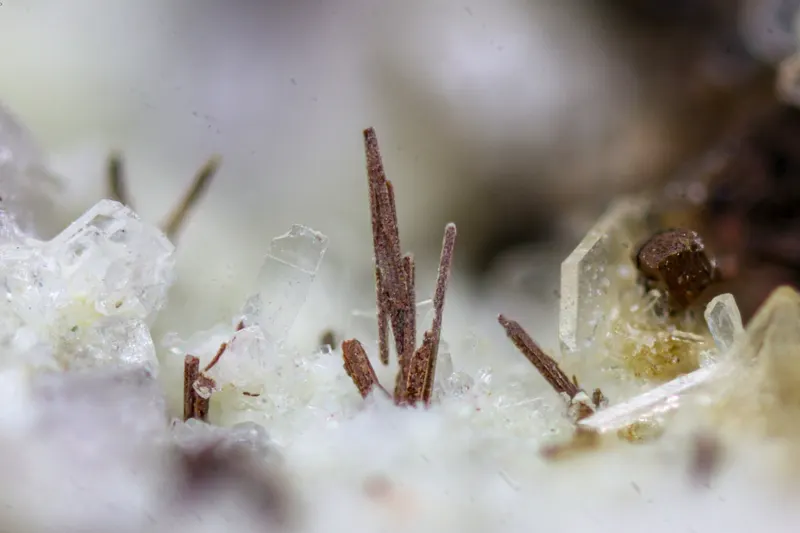

Needles about 0.05 x 0.005 mm in size.

Comment

Synthetic sample (pure Fe2Si2O6). Mg-bearing sample has 9.53, 9.21, 5.15 Å, 107.63°.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron255.845111.690
42.33%
8OOxygenOxygen615.99995.994
36.38%
14SiSiliconSilicon228.08556.170
21.29%
Total263.854100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Clinoferrosiliet
  • Clinoferrosilit

In other languages

German
Klinoferrosilit
Italian
Clinoferrosilite

Classification

Strunz
10th ed.

9.DA.10

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DAInosilicates with 2-periodic single chains, Si2O6; pyroxene familyGroup
  • 9.DA.10ClinoferrosiliteSpecies
Dana
8th ed.

65.01.01.02

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.01Single-Width Unbranched Chains, W=1 with chains P=2Type
  • 65.01.01P2/c clinopyroxenesGroup
  • 65.01.01.02ClinoferrosiliteSpecies
CIM

14.21.4

  • 14Silicates not Containing AluminumClass
  • 14.21Silicates of Fe and MgGroup
  • 14.21.4ClinoferrosiliteSpecies

Group, growth & confusion

Commonly confused with
5 minerals

Literature, links & citation

Citations
  1. 1935Bowen N L (1935) “Ferrosilite” as a natural mineral. American Journal of Science 30, 481-494
  2. 1936Foshag, W.F. (1936) New mineral names. American Mineralogist: 21: 678.
  3. 1951Poldervaart, A., Hess, H. H. (1951) Pyroxenes in the Crystallization of Basaltic Magma. The Journal of Geology, 59 (5) 472-489 doi:10.1086/625891DOI: 10.1086/625891
  4. 1969Clark, J.R., Appleman, D.E., and Papike, J.J. (1969) Crystal-chemical characterization of clinopyroxenes based on eight new structure refinements. MSA Special Paper: 2: 31-50.
  5. 1984Sueno, Shigeho, Kimata, Mitsuyoshi, Prewitt, Charles T. (1984) The crystal structure of high clinoferrosilite. American Mineralogist, 69 (3-4) 264-269
