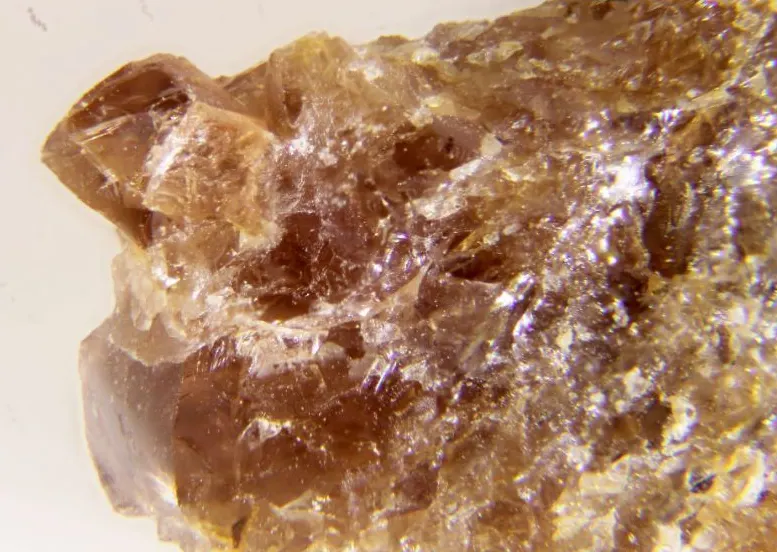

Pyroxferroite

Fe2+SiO3
IMA status
  • Approved
IMA symbol
Pxf
Discovered
1970
Also known as
  • IMA1970-001

Where it forms, where it's found

Type locality
Mare Tranquillitatis (Sea of Tranquility)
  1. The Moon

8.5000°, 31.4000°

20recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Pale yellow · orange-yellow · yellow · light brown
Cleavage
Distinct/Good

Good on (010), poor on (001)

Density
3.68 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 34 – 40° · 2V calc = 50 – 58°
Refractive index
1.748 – 1.768
Surface relief
High
Principal indices
nα 1.748 – 1.756 · nβ 1.750 – 1.758 · nγ 1.767 – 1.768
Pleochroism
Weak

pale yellow to yellow-orange.

Dispersion
r < v marked
Michel-Lévy diagramhighlighted lineδ = 0.0155
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]155 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation155 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Cell parameters
a = 6.6213 Å · b = 7.5506 Å · c = 17.3806 Å
Cell angles
α = 144.267 ° · β = 82.684 ° · γ = 94.756 °
Ratio a:b:c
1 : 1.140 : 2.625
Z
14
Type-locality form

discrete grains

Comment

Point Group: _1 or 1; Space Group: P_1 or P1.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron155.84555.845
42.33%
8OOxygenOxygen315.99947.997
36.38%
14SiSiliconSilicon128.08528.085
21.29%
Total131.927100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Mg
  • Na

Synonyms

  • IMA1970-001

In other languages

French
Pyroxferroite
German
IMA1970-001 · Pyroxferroit
Italian
Pirossiferroite
Portuguese
Piroxferroíta
Japanese
パイロクスフェロアイト · パイロクス鉄石
Chinese
三斜鐵輝石
Russian
Пироксферроит

Classification

Strunz
10th ed.

9.DO.05

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DOInosilicates with 7-, 8-, 10-, 12- and 14-periodic chainsGroup
  • 9.DO.05PyroxferroiteSpecies
Dana
8th ed.

65.06.01.02

  • 65Inosilicates Single-width, Unbranched Chains, (w=1)Class
  • 65.06Single-Width Unbranched Chains, W=1 with chains P=7Type
  • 65.06.01Pyroxmangite groupGroup
  • 65.06.01.02PyroxferroiteSpecies
CIM

14.22.2

  • 14Silicates not Containing AluminumClass
  • 14.22Silicates of Fe and CaGroup
  • 14.22.2PyroxferroiteSpecies

Group, growth & confusion

Often grow together
1 mineral
Commonly confused with
5 minerals

Literature, links & citation

Citations
  1. 1970Fleischer, Michael (1970) New Mineral Names. American Mineralogist, 55 (11-12) 2135-2139
  2. 1970Chao, E.C.T., Minkin, J.A., Frondel, C., Klein, C., Drake, J.C., Fuchs, L., Tani, B., Smith, J.V., Anderson, A.T., Moore, P.B., Zechman, G.R., Traill, R.J., Plant, A.G., Douglas, J.A.V., Dence, M.R. (1970) Pyroxferroite, a new calcium-bearing iron silicate from Tranquillity Base. Geochimica et Cosmochimica Acta, 34. Elsevier BV. 65-79 doi:10.1016/0016-7037(70)90170-5DOI: 10.1016/0016-7037(70)90170-5
  3. 1971Burnham, C. (1971) The crystal structure of pyroxferroite from Mare Tranquilitatis. Supplement to Geochemica et Cosmochimica Acta: 34(2): 47-57.
  4. 2001(2001) Pyroxferroite. Handbook of Mineralogy. Mineralogical Society of America
  5. 2007Nikischer, T., Orosz, J. (2007) Lunar Mineral Found at Franklin, Sussex Co., New Jersey. Mineral News, 23 (8) Excalibur Mineral Corp. 1-2
