Florencite-(Sm)

SmAl3(PO4)2(OH)6
IMA status
  • Approved
IMA symbol
Flo-Sm
IMA approved
2009
Also known as
  • Florenciet-(Sm)
  • IMA2009-074

Where it forms, where it's found

Geological setting

In quartz veins cutting quartz meta-conglomerate beds near the contact with underlying Al-enriched metasomatites.

Type locality
Svodovyi area
  1. Grubependity Lake
  2. Maldynyrd range (Maldy-nyrd range)
  3. Kozhim River Basin
  4. Komi Republic
  5. Russia

65.1881°, 60.1628°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless

Pale pink to pale yellow in aggregates.

Streak
White
Tenacity
brittle
Cleavage
Distinct/Good

on (0001)

Fracture
Irregular/Uneven
Density
3.70 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.704 – 1.713
Surface relief
High
Principal indices
nω 1.704 · nε 1.713
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0090
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]90 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation90 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#99
Cell parameters
a = 6.972(4) Å · c = 16.182(7) Å
Unit cell volume
681.2 ų
Z
3
Morphology

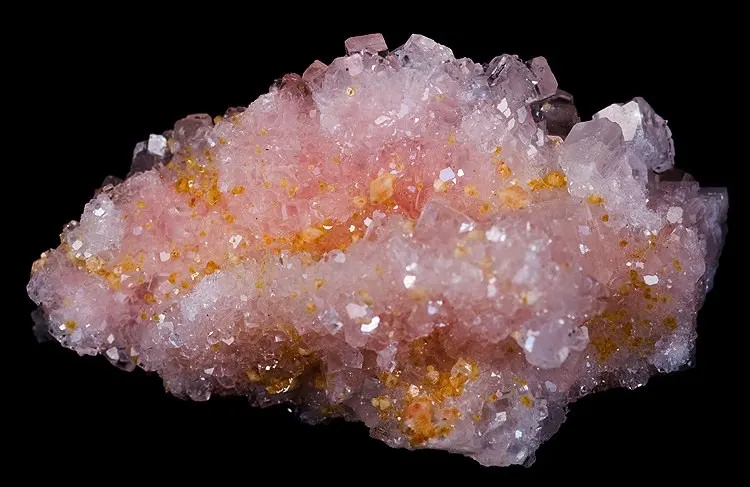

In the inner part of acute rhombohedral florencite-(Ce) crystals.

Parting
Observed parallel to (1120).
Type-locality form

Thin zones within rhombohedral crystals of florencite-(Ce). The thickness of particular florencite-(Sm) zones is 0.01–0.1 mm, and the total thickness of a series of such zones is 1–3 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
42.80%
62SmSamariumSamarium1150.360150.360
28.73%
13AlAluminiumAluminium326.98280.946
15.47%
15PPhosphorusPhosphorus230.97461.948
11.84%
1HHydrogenHydrogen61.0086.048
1.16%
Total523.288100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Florenciet-(Sm)
  • IMA2009-074

In other languages

German
Florencit-(Sm) · IMA 2009-074
Italian
Florencite- · florencite-(Sm)
Chinese
磷鋁釤石 · 磷钐铝石

Classification

Strunz
10th ed.

8.BL.13

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BLWith medium-sized and large cations, (OH, etc.):RO4 = 3:1Group
  • 8.BL.13Florencite-(Sm)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 2010Repina, S.A., Popova, V.I., Churin, E.I., Belogub, E.V. and Chiller, V.V. (2010): Florencite-(Sm), (Sm,Nd)Al3(PO4)2(OH)6 - a new mineral of alunite-jarosite group from the Subpolar Urals. Zapiski Rossiyskogo Mineralogicheskogo Obshchestva, 139(4), 16-25 (in Russian).
  2. 2011Repina, S.A., Popova, V.I., Churin, E.I., Belogub, E.V., Khiller, V.V. (2011) Florencite-(Sm) - (Sm,Nd)Al3(PO4)2(OH)6: A new mineral species of the alunite-jarocite group from the Subpolar Urals. Geology of Ore Deposits, 53, 564-574.
  3. 2012Belakovskiy, D., Welch, M. D., Camara, F., Gatta, G. D., Tait, K. T. (2012) New Mineral Names. American Mineralogist, 97 (8) 1523-1530 doi:10.2138/am.2012.596DOI: 10.2138/am.2012.596
  4. 2014(2014) Florencite-(Sm). Handbook of Mineralogy. Mineralogical Society of America
