Gadolinite-(Ce)

Ce2Fe2+Be2O2(SiO4)2
IMA status
  • Approved
IMA symbol
Gad-Ce
IMA approved
1987
Also known as
  • Gadoliniet-(Ce)

Where it forms, where it's found

Geological setting

Syenite pegmatite.

Type locality
Buer
  1. Bjørkedalen
  2. Porsgrunn
  3. Telemark
  4. Norway

59.1703°, 9.7515°

43recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789106.5 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Colour
Black

Olive green in thin sections

Fracture
Conchoidal
Density
4.20 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70°
Refractive index
1.78 – 1.81
Surface relief
High
Principal indices
nα 1.78 · nβ 1.8 · nγ 1.81
Birefringence
mid-2nd order birefringence
Pleochroism
Non-pleochroic

pale yellow-green in thin section

Notes

The mineral is reported in numerous sources as "isotropic" with n = 1.78, but as the mineral is monoclinic, this observation was clearly done on metamict material. This assertion appears to derive from an observation on material only from Skien, Norway (Segalstad & Larsen, 1978). In contrast to the Norwegian sample, gadolinite-(Ce) from the Malmkärra mine, Norberg, Sweden is U-free and Th-free and is non-metamict. This material shows normal anisotropic optical properties consistent with a monoclinic symmetry (non-zero birefringence; biaxial nature). Note that in the absence of measured R.I. data for anisotropic gadolinite-(Ce), the listed R.I. values above are those of the analogous species gadolinite-(Nd) (but no estimate of errors is attempted). However, these values nonetheless successfully reproduce the observed birefringence and 2V° of the Malmkärra mine gadolinite-(Ce). Not unexpectedly, the overall optical properties of non-metamict gadolinite-(Ce) appear to be largely comparable to those of gadolinite-(Nd).

Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 9.8973 Å · b = 7.6282 Å · c = 4.7505 Å
Cell angles
β = 90.416 °
Ratio a:b:c
1 : 0.771 : 0.480
Type-locality form

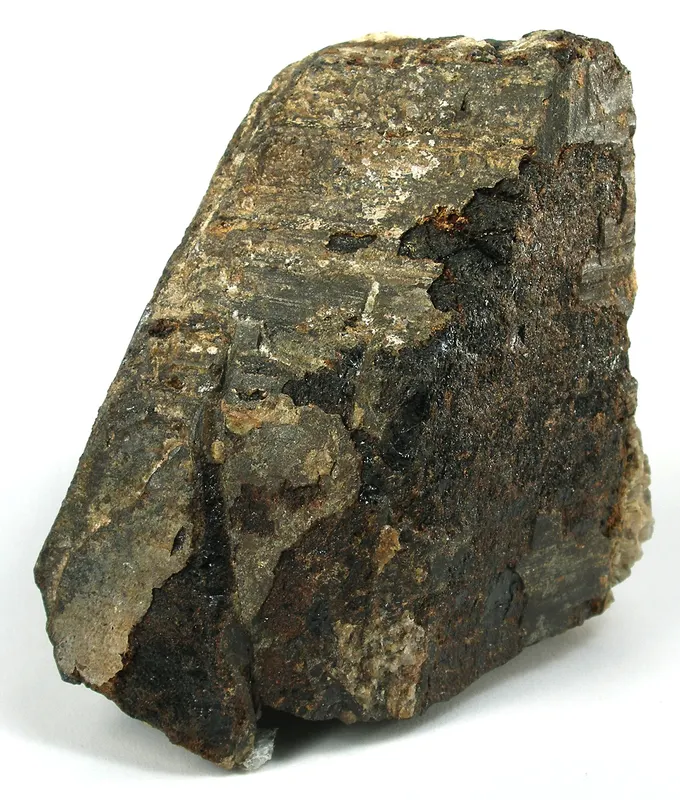

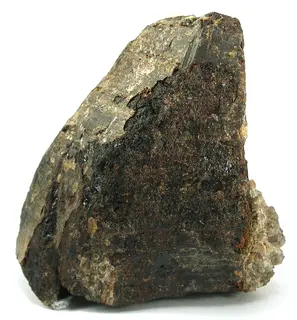

Black irregular masses up to 20 mm in matrix.

Comment

Space group P2/c was determined for material heated at 700oC

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
58CeCeriumCerium2140.116280.232
49.14%
8OOxygenOxygen1015.999159.990
28.06%
14SiSiliconSilicon228.08556.170
9.85%
26FeIronIron155.84555.845
9.79%
4BeBerylliumBeryllium29.01218.024
3.16%
Total570.261100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gadoliniet-(Ce)

In other languages

German
Gadolinit-(Ce)
Italian
Gadolinite- · gadolinite-(Ce)
Chinese
硅铍铈矿

Classification

Strunz
10th ed.

9.AJ.20

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AJNesosilicates with BO3 triangles and/or B[4], Be[4] tetrahedra, cornersharing with SiO4Group
  • 9.AJ.20Gadolinite-(Ce)Species
Dana
8th ed.

54.02.1b.02

  • 54Nesosilicates Borosilicates and Some BeryllosilicatesClass
  • 54.02Borosilicates and Some Beryllosilicates with B in [4] coordinationType
  • 54.02.1b— unnamed intermediate level —Group
  • 54.02.1b.02Gadolinite-(Ce)Species
CIM

14.3.24

  • 14Silicates not Containing AluminumClass
  • 14.3Silicates of BeGroup
  • 14.3.24Gadolinite-(Ce)Species

Group, growth & confusion

In the same group
6 members

Literature, links & citation

Citations
  1. 1978Segalstad, Tom Victor, Larsen, Alf Olav (1978) Gadolinite-(Ce) from Skien, southwestern Oslo region, Norway. American Mineralogist, 63 (1-2) 188-195
  2. 2001(2001) Gadolinite-(Ce). Handbook of Mineralogy. Mineralogical Society of America
  3. 2016Anthony, John W., Bideaux, Richard A., Bladh, Kenneth W., Nichols, Monte C. - Eds. (2016) Handbook of Mineralogy. https://www.handbookofmineralogy.org/
  4. 2017Bačík, Peter, Miyawaki, Ritsuro, Atencio, Daniel, Cámara, Fernando, Fridrichová, Jana (2017) Nomenclature of the gadolinite supergroup. European Journal of Mineralogy, 29 (6) 1067-1082 doi:10.1127/ejm/2017/0029-2659DOI: 10.1127/ejm/2017/0029-2659
