Hingganite-(Nd)

Nd2◻Be2Si2O8(OH)2
IMA status
  • Approved
IMA symbol
Hin-Nd
IMA approved
2019
Also known as
  • Hingganiet-(Nd)
  • IMA2019-028

Where it forms, where it's found

Type locality
Zagi Mountain
  1. Hameed Abad Kafoor Dheri
  2. Peshawar District
  3. Khyber Pakhtunkhwa Province
  4. Pakistan

34.1290°, 71.4098°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Dark greenish-brown
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
4.690 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 84°
Refractive index
1.746 – 1.792
Surface relief
High
Principal indices
nα 1.746 · nβ 1.766 · nγ 1.792
Pleochroism
Non-pleochroic
Dispersion
None observed
Michel-Lévy diagramhighlighted lineδ = 0.0460
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]460 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation460 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 4.77193(15) Å · b = 7.6422(2) Å · c = 9.9299(2) Å
Cell angles
β = 89.851(2) °
Ratio a:b:c
1 : 1.601 : 2.081
Unit cell volume
362.12 ų
Z
2
Parting
None observed
Type-locality form

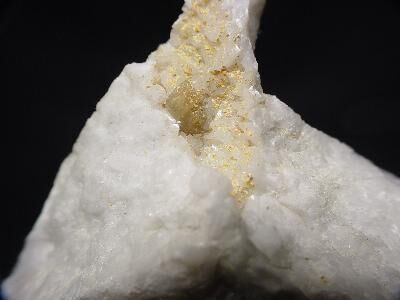

Forms zones measuring up to 1 × 1 mm2 in loose prismatic crystals up to 0.7 cm long, where it is intergrown with hingganite-(Y).

Synonyms

  • Hingganiet-(Nd)
  • IMA2019-028

In other languages

German
Hingganit-(Nd) · IMA 2019-028

Classification

Strunz
10th ed.

9.AJ

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AJNesosilicates with BO3 triangles and/or B[4], Be[4] tetrahedra, cornersharing with SiO4Group
  • 9.AJHingganite-(Nd)Species

Group, growth & confusion

In the same group
6 members

Literature, links & citation

Citations
  1. 1994Kartashov, Р.M., Lapina, M.I. (1994): New varieties of hingganite-gadolinite group minerals from alkaline-granite pegmatites of Western Mongolia. // Abstr. 16th IMA General Meeting, Pisa, 195-196.
  2. 2010Pršek, J., Ondrejka, M., Bačík, P., Budzyń, B., Uher, P. (2010) Metamorphic-hydrothermal REE minerals in the Bacúch Magnetite Deposit, Western Carpathians, Slovakia: (Sr,S)-rich monazite-(Ce) and Nd-dominant hingganite. The Canadian Mineralogist, 48 (1) 81-94 doi:10.3749/canmin.48.1.81DOI: 10.3749/canmin.48.1.81
  3. 2015MacDonald, Ray, Bagiński, Bogusław, Kartashov, Pavel M., Zozulya, Dmitry, Dzierżanowski, Piotr (2015) Interaction of rare-metal minerals with hydrothermal fluids; evidence from quartz-epidote metasomatites of the Haldzan Buragtag massif, Mongolian Altai. The Canadian Mineralogist, 53 (6). 1015-1034 doi:10.3749/canmin.1400023DOI: 10.3749/canmin.1400023
  4. 2017Bačík, Peter, Miyawaki, Ritsuro, Atencio, Daniel, Cámara, Fernando, Fridrichová, Jana (2017) Nomenclature of the gadolinite supergroup. European Journal of Mineralogy, 29 (6) 1067-1082 doi:10.1127/ejm/2017/0029-2659DOI: 10.1127/ejm/2017/0029-2659
  5. 2019Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2019) CNMNC Newsletter No 50, New minerals and nomenclature modifications approved in 2019. Mineralogical Magazine, 83 (4) 615-620 doi:10.1180/mgm.2019.46DOI: 10.1180/mgm.2019.46
