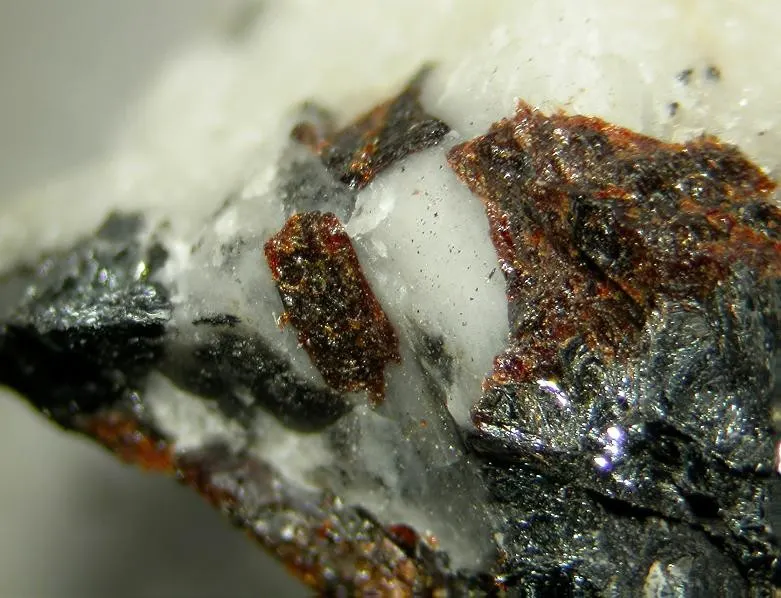

Gamagarite

Ba2Fe3+(VO4)2(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Gam
Discovered
1943
Also known as
  • Gamagariet

Where it forms, where it's found

Geological setting

Banded manganese ore.

Type locality
Gamagara Ridge
  1. Northern Cape
  2. South Africa

-28.0681°, 23.0408°

12recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Dark brown to black
Streak
Reddish brown
Cleavage
Distinct/Good

(001) and (100), distinct; (101) difficult.

Density
4.62 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 46 – 62° · 2V calc = 58°
Refractive index
2.016 – 2.13
Surface relief
Very high
Principal indices
nα 2.016 · nβ 2.04 · nγ 2.13
Pleochroism
Visible

X = red-brown; Y = very deep red-brown; Z = light salmon-buff.

Dispersion
relatively weak
Extinction
Y = b; X ∧ c = 39°–43°.
Notes

Absorption: Y > X > Z.

Michel-Lévy diagramhighlighted lineδ = 0.1140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1140 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1140 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 9.15 Å · b = 6.17 Å · c = 7.88 Å
Cell angles
β = 112.7 °
Ratio a:b:c
1 : 0.674 : 0.861
Z
2
Type-locality form

Aggregates of needles, approximately one centimeter in length, and also as somewhat flattened prisms.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
56BaBariumBarium2137.327274.654
47.57%
8OOxygenOxygen915.999143.991
24.94%
23VVanadiumVanadium250.942101.884
17.65%
26FeIronIron155.84555.845
9.67%
1HHydrogenHydrogen11.0081.008
0.17%
Total577.382100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gamagariet

In other languages

German
Gamagarit
Italian
Gamagarite

Classification

Strunz
10th ed.

8.BG.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BGWith medium-sized and large cations, (OH, etc.):RO4 = 0.5:1Group
  • 8.BG.05GamagariteSpecies
Dana
8th ed.

41.10.04.03

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.10(AB)3(XO4)2ZqType
  • 41.10.04Goedkenite GroupGroup
  • 41.10.04.03GamagariteSpecies
CIM

21.2.16

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.2Vanadates of Mg, Ca, Sr or BaGroup
  • 21.2.16GamagariteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1943de Villiers, J. E. (1943) Gamagarite, a new vanadium mineral from the Postmasburg manganese deposits. American Mineralogist, 28 (5) 329-335
  2. 1984Harlow, George E., Dunn, Pete J., Rossman, George R. (1984) Gamagarite: a re-examination and comparison with brackebuschite-like minerals. American Mineralogist, 69 (7-8) 803-806
  3. 1987Basso, R., Zefiro, L., Palenzona, A. (1987) Gamagarite: new occurrence and crystal structure refinement. Neues Jahrbuch für Mineralogie - Monatshefte, 1987. 295-304
  4. 2005(2005) Gamagarite. Handbook of Mineralogy. Mineralogical Society of America
