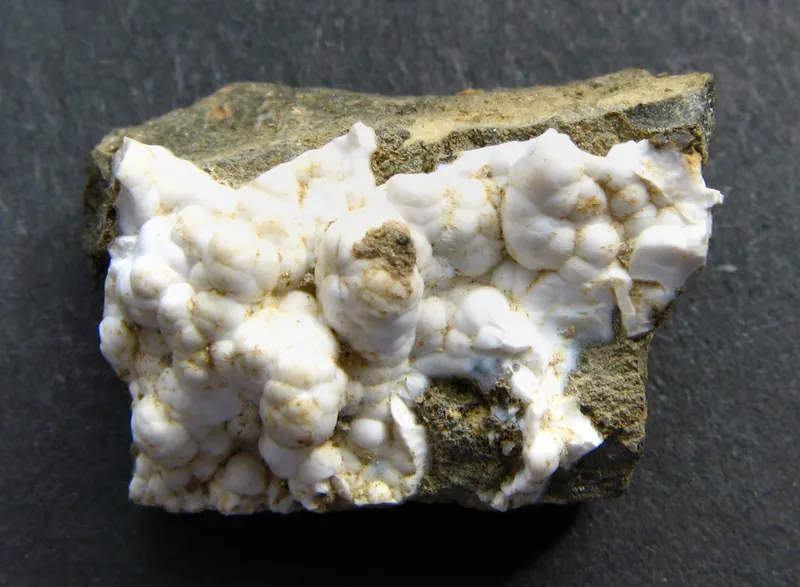

Gonnardite

(Na,Ca)2(Si,Al)5O10 · 3H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Gon
Discovered
1896
Also known as
  • Gonnardiet
  • Gonnardite-Na
  • Ranit
  • +6 more

Where it forms, where it's found

Type locality
La Chaux de Bergonne
  1. Gignat
  2. Issoire
  3. Puy-de-Dôme
  4. Auvergne-Rhône-Alpes
  5. France
193recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White · yellowish to salmon-red
Streak
White
Density
2.25 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 52° · 2V calc = 50°
Refractive index
1.514 – 1.52
Surface relief
Moderate
Principal indices
nα 1.514 · nβ 1.515 · nγ 1.52
Dispersion
strong
Extinction
X = c.
Michel-Lévy diagramhighlighted lineδ = 0.0060
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]60 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation60 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 13.38 Å · b = 13.38 Å · c = 6.66 Å
Ratio a:b:c
1 : 1.000 : 0.498
Comment

Also space group I-42d, a = 13.21(1), c = 6.622(4) A.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1315.999207.987
33.79%
14SiSiliconSilicon528.085140.425
22.82%
13AlAluminiumAluminium526.982134.910
21.92%
20CaCalciumCalcium240.07880.156
13.02%
11NaSodiumSodium222.99045.980
7.47%
1HHydrogenHydrogen61.0086.048
0.98%
Total615.506100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Gonnardiet
  • Gonnardite-Na
  • Ranit
  • Ranita
  • Ranite
  • Tetranatrolit
  • Tetranatrolita
  • Tetranatrolite
  • Tetranatrolith

In other languages

French
Gonnardite · Ranite · Tétranatrolite
German
Gonnardit
Spanish
Gonnardita · Ranita · Tetranotrolita
Italian
gonnardite
Chinese
纤沸石

Classification

Strunz
10th ed.

9.GA.05

  • 9SilicatesClass
  • 9.GTektosilicates with zeolitic H2O; zeolite familyDivision
  • 9.GAZeolites with T5O10 Units – The Fibrous ZeolitesGroup
  • 9.GA.05GonnarditeSpecies
Dana
8th ed.

77.01.05.07

  • 77Tectosilicates ZeolitesClass
  • 77.01Zeolite group - True zeolitesType
  • 77.01.05Natrolite and related speciesGroup
  • 77.01.05.07GonnarditeSpecies
CIM

16.10.5

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.10Aluminosilicates of Ca and alkalisGroup
  • 16.10.5GonnarditeSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 1896Lacroix, A. (1896) Sur la gonnardite. Bulletin de la Société Française de Minéralogie: 19: 426-429.
  2. 1932Hey, Max H. (1932) Studies on the zeolites. Part II. Thomsonite (including faroelite) and gonnardite. Mineralogical Magazine and Journal of the Mineralogical Society, 23 (137) 51-125 doi:10.1180/minmag.1932.023.137.01 DOI: 10.1180/minmag.1932.023.137.01
  3. 1956Meixner, H., Hey, M. H., Moss, A. A. (1956) Some new occurrences of gonnardite. Mineralogical Magazine and Journal of the Mineralogical Society, 31 (234) 265-271 doi:10.1180/minmag.1956.031.234.07 DOI: 10.1180/minmag.1956.031.234.07
  4. 1957Mason, Brian (1957) Gonnardite (Ranite) from Langesundsfjord, in Notiser. Norsk Geologisk Tidsskrift [Norwegian Journal of Geology], 37 (3-4). 435-437
  5. 1958Fleischer, M. (1958) New Mineral Names. American Mineralogist, 43 (9-10). 1006-1008
