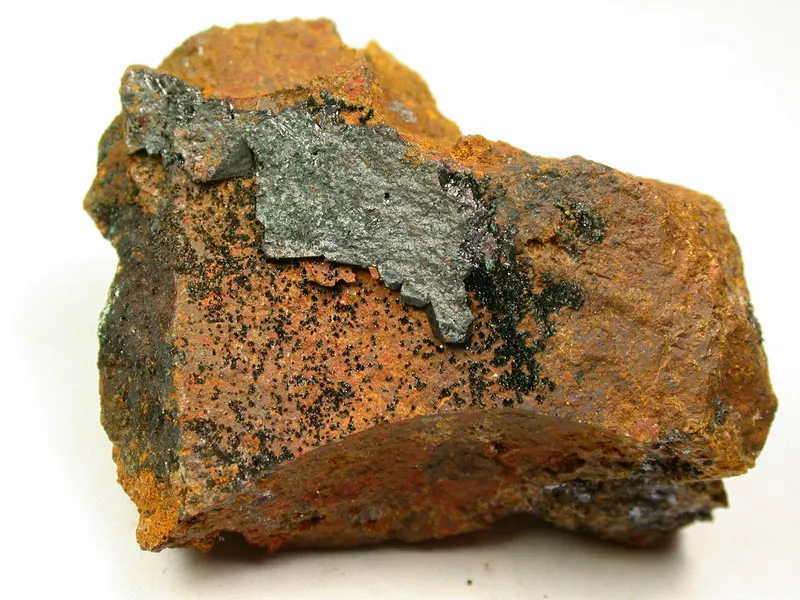

Hentschelite

CuFe3+2(PO4)2(OH)2
IMA status
  • Approved
IMA symbol
Hsl
Discovered
1985
IMA approved
1985
Also known as
  • Hentscheliet
  • IMA1985-057

Where it forms, where it's found

Geological setting

Secondary mineral in silicified barite veins in diorites, gabbros, and ortho- and paragneisses.

Type locality
Point 20.0
  1. Katzenstein
  2. Raidelbach
  3. Lautertal (Odenwald)
  4. Bergstraße
  5. Darmstadt
  6. Hesse
  7. Germany

49.7090°, 8.7283°

20recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark green to greenish black
Streak
Pale green
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.79 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 60 – 70° · 2V calc = 28°
Refractive index
1.843 – 1.945
Surface relief
Very high
Principal indices
nα 1.843 · nβ 1.848 · nγ 1.945
Pleochroism
Weak

X = blue-green; Y = yellow-green or yellowish brown.

Dispersion
relatively strong, r>>v
Extinction
Y = b; X ∧ a = 61(2)° in the obtuse angle of beta; X ≃ [101].
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.1020
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1020 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1020 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 6.984(3) Å · b = 7.786(3) Å · c = 7.266(3) Å
Cell angles
β = 117.68(2) °
Ratio a:b:c
1 : 1.115 : 1.040
Z
2
Twinning

Common, contact twins by rotation around [102], yielding a triangular composite.

Type-locality form

Crystals, characteristically twinned, up to 0.4 mm in diameter.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
40.08%
26FeIronIron255.845111.690
27.98%
29CuCopperCopper163.54663.546
15.92%
15PPhosphorusPhosphorus230.97461.948
15.52%
1HHydrogenHydrogen21.0082.016
0.50%
Total399.190100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • As

Synonyms

  • Hentscheliet
  • IMA1985-057

In other languages

French
hentschélite
German
Hentschelit · IMA 1985-057
Italian
Hentschelite

Classification

Strunz
10th ed.

8.BB.40

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BBWith only medium-sized cations, (OH, etc.):RO4 about 1:1Group
  • 8.BB.40HentscheliteSpecies
Dana
8th ed.

41.10.01.03

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.10(AB)3(XO4)2ZqType
  • 41.10.01Lazulite GroupGroup
  • 41.10.01.03HentscheliteSpecies
CIM

19.2.11

  • 19PhosphatesClass
  • 19.2Phosphates of CuGroup
  • 19.2.11HentscheliteSpecies

Group, growth & confusion

In the same group
5 members

Literature, links & citation

Citations
  1. 1987Sieber, Norbert H. W., Tillmanns, Ekkehart, Medenbach, Olaf (1987) Hentschelite, CuFe2(PO4)2(OH)2, a new member of the lazulite group, and reichenbachite, Cu5(PO4)2(OH)4, a polymorph of pseudomalachite, two new copper phosphate minerals from Reichenbach, Germany. American Mineralogist, 72 (3-4) 404-408
  2. 1987Sieber, N. H. W., Tillmanns, E., Hofmeister, W. (1987) Structure of hentschelite, CuFe2(PO4)2(OH)2, a new member of the lazulite group. Acta Crystallographica Section C Crystal Structure Communications, 43 (10) 1855-1857 doi:10.1107/s0108270187089868DOI: 10.1107/s0108270187089868
  3. 2005(2005) Hentschelite. Handbook of Mineralogy. Mineralogical Society of America
