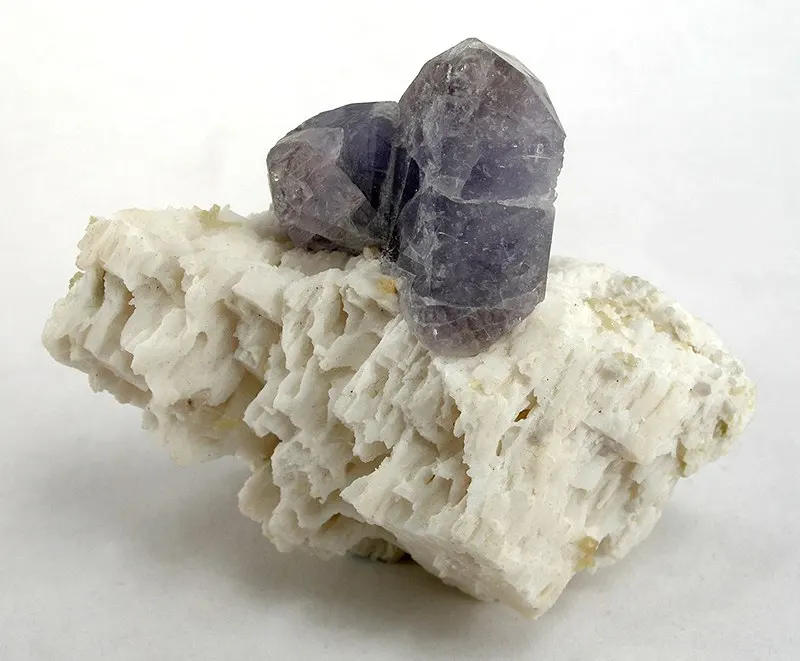

Herderite

CaBe(PO4)F
IMA status
  • Approved
  • Grandfathered
IMA symbol
Hrd
Discovered
1828
Also known as
  • Allogonit
  • Allogonita
  • Allogonite
  • +5 more

Where it forms, where it's found

Geological setting

Complex granitic pegmatites

Type locality
Sauberg Mine
  1. Ehrenfriedersdorf
  2. Erzgebirgskreis
  3. Saxony
  4. Germany

50.6408°, 12.9783°

55recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colourless · pale yellow · greenish-white · colourless in transmitted light.
Cleavage
Imperfect/Fair

On (110), interrupted.

Fracture
Sub-Conchoidal
Density
3.02 g/cm³

Optical

Optical type
Biaxial (-) · 2V calc = 70°
Refractive index
1.556 – 1.62
Surface relief
Moderate
Principal indices
nα 1.556 – 1.592 · nβ 1.578 – 1.61 · nγ 1.589 – 1.62
Dispersion
r > v moderate
Michel-Lévy diagramhighlighted lineδ = 0.0305
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]305 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation305 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 4.81 Å · b = 7.7 Å · c = 9.82 Å
Cell angles
β = 90.1 °
Ratio a:b:c
1 : 1.601 : 2.042
Morphology

Stout prismatic crystals [100] or [001]; thick tabular (001). Commonly pseudo-orthorhombic in aspect, rarely monoclinic; pseudo-hexagonal [001] at times. Also occurs as botryoidal or spheroidal aggregates with a radial-fibrous structure.

Twinning

On (100) or (001) as fishtail contact. Most crystals are twinned; however, some exhibit no outward signs of this morphology.

Comment

Space Group: nd

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen415.99963.996
39.25%
20CaCalciumCalcium140.07840.078
24.58%
15PPhosphorusPhosphorus130.97430.974
18.99%
9FFluorineFluorine118.99818.998
11.65%
4BeBerylliumBeryllium19.0129.012
5.53%
Total163.058100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • H
  • OH

Synonyms

  • Allogonit
  • Allogonita
  • Allogonite
  • Fluor-herderite
  • Glucinit
  • Glucinita
  • Glucinite
  • Herderiet

In other languages

French
herderite
German
Herderit
Italian
Herderite
Japanese
ヘルデル石 · 鉱物
Chinese
磷铍钙石
Russian
гердерит

Classification

Strunz
10th ed.

8.BA.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BAWith small and medium-sized cationsGroup
  • 8.BA.10HerderiteSpecies
Dana
8th ed.

41.05.04.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.05(AB)2(XO4)ZqType
  • 41.05.04Herderite GroupGroup
  • 41.05.04.01HerderiteSpecies
CIM

22.1.10

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.1Phosphates, arsenates or vanadates with fluorideGroup
  • 22.1.10HerderiteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1828Haidinger, W. (1828) On herderite, a new mineral species. Philosophical Magazine and Journal of Science: 4: 1-3.
  2. 1830Breithaupt, A. (1830) Ubersicht des Mineral-System’s. 8vo, Freiberg: 23 (as Allogonite).
  3. 1832Breithaupt, A. (1832) Vollständige Characteristik etc. 2nd. Ed., Dresden: 78 (as Allogonite).
  4. 1884Des Cloizeaux (1884) Sur l'identite optique des cristaux de herderite d'Ehrenfriedersdorf (en Saxe) et de Stoneham (Etat du Maine). Bulletin de la Société française de Minéralogie: 7: 130-134.
  5. 1884Genth, F.A. (1884) On herderite. American Philosophical Society, Philadelphia: 21: 694-699.
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Herderite — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/herderite-1876},
  note      = {Accessed 2026-05-11}
}
