Kintoreite

PbFe3+3(PO4)(PO3OH)(OH)6
IMA status
  • Approved
IMA symbol
Kt
Discovered
1992
IMA approved
1992
Also known as
  • IMA1992-045
  • Kintoreiet
  • Kintoreite-1c

Where it forms, where it's found

Geological setting

Oxidation of primary ore rich in galena, in the presence of solutions with high P/(As + S) ratios.

Type locality
Block 14 opencut
  1. Broken Hill
  2. Broken Hill district
  3. Yancowinna Co.
  4. New South Wales
  5. Australia

-31.9591°, 141.4751°

60recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous to Adamantine crystals · greasy or waxy globules.
Transparency
Transparent
Colour
Cream to yellowish green and brownish yellow.
Streak
Pale yellowish green
Tenacity
brittle
Cleavage
Distinct/Good

On (001)

Density
4.34 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.935 – 1.955
Surface relief
Very high
Principal indices
nω 1.935 – 1.955 · nε 1.935
Pleochroism
Visible

Light yellowish green to medium yellow.

Michel-Lévy diagramhighlighted lineδ = 0.0100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]100 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation100 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#99
Cell parameters
a = 7.2963(5) Å · c = 16.8491(5) Å
Z
3
Type-locality form

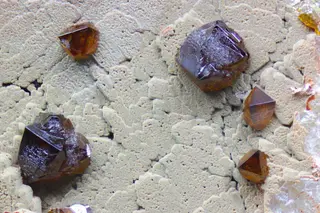

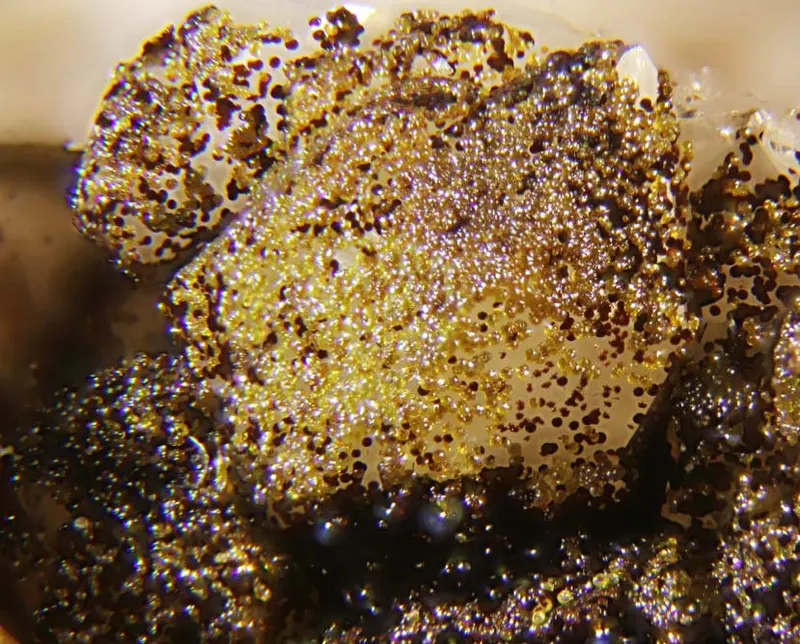

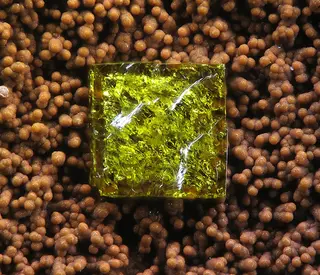

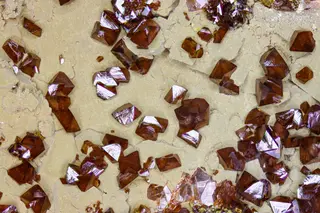

Clusters and coatings of cream to yellowish green rhombohedral crystals up to 2 mm. It also forms waxy, yellowish green globular crusts and hemispheres on other phosphate minerals.

Comment

Date for near endmember composition (Grey et al., 2009)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1415.999223.986
33.54%
82PbLeadLead1207.200207.200
31.03%
26FeIronIron355.845167.535
25.09%
15PPhosphorusPhosphorus230.97461.948
9.28%
1HHydrogenHydrogen71.0087.056
1.06%
Total667.725100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1992-045
  • Kintoreiet
  • Kintoreite-1c

In other languages

German
IMA 1992-045 · Kintoreit
Spanish
Kintoreíta
Italian
Kintoreite
Russian
Кинтореит

Classification

Strunz
10th ed.

8.BL.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BLWith medium-sized and large cations, (OH, etc.):RO4 = 3:1Group
  • 8.BL.10KintoreiteSpecies
Dana
8th ed.

42.07.03.06

  • 42Hydrated Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 42.07(AB)2(XO4)Zq·xH2OType
  • 42.07.03Crandallite GroupGroup
  • 42.07.03.06KintoreiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1995Jambor, J.L., Roberts, A.C. (1995) New mineral names. American Mineralogist: 80: 1073-1077.
  2. 1995Pring, A., Birch, W. D., Dawe, J., Taylor, M., Deliens, M., Walenta, K. (1995) Kintoreite, PbFe3(PO4)2(OH,H2O)6, a new mineral of the jarosite-alunite family, and lusungite discredited. Mineralogical Magazine, 59 (394) 143-148 doi:10.1180/minmag.1995.59.394.14 DOI: 10.1180/minmag.1995.59.394.14
  3. 1996Mandarino, Joseph A. (1996) Abstracts of New Mineral Descriptions. The Mineralogical Record, 27 (4) 301-306
  4. 1997Kharisu,, Taylor, M. R., Bevan, D. J. M., Pring, A. (1997) The crystal structure of kintoreite, PbFe3(PO4)2(OH,H2O)6. Mineralogical Magazine, 61 (404) 123-129 doi:10.1180/minmag.1997.061.404.12 DOI: 10.1180/minmag.1997.061.404.12
  5. 1998Sejkora, J., Čejka, J., Šrein, V., Novotná, M., Ederová, J. (1998) Minerals of the plumbogummite-philipsbornite series from Moldava deposit. Neues Jahrbuch für Mineralogie - Monatshefte, 1998. 145-163
