Lehnerite

Mn2+(UO2)2(PO4)2 · 8H2O
IMA status
  • Approved
IMA symbol
Lh
Discovered
1986
IMA approved
1986
Also known as
  • IMA1986-032
  • Lehneriet
  • Lehnerite (of Mücke)

Where it forms, where it's found

Type locality
Hagendorf South Pegmatite
  1. Hagendorf
  2. Waidhaus
  3. Neustadt an der Waldnaab District
  4. Upper Palatinate
  5. Bavaria
  6. Germany

49.6503°, 12.4597°

1recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
bronze yellow · honey yellow
Streak
pale yellow
Cleavage
Perfect

Perfect on (010); good on (101); less good on (101); poor on (100).

Density
3.50 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 45°
Refractive index
1.599 – 1.607
Surface relief
Moderate
Principal indices
nα 1.599 · nβ 1.607 · nγ 1.607
Pleochroism
Weak

X = Y = light yellow; Z = yellow.

Dispersion
r < v weak
Michel-Lévy diagramhighlighted lineδ = 0.0080
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]80 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation80 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 7.04(2) Å · b = 17.16(4) Å · c = 6.95(2) Å
Cell angles
β = 90.31 °
Ratio a:b:c
1 : 2.438 : 0.987
Z
2
Morphology

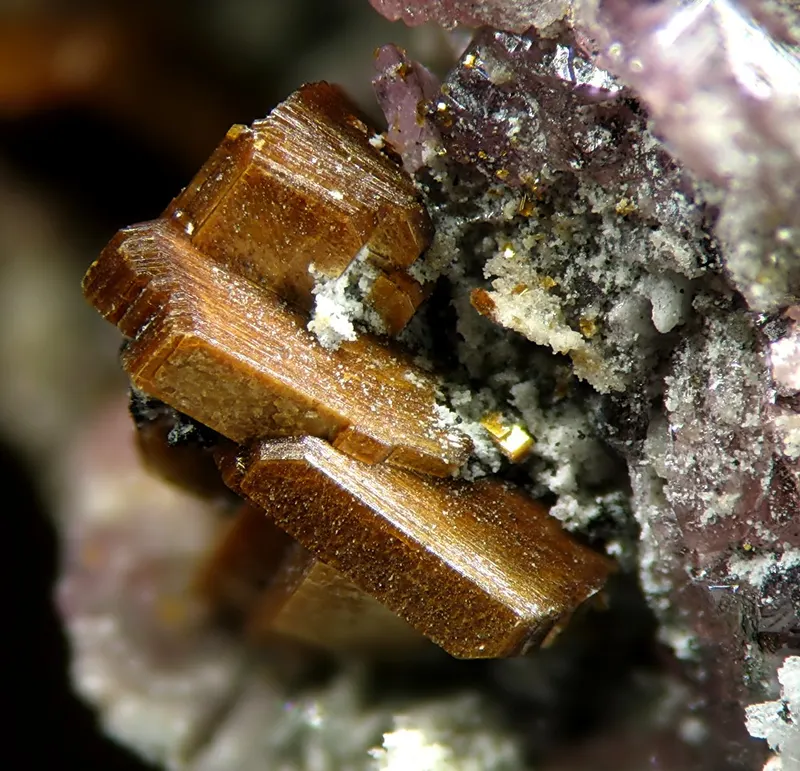

As thin pseudotetragonal crystals

Comment

Space Group: P21/n.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
51.24%
8OOxygenOxygen2015.999319.980
34.44%
15PPhosphorusPhosphorus230.97461.948
6.67%
25MnManganeseManganese154.93854.938
5.91%
1HHydrogenHydrogen161.00816.128
1.74%
Total929.052100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1986-032
  • Lehneriet
  • Lehnerite (of Mücke)

In other languages

German
IMA 1986-032 · Lehnerit
Italian
Lehnerite

Classification

Strunz
10th ed.

8.EB.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.10LehneriteSpecies
Dana
8th ed.

40.2a.16.02

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.16— unnamed intermediate level —Group
  • 40.2a.16.02LehneriteSpecies
CIM

19.11.40

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.40LehneriteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1924Müllbauer, F. (1924) Die Phosphatpegmatite von Hagendorf i. Bayern. (Neue Beobachtungen.) [The phosphate pegmatite of Hagendorf, Bavaria. (New observations.)]. Zeitschrift für Kristallographie, Kristallgeometrie, Kristallphysik, Kristallchemie, 61 (1). 318-336 doi:10.1524/zkri.1924.61.1.318DOI: 10.1524/zkri.1924.61.1.318
  2. 1988Mücke, A. (1988) Lehnerit Mn[UO2/PO4]2.8H2O, ein neues Mineral aus dem Pegmatit von Hagendorf, Oberpfalz. Der Aufschluss: 39(4): 209-217.
  3. 1990Vochten, Renaud (1990) Transformation of chernikovite and sodium autunite into lehnerite. American Mineralogist, 75 (1-2) 221-225
  4. 1990Jambor, John L., Burke, Ernst A. J. (1990) New Mineral Names. American Mineralogist, 75 (11-12) 1431-1437
  5. 2005(2005) Lehnerite. Handbook of Mineralogy. Mineralogical Society of America
