Meta-ankoleite

K(UO2)(PO4) · 3H2O
IMA status
  • Approved
IMA symbol
Mak
IMA approved
1963
Also known as
  • IMA1963-013
  • Meta-ankoleiet

Where it forms, where it's found

Geological setting

Secondary pegmatite mineral.

Type locality
Mungenyi pegmatite
  1. Ankole pegmatite field
  2. Ntungamo
  3. Western Region
  4. Uganda

-0.9722°, 30.1889°

14recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow
Streak
Pale yellow
Cleavage
Perfect

(001); also distinct on (010).

Density
3.54 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.56 – 1.583
Surface relief
Moderate
Principal indices
nω 1.58 – 1.583 · nε 1.56
Pleochroism

Faint - yellow

UV response
Yellow-green (SW & LW)
Michel-Lévy diagramhighlighted lineδ = 0.0215
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]215 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation215 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
P4/nmm
Cell parameters
a = 6.993(10) Å · c = 8.891(5) Å
Z
1
Type-locality form

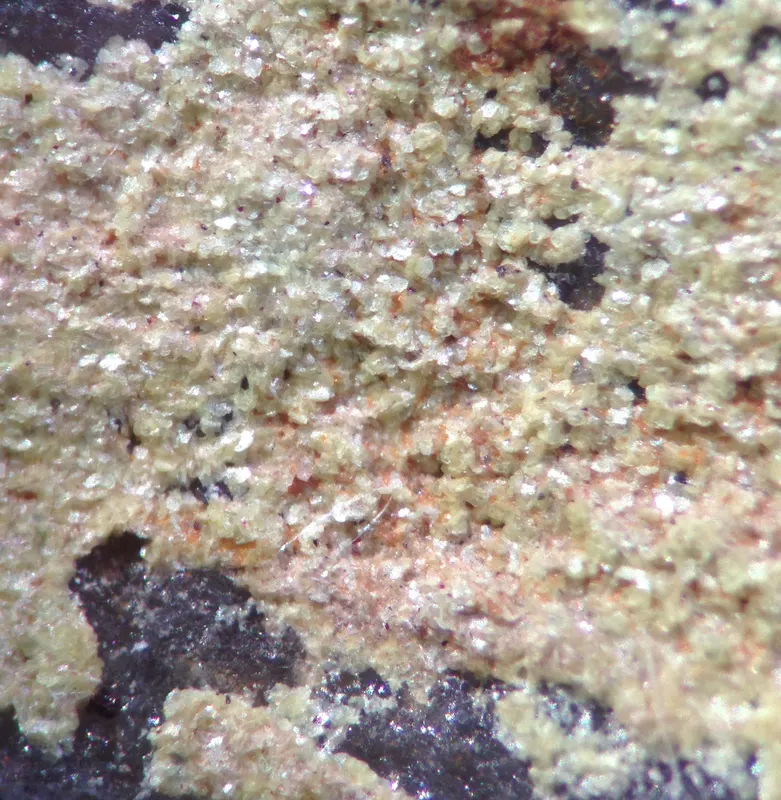

Yellow plates of up to 1 mm in diameter (usually about 0.5 mm) occurring in scaly aggregates.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium1238.029238.029
51.96%
8OOxygenOxygen915.999143.991
31.43%
19KPotassiumPotassium139.09839.098
8.53%
15PPhosphorusPhosphorus130.97430.974
6.76%
1HHydrogenHydrogen61.0086.048
1.32%
Total458.140100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ba

Synonyms

  • IMA1963-013
  • Meta-ankoleiet

In other languages

German
IMA 1963-013 · Meta-Ankoleit
Italian
Meta-ankoleite

Classification

Strunz
10th ed.

8.EB.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.15Meta-ankoleiteSpecies
Dana
8th ed.

40.2a.08.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.08— unnamed intermediate level —Group
  • 40.2a.08.01Meta-ankoleiteSpecies
CIM

19.11.8

  • 19PhosphatesClass
  • 19.11Phosphates of UGroup
  • 19.11.8Meta-ankoleiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1965Ross, Malcolm, Evans, H. T. (1965) Studies of the torbernite minerals (III): Role of the interlayer oxonium, potassium, and ammonium ions, and water molecules. American Mineralogist, 50 (1-2) 1-12
  2. 1966Gallagher, M.J., Atkin, D. (1966) Meta-ankoleïte, hydrated potassium uranyl phosphate. Bulletin of the Geological Survey of Great Britain: 25: 49-54.
  3. 1967Fleischer, Michael (1967) New Mineral Names. American Mineralogist, 52 (3-4) 559-564
  4. 1969Fleischer, Michael (1969) New Mineral Names. American Mineralogist, 54 (1-2) 326-330
  5. 1996Van Haverbeke, Laurent, Vochten, Renaud, Van Springel, Karel (1996) Solubility and spectrochemical characteristics of synthetic chernikovite and meta-ankoleite. Mineralogical Magazine, 60 (402) 759-766 doi:10.1180/minmag.1996.060.402.05 DOI: 10.1180/minmag.1996.060.402.05
