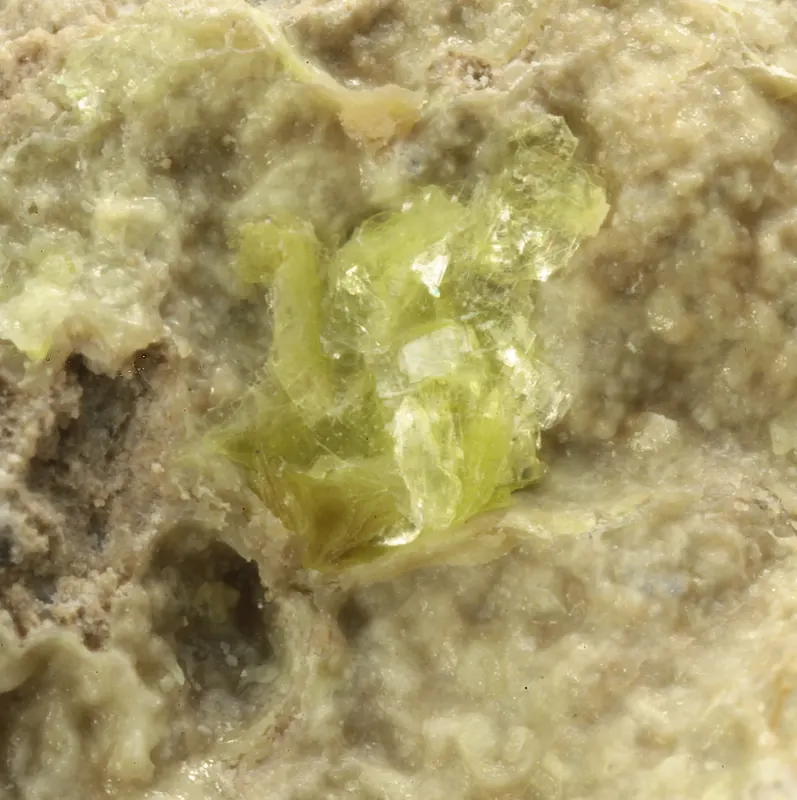

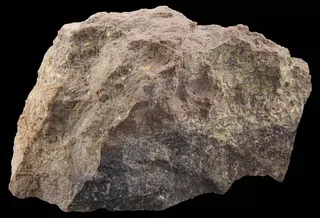

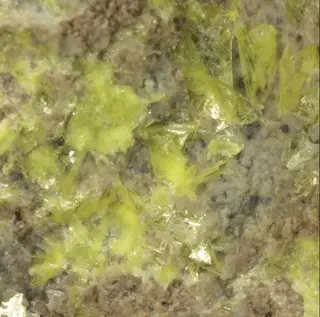

Metaheinrichite

Ba(UO2)2(AsO4)2 · 8H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Mhrc
Discovered
1958
Also known as
  • Metaheinrichiet

Where it forms, where it's found

Type locality
White King Mine
  1. Lakeview
  2. Lake County
  3. Oregon
  4. USA

42.3328°, -120.5208°

23recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
green · yellow
Streak
yellowish white
Cleavage
Perfect

Perfect on (001), Distinct on (100)

Fracture
Irregular/Uneven
Density
4.04 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.608 – 1.641
Surface relief
Moderate
Principal indices
nω 1.637 – 1.641 · nε 1.608 – 1.609
Pleochroism
Visible

O = pale yellow; E = colorless.

UV response
Fluoresces bright green to greenish yellow under SW and LW UV.
Notes

may be anomalously biaxial (-).

Michel-Lévy diagramhighlighted lineδ = 0.0305
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]305 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation305 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21
Cell parameters
a = 7.08 Å · b = 17.7 Å · c = 7.09 Å
Cell angles
β = 90.02 °
Ratio a:b:c
1 : 2.500 : 1.001
Unit cell volume
885.23 ų
Z
2
Morphology

.

Type-locality form

tabular (001) crystals of square or rectangular outline

Comment

expected crystal-data from synthetic meta-uranocircite I,

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium2238.029476.058
43.30%
8OOxygenOxygen2015.999319.980
29.11%
33AsArsenicArsenic274.922149.844
13.63%
56BaBariumBarium1137.327137.327
12.49%
1HHydrogenHydrogen161.00816.128
1.47%
Total1099.337100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Metaheinrichiet

In other languages

German
Metaheinrichit
Italian
Metaheinrichite
Chinese
变钡砷铀云母

Classification

Strunz
10th ed.

8.EB.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.EUranyl phosphates and arsenatesDivision
  • 8.EBUO2:RO4 = 1:1Group
  • 8.EB.10MetaheinrichiteSpecies
Dana
8th ed.

40.2a.04.02

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.2aAB2(XO4)2·xH2O, containing (UO2)2+Type
  • 40.2a.04— unnamed intermediate level —Group
  • 40.2a.04.02MetaheinrichiteSpecies
CIM

20.7.11

  • 20Arsenates (also arsenates with phosphate, but without other anions)Class
  • 20.7Arsenates of UGroup
  • 20.7.11MetaheinrichiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1958Gross, E. B., Corey, A. S., Mitchell, R. S., Walenta, K. (1958) Heinrichite and metaheinrichite, hydrated barium uranyl arsenate minerals. American Mineralogist, 43 (11-12) 1134-1143
  2. 1965Walenta, Kurt (1965) Beiträge zur Kenntnis seltener Arsenatmineralien unter besonderer Berücksichtigung von Vorkommen des Schwarzwaldes. 2. Folge [Rare arsenate minerals with special consideration of occurrences in the Black Forest. Part II]. Mineralogy and Petrology, 9 (3). 252-282 doi:10.1007/bf01128088DOI: 10.1007/bf01128088
  3. 2005Locock, A. J., Burns, P. C., Flynn, T. M. (2005) Structures of strontium- and barium-dominant compounds that contain the autunite-type sheet. The Canadian Mineralogist, 43 (2) 721-733 doi:10.2113/gscanmin.43.2.721 DOI: 10.2113/gscanmin.43.2.721
  4. 2016Anthony, John W., Bideaux, Richard A., Bladh, Kenneth W., Nichols, Monte C. - Eds. (2016) Handbook of Mineralogy. https://www.handbookofmineralogy.org/
  5. 2021(2021) Metaheinrichite. Handbook of Mineralogy. Mineralogical Society of America
