Manganokhomyakovite

Na12Sr3Ca6Mn3Zr3W(Si25O73)(O,OH,H2O)3(Cl,OH)2
IMA status
  • Approved
IMA symbol
Mkmy
Also known as
  • IMA1998-043
  • Manganokhomyakoviet

Where it forms, where it's found

Geological setting

Miarolitic cavities in nepheline syenite.

Type locality
Poudrette quarry (De-Mix quarry
  1. Demix quarry
  2. Uni-Mix quarry
  3. Carrière Mont Saint-Hilaire
  4. MSH)
  5. Mont Saint-Hilaire
  6. La Vallée-du-Richelieu RCM
  7. Montérégie
  8. Québec
  9. Canada

45.5628°, -73.1417°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous.
Transparency
Transparent · Translucent
Colour
Orange to orange-red
Streak
White
Tenacity
brittle
Cleavage
None Observed

None(?)

Fracture
Irregular/Uneven
Density
3.13 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.626 – 1.629
Surface relief
Moderate
Principal indices
nω 1.629 · nε 1.626
Luminescence
Non-fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0030
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]30 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation30 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R3m
Cell parameters
a = 14.282 Å · b = 30.12 Å
Unit cell volume
5320 ų
Z
3
Type-locality form

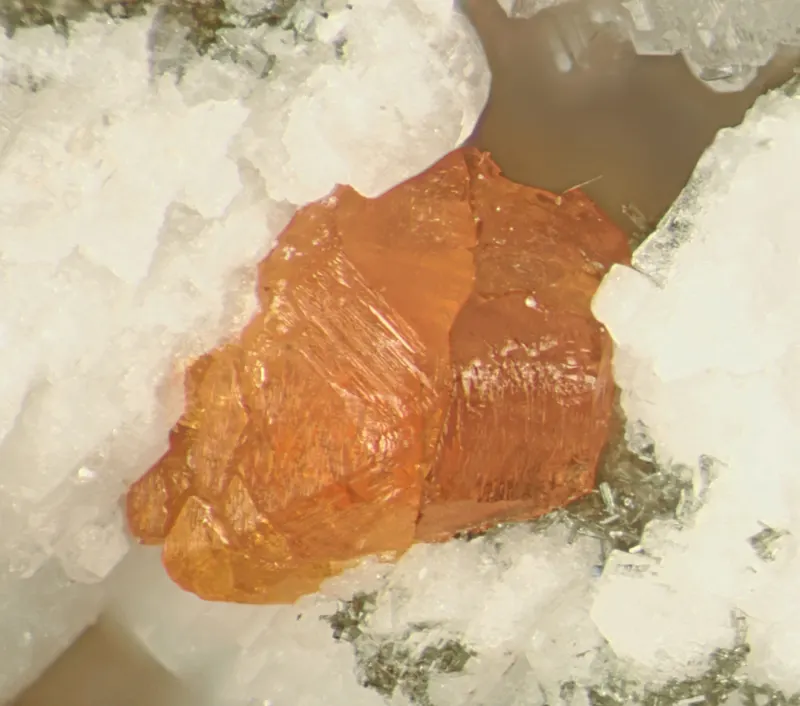

Orange to orange-red, transparent to translucent, pseudo-octahedral crystals up to 5 mm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen8415.9991343.916
38.08%
14SiSiliconSilicon2528.085702.125
19.89%
11NaSodiumSodium1222.990275.880
7.82%
40ZrZirconiumZirconium391.224273.672
7.75%
38SrStrontiumStrontium387.620262.860
7.45%
20CaCalciumCalcium640.078240.468
6.81%
74WTungstenTungsten1183.840183.840
5.21%
25MnManganeseManganese354.938164.814
4.67%
17ClChlorineChlorine235.45070.900
2.01%
1HHydrogenHydrogen111.00811.088
0.31%
Total3529.563100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • K
  • Nb
  • Fe

Synonyms

  • IMA1998-043
  • Manganokhomyakoviet

In other languages

German
IMA 1998-043 · Manganokhomyakovit
Italian
Manganokhomyakovite

Classification

Strunz
10th ed.

9.CO.10

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CO[Si9O27]18- 9-membered ringsGroup
  • 9.CO.10ManganokhomyakoviteSpecies
Dana
8th ed.

64.01.02.06

  • 64Cyclosilicates Rings with Other Anions and Insular Silicate GroupsClass
  • 64.01Rings with Other Anions and Insular Silicate Groups with mixed ring typesType
  • 64.01.02— unnamed intermediate level —Group
  • 64.01.02.06ManganokhomyakoviteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1999Johnsen, Ole, Gault, Robert A., Grice, Joel D., Ercit, T. Scott (1999) Khomyakovite and manganokhomyakovite, two new members of the eudialyte group from Mont Saint-Hilaire, Quebec, Canada. The Canadian Mineralogist, 37 (4) 893-899
  2. 2021(2021) Manganokhomyakovite. Handbook of Mineralogy. Mineralogical Society of America
