Manganoschafarzikite

MnSb2O4
IMA status
  • Approved
IMA symbol
Msfz
IMA approved
2023
Also known as
  • Manganoschafarzikiet

Where it forms, where it's found

Geological setting

originally derived by precipitation from metal-enriched volcanogenic solutions on a shallow ocean carbonate floor, and subsequently subject to metamorphism and metasomatic alteration

Type locality
Långban Mine
  1. Långban Ore District
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8554°, 14.2648°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
dark reddish-brown to black
Streak
yellowish brown to dark brown
Tenacity
brittle
Cleavage
Distinct/Good

distinct/good on (110)

Fracture
Irregular/Uneven · Conchoidal
Density
5.37 g/cm³

Optical

Pleochroism
Non-pleochroic
Optical colour
greyish-white in plane-polarized light
Bireflectance
weakly bireflectant
Internal reflections
dark brown to red
Reflectance R%
(15.4,14.1) 470, (14.7,13.6) 546, (14.4,13.4) 589, (14.1,13.2) 650
Reflected-light panel
14.7 %anisotropic · dual curve
Specimen sRGB 141, 99, 54
White reference100 % reflector under same lamp
R₁ R₂
Mode
Bireflectance
weakly bireflectant
Reflected colour
greyish-white in plane-polarized light
Internal reflections
dark brown to red

Crystallography

Crystal system
Tetragonal
Space group
P42/mbc
Cell parameters
a = 8.65159(8) Å · c = 5.97175(8) Å
Z
4
Type-locality form

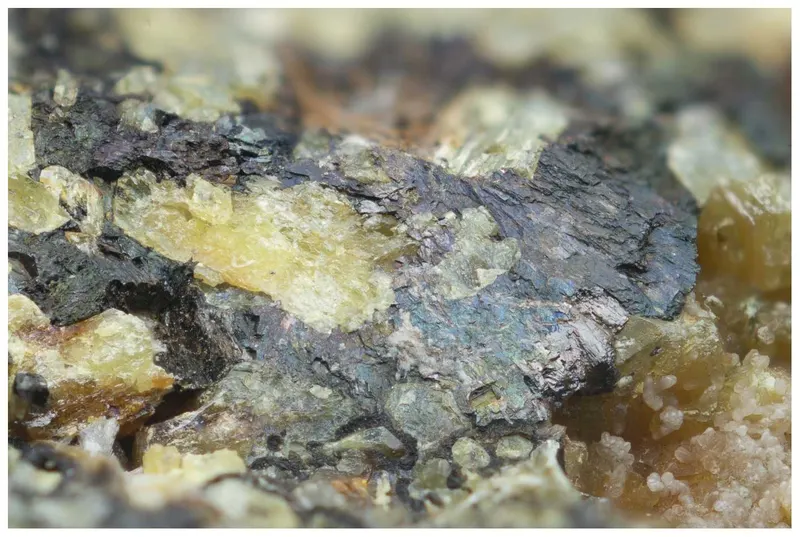

platy aggregates up to 5 mm, with a conspicuous peacock tarnish on crystal surfaces

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony2121.760243.520
67.19%
8OOxygenOxygen415.99963.996
17.65%
25MnManganeseManganese154.93854.938
15.16%
Total362.454100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Manganoschafarzikiet

In other languages

German
IMA 2022-129 · Manganoschafarzikit

Classification

Strunz
10th ed.

4.JA.20

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JAArsenites, antimonites, bismuthites; without additional anions, without H2OGroup
  • 4.JA.20ManganoschafarzikiteSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 2023Bosi, Ferdinando, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2023) Newsletter 72. Mineralogical Magazine, 87 (3) 512-518 doi:10.1180/mgm.2023.21DOI: 10.1180/mgm.2023.21
  2. 2024Holtstam, Dan; Langhof, Jörgen; Friis, Henrik; Karlsson, Andreas; Erambert, Muriel (2024) Igelströmite, Fe3+(Sb3+Pb2+)O4, and manganoschafarzikite, Mn2+Sb3+2O4, two new members of the newly established minium group, from the Långban Mn–Fe deposit, Värmland, Sweden. European Journal of Mineralogy, 36 (2). 311-322 doi:10.5194/ejm-36-311-2024DOI: 10.5194/ejm-36-311-2024
