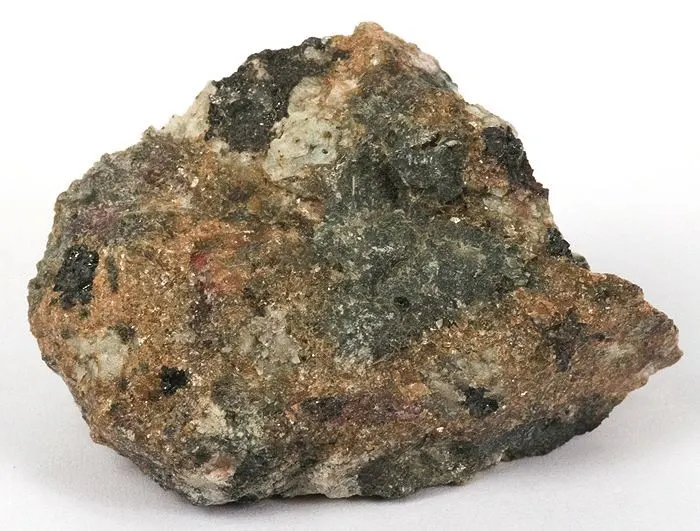

Nelenite

Mn2+16As3+3Si12O36(OH)17
IMA status
  • Approved
IMA symbol
Nln
Discovered
1984
Also known as
  • Ferroschallerite
  • IMA1982-011
  • Neleniet

Where it forms, where it's found

Type locality
Trotter Mine
  1. Franklin Mine
  2. Franklin
  3. Sussex County
  4. New Jersey
  5. USA

41.1178°, -74.5875°

5recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Resinous
Transparency
Transparent
Colour
Light to medium brown
Streak
Light brown
Cleavage
Perfect

Parallel to (0001)

Cleavage plates are flat and highly lustrous, and it is this quality and appearance of the cleavage that immediately distinguishes nelenite from the other members of the friedelite group, which have cleavage fragments with slightly or grossly warped and curved surfaces.

Density
3.46 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.7 – 1.718
Surface relief
High
Principal indices
nω 1.718 · nε 1.700
Pleochroism
Visible

with e = colourless and w = light brown.

UV response
None
Notes

May appear biaxial.

Michel-Lévy diagramhighlighted lineδ = 0.0180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]180 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation180 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
R-3m
Cell parameters
a = 13.418(5) Å · c = 85.48(8) Å
Z
2
Type-locality form

Coarse granular, to 4.5 cm; massive

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese1654.938879.008
38.12%
8OOxygenOxygen5315.999847.947
36.77%
14SiSiliconSilicon1228.085337.020
14.62%
33AsArsenicArsenic374.922224.766
9.75%
1HHydrogenHydrogen171.00817.136
0.74%
Total2305.877100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Zn
  • Mg
  • Ca
  • H2O

Synonyms

  • Ferroschallerite
  • IMA1982-011
  • Neleniet

In other languages

French
nelenite
German
IMA 1982-011 · Nelenit
Italian
Nelenite
Arabic
نيلينايت · نيلينيت

Classification

Strunz
10th ed.

9.EE.15

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.15NeleniteSpecies
Dana
8th ed.

72.04.1b.03

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.04Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with 4-, 6-, and 12-membered ringsType
  • 72.04.1b— unnamed intermediate level —Group
  • 72.04.1b.03NeleniteSpecies
CIM

17.7.13

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.13NeleniteSpecies

Group, growth & confusion

In the same group
5 members

Literature, links & citation

Citations
  1. 1984Dunn, Pete J., Peacor, Donald R., Simmons, William B. (1984) Lennilenapeite, the Mg-analogue of stilpnomelane, and chemical data on other stilpnomelane species from Franklin, New Jersey. The Canadian Mineralogist, 22 (2) 259-263
  2. 1984Dunn, Pete J., Peacor, Donald R. (1984) Nelenite, a manganese arsenosilicate of the friedelite group, polymorphous with schallerite, from Franklin, New Jersey. Mineralogical Magazine, 48 (347) 271-275 doi:10.1180/minmag.1984.048.347.13 DOI: 10.1180/minmag.1984.048.347.13
  3. 1985Dunn, Pete J., Fleischer, Michael, Langley, Richard H., Shigley, James E., Zilczer, Janet A. (1985) New mineral names. American Mineralogist, 70 (7-8) 871-881
  4. 1995Dunn, Pete J. (1995) Franklin and Sterling Hill, New Jersey: The world's most magnificent mineral deposits Vol. 4. The Franklin-Ogdensburg Mineralogical Society.
  5. 2001(2001) Nelenite. Handbook of Mineralogy. Mineralogical Society of America
