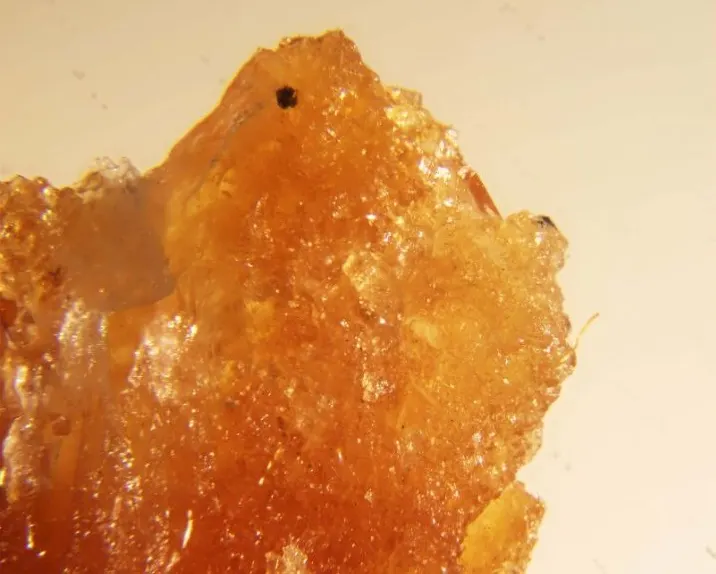

Schallerite

Mn2+16As3+3Si12O36(OH)17
IMA status
  • Approved
  • Grandfathered
IMA symbol
Slr
Discovered
1924
Also known as
  • Schalleriet
  • Shallerite

Where it forms, where it's found

Geological setting

Veinlets in willemite-franklinite ore, also with rhodonite.

Type locality
Franklin Mine
  1. Franklin
  2. Sussex County
  3. New Jersey
  4. USA

41.1158°, -74.5875°

10recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789104.5 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Light brown · reddish brown
Streak
Pale brown
Tenacity
brittle
Cleavage
Perfect

(0001)

Density
3.37 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.679 – 1.704
Surface relief
High
Principal indices
nω 1.704 · nε 1.679
Birefringence
0.025
Michel-Lévy diagramhighlighted lineδ = 0.0250
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]250 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation250 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#84
Cell parameters
a = 13.43 Å · c = 14.31 Å
Z
2
Morphology

Tapered pseudohexagonal horizontally striated crystals with pedion.

Type-locality form

Massive, resembling bustamite or rhodochrosite.

Comment

Space group uncertain

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese1654.938879.008
38.12%
8OOxygenOxygen5315.999847.947
36.77%
14SiSiliconSilicon1228.085337.020
14.62%
33AsArsenicArsenic374.922224.766
9.75%
1HHydrogenHydrogen171.00817.136
0.74%
Total2305.877100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Zn
  • Mg
  • Ca
  • Cl
  • H2O

Synonyms

  • Schalleriet
  • Shallerite

In other languages

German
Schallerit
Italian
Schallerite

Classification

Strunz
10th ed.

9.EE.15

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.15SchalleriteSpecies
Dana
8th ed.

72.04.1a.03

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.04Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with 4-, 6-, and 12-membered ringsType
  • 72.04.1a— unnamed intermediate level —Group
  • 72.04.1a.03SchalleriteSpecies
CIM

17.7.12

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.12SchalleriteSpecies

Group, growth & confusion

In the same group
5 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1925Gage, R. B., Larsen, Esper S., Vassar, Helen E. (1925) Schallerite, a new arseno-silicate mineral from Franklin Furnace, New Jersey. American Mineralogist, 10 (1) 9-11
  2. 1930Bauer, L. H., Berman, Harry (1930) Notes on some Franklin minerals. American Mineralogist, 15 (8) 340-348
  3. 1953Frondel, Clifford, Bauer, L. H. (1953) Manganpyrosmalite and its polymorphic relation to friedelite and schallerite. American Mineralogist, 38 (9-10) 755-760
  4. 1956Hey, Max H. (1956) The empirical unit cell contents of the friedelite group. American Mineralogist, 41 (1-2) 134-138
  5. 1981Dunn, Pete J., Peacor, Donald R., Nelen, Joseph A., Norberg, Julie A. (1981) Crystal-chemical data for schallerite, caryopilite and friedelite from Franklin and Sterling Hill, New Jersey. American Mineralogist, 66 (9-10) 1054-1062
