Pyrosmalite-(Mn)

Mn2+8Si6O15(OH,Cl)10
IMA status
  • Approved
  • Grandfathered
IMA symbol
Pys-Mn
Discovered
1953
Also known as
  • Manganpyrosmalit
  • Manganpyrosmalita
  • Manganpyrosmalite
  • +2 more

Where it forms, where it's found

Type locality
Sterling Mine
  1. Sterling Hill
  2. Ogdensburg
  3. Sussex County
  4. New Jersey
  5. USA

41.0836°, -74.6047°

27recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Blackish green · pistachio-green · liver-brown · brown · gray
Cleavage
Perfect

Perfect on (0001), (1010) less perfect.

Density
3.06 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.631 – 1.67
Surface relief
High
Principal indices
nω 1.669 – 1.670 · nε 1.631
Pleochroism
Visible

O = greenish yellow; E = colorless.

Michel-Lévy diagramhighlighted lineδ = 0.0385
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]385 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation385 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
P-3m1
Cell parameters
a = 13.422(5) Å · c = 7.165(2) Å
Z
2
Morphology

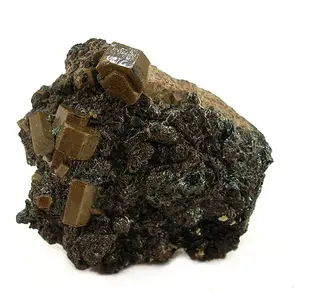

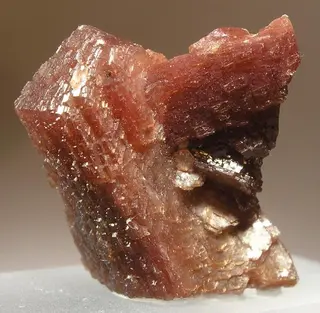

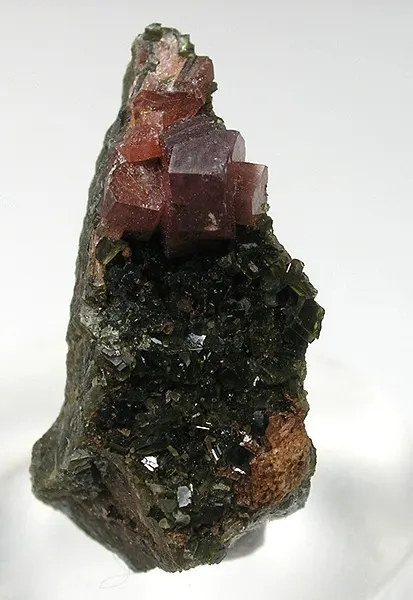

Thick prismatic hexagonal crystals, to 4 cm, in subparallel groups.

Type-locality form

Granular veinlets in franklinite ore. Individual grains to about 0.3 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese854.938439.504
32.02%
8OOxygenOxygen2515.999399.975
29.14%
17ClChlorineChlorine1035.450354.500
25.83%
14SiSiliconSilicon628.085168.510
12.28%
1HHydrogenHydrogen101.00810.080
0.73%
Total1372.569100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • As
  • Zn
  • Mg
  • Ca
  • H20

Synonyms

  • Manganpyrosmalit
  • Manganpyrosmalita
  • Manganpyrosmalite
  • Pyrosmaliet-(Mn)
  • Pyrosmalit-(Mn)

In other languages

German
Pyrosmalith-(Mn)
Italian
Brokenhillite · Manganopirosmalite · Manganpyrosmalite · Pirosmalite- · pirosmalite-(Mn)

Classification

Strunz
10th ed.

9.EE.10

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.10Pyrosmalite-(Mn)Species
Dana
8th ed.

72.04.1a.02

  • 72Phyllosilicates Two-dimensional Infinite Sheets with Other Than Six-membered RingsClass
  • 72.04Two-Dimensional Infinite Sheets with Other Than Six-Membered Rings with 4-, 6-, and 12-membered ringsType
  • 72.04.1a— unnamed intermediate level —Group
  • 72.04.1a.02Pyrosmalite-(Mn)Species
CIM

17.3.14

  • 17Silicates Containing other AnionsClass
  • 17.3Silicates with chloride (including aluminosilicates)Group
  • 17.3.14Pyrosmalite-(Mn)Species

Group, growth & confusion

In the same group
5 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1953Frondel, Clifford, Bauer, L. H. (1953) Manganpyrosmalite and its polymorphic relation to friedelite and schallerite. American Mineralogist, 38 (9-10) 755-760
  2. 1956Hey, Max H. (1956) The empirical unit cell contents of the friedelite group. American Mineralogist, 41 (1-2) 134-138
  3. 1956Hutton, C. Osborne (1956) Manganpyrosmalite, bustamite, and ferroan johannsenite from Broken Hill, New South Wales, Australia. American Mineralogist, 41 (7-8) 581-591
  4. 1964Kayupova, M.M. (1964) Pyrosmalite from the Dzhumart and Ushkatyn deposits, central Kazakhstan. Doklady Akademii Nauk SSSR Earth Science Sections, 159, 82-85.
  5. 1968Kashaev, A.A. (1968) The crystal structure of pyrosmalite. Soviet Physics - Crystallography, 12, 923-924.
