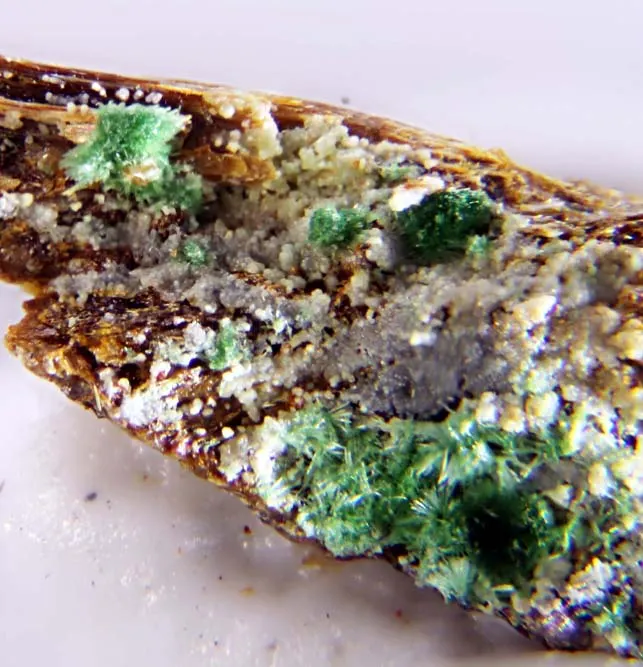

Nullaginite

Ni2(CO3)(OH)2
IMA status
  • Approved
IMA symbol
Nlg
Discovered
1978
IMA approved
1978
Also known as
  • IMA1978-011
  • Nullaginiet

Where it forms, where it's found

Geological setting

Nickel-rich assemblage in shears in serpentinized peridotite.

Type locality
Otway Ni deposit
  1. Nullagine
  2. East Pilbara Shire
  3. Western Australia
  4. Australia

-21.7361°, 120.0778°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101.5 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Green
Tenacity
sectile
Fracture
Irregular/Uneven
Density
3.56 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.67 – 1.78
Surface relief
High
Principal indices
nα 1.67 · nβ 1.78 · nγ 1.78
Birefringence
0.11
Dispersion
r < v perceptible
UV response
Not fluorescent in UV.
Michel-Lévy diagramhighlighted lineδ = 0.1100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1100 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1100 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#14
Cell parameters
a = 9.2363 Å · b = 12.0016 Å · c = 3.0912 Å
Cell angles
β = 90.48 °
Ratio a:b:c
1 : 1.299 : 0.335
Z
4
Type-locality form

Nodular grains and cross-fibre veinlets.

Comment

P21/*

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
28NiNickelNickel258.693117.386
55.53%
8OOxygenOxygen515.99979.995
37.84%
6CCarbonCarbon112.01112.011
5.68%
1HHydrogenHydrogen21.0082.016
0.95%
Total211.408100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1978-011
  • Nullaginiet

In other languages

German
Nullaginit
Italian
Nullaginite

Classification

Strunz
10th ed.

5.BA.10

  • 5CarbonatesClass
  • 5.BCarbonates with additional anions, without H2ODivision
  • 5.BAWith Cu, Co, Ni, Zn, Mg, MnGroup
  • 5.BA.10NullaginiteSpecies
Dana
8th ed.

16a.03.02.01

  • 16aAnhydrous Carbonates Containing Hydroxyl or HalogenClass
  • 16a.03(AB)2(XO3)ZqType
  • 16a.03.02Malachite GroupGroup
  • 16a.03.02.01NullaginiteSpecies
CIM

11.14.3

  • 11CarbonatesClass
  • 11.14Carbonates of Co and NiGroup
  • 11.14.3NullaginiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1981Nickel, E. H., Berry, L. G. (1981) The new mineral nullaginite and additional data on the related minerals rosasite and glaukosphaerite. The Canadian Mineralogist, 19 (2) 315-324
  2. 1982Fleischer, Michael, Chao, George Y., Mandarino, Joseph A. (1982) New mineral names. American Mineralogist, 67 (7-8) 854-860
  3. 2005(2005) Nullaginite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2006Frost, Ray L. (2006) A Raman spectroscopic study of selected minerals of the rosasite group. Journal of Raman Spectroscopy, 37 (9) 910-921 doi:10.1002/jrs.1521DOI: 10.1002/jrs.1521
  5. 2006Perchiazzi, Natale; Merlino, Stefano (2006) The malachite-rosasite group: crystal structures of glaukosphaerite and pokrovskite. European Journal of Mineralogy, 18 (6). 787-792 doi:10.1127/0935-1221/2006/0018-0787DOI: 10.1127/0935-1221/2006/0018-0787
