Potassic-mangani-leakeite

KNa2(Mg2Mn3+2Li)Si8O22(OH)2
IMA status
  • Approved
IMA symbol
Pmlk
Discovered
1993
Also known as
  • IMA1992-032
  • Kornit
  • Kornita
  • +2 more

Where it forms, where it's found

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106 – 7/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Dark red to brownish-lilac
Streak
n.d.
Tenacity
brittle
Cleavage
Distinct/Good

Parallel to [001]

Density
3.15 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 88 – 92° · 2V calc = 88°
Refractive index
1.654 – 1.696
Surface relief
High
Principal indices
nα 1.654 · nβ 1.675 · nγ 1.696
Pleochroism
Visible

X = pink, Y = dark red, Z = orange-red

Dispersion
r < v distinct
Extinction
Z = b, Y : c = 60-65° (in obtuse angle β)
Luminescence
Nonfluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0420
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]420 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation420 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 9.9603(17) Å · b = 17.830(3) Å · c = 5.3056(9) Å
Cell angles
β = 105.275(3) °
Ratio a:b:c
1 : 1.790 : 0.533
Unit cell volume
909 ų
Z
2
Type-locality form

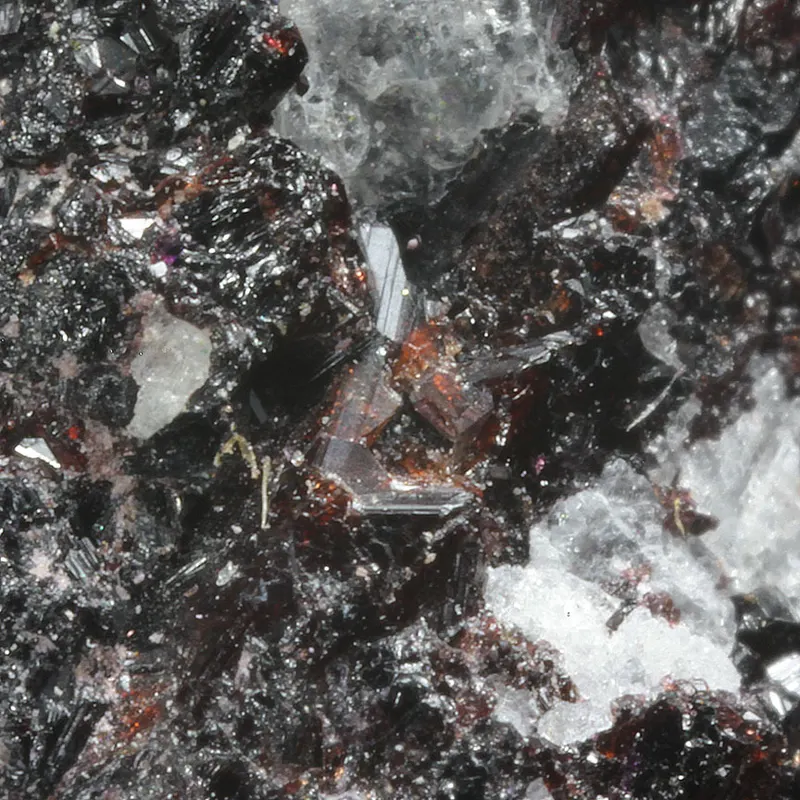

Bundles of fibers (5-20 µm in diameter), often bent, with a maximum fiber length < 200 µm. Dark red 'felt' rims around hennomartinite.

Comment

Cell parameters from Danisi and Armbruster (2017)

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2415.999383.976
44.59%
14SiSiliconSilicon828.085224.680
26.09%
25MnManganeseManganese254.938109.876
12.76%
12MgMagnesiumMagnesium224.30548.610
5.64%
11NaSodiumSodium222.99045.980
5.34%
19KPotassiumPotassium139.09839.098
4.54%
3LiLithiumLithium16.9406.940
0.81%
1HHydrogenHydrogen21.0082.016
0.23%
Total861.176100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1992-032
  • Kornit
  • Kornita
  • Kornite
  • Potassic-mangani-leakeiet

In other languages

German
IMA 1992-032 · Kalium-Mangani-Leakeit
Italian
kornite · potassic-mangani-leakeite

Classification

Strunz
10th ed.

9.DE.25

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DEInosilicates with 2-periodic double chains, Si4O11; ClinoamphibolesGroup
  • 9.DE.25Potassic-mangani-leakeiteSpecies
Dana
8th ed.

66.01.3c.13

  • 66Inosilicates Double-width, Unbranched Chains, (w=2)Class
  • 66.01Amphiboles - Mg-Fe-Mn-Li subgroupType
  • 66.01.3c— unnamed intermediate level —Group
  • 66.01.3c.13Potassic-mangani-leakeiteSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. Mineralogist, 44, 1-21.
  2. 1993Armbruster, Thomas, Oberhänsli, Roland, Bermanec, Vladimir, Dixon, Roger D. (1993) Hennomartinite and kornite, two new Mn3+ rich silicates from the Wessels Mine, Kalahari, South Africa. Schweizerische Mineralogische und Petrographische Mitteilungen: 73: 349-355.
  3. 1997Leake, B. E.; Woolley, A. R.; Arps, C. E. S.; Birch, W. D.; Gilbert, M. C.; Grice, J. D.; Hawthorne, F. C.; Kato, A.; Kisch, H. J.; Krivovichev, V. G.; et al. (1997) Nomenclature of amphiboles: Report of the Subcommittee on Amphiboles of the International Mineralogical Association, Commission on New Minerals and Mineral Names. American Mineralogist, 82. 1019-1037
  4. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  5. 1998Mandarino, Joseph A. (1998) The Second List of Additions and Corrections to the Glossary of Mineral Species (1995) - The Amphibole Group. The Mineralogical Record, 29 (3) 169-174
